SPECIFICATIONS

  • Model

    CXD

  • Rated Load

    2T

  • Lifting Height

    210MM

DESCRIPTIONS

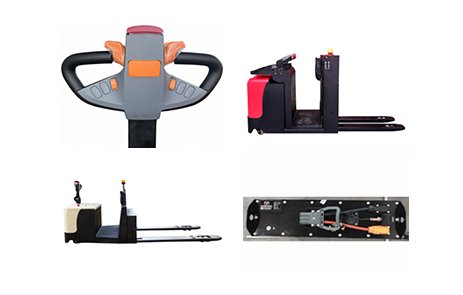

This stand-on low-level order picker has a 2000kg rated load and 85–210mm lifting height, powered by an AC drive system and USA CURTIS control. It features a vertical drive system, electronic steering, and integrated low-noise hydraulics, with electromagnetic regenerative braking and body shock absorption. Safety systems include stepless speed regulation, multiple controller protection, a casual backrest with emergency brake, and automatic corner deceleration. It supports optional 24V lead-acid/lithium batteries and non-standard OEM, operating at ≤70dB(A) for efficient order picking operations.

1

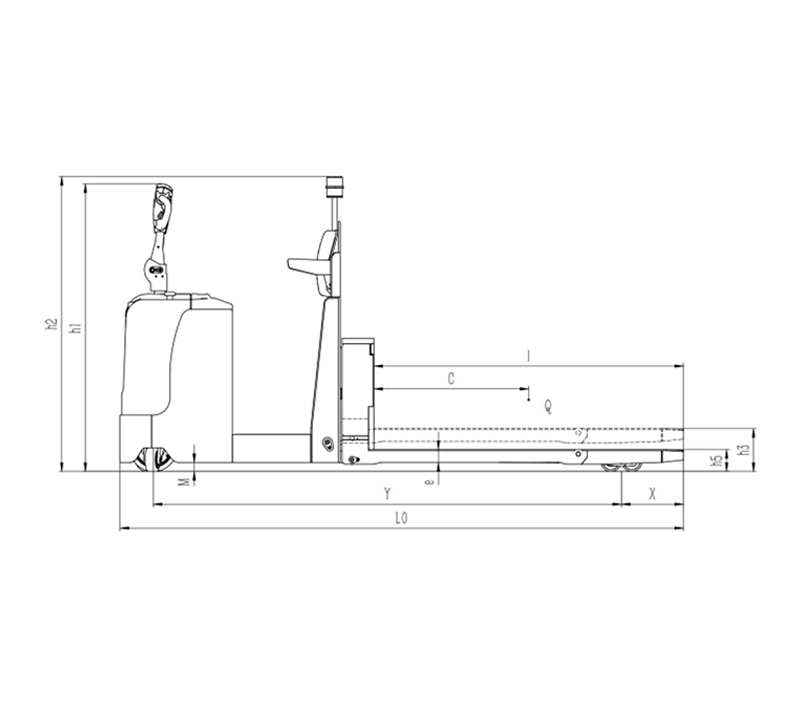

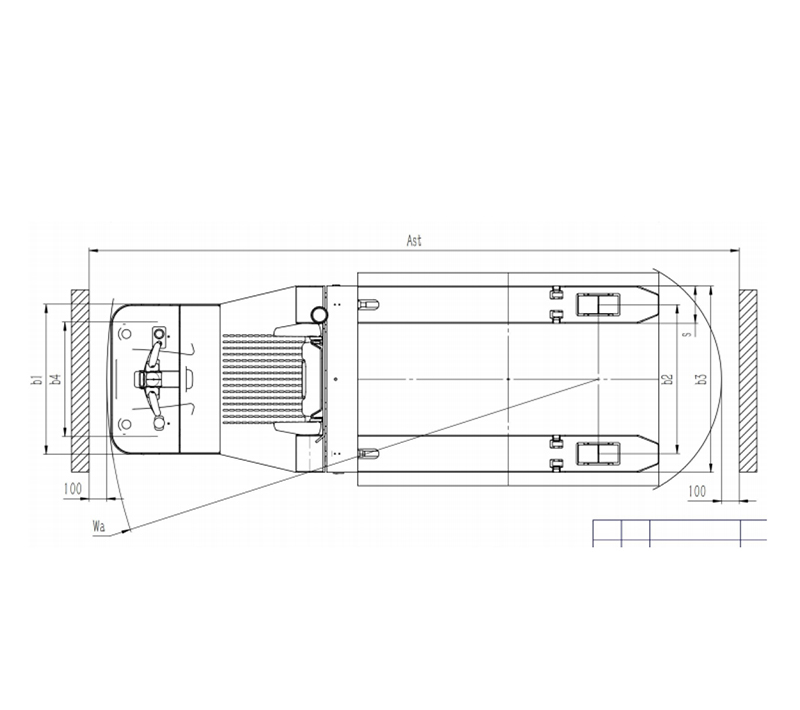

TECHNICAL PARAMETERS

2 3
Model
CXD20A
Type of power
Lead-acid battery
Driving type
Stand-on type
Rated load   Q(kg)2000
Lifting height  h3(mm)235
Overall length  L (mm)3095
Overall width  b1(mm)850
Fork dimensionss/e/l(mm)70(80)/210/1700
Outside width of forksb3(mm)1050
Height of rear tail plate off the groundm(mm)50
Height of fork off the ground(min)h5(mm)120
The height of the strobe warning light off the groundh2(mm)1620
Height of operating handle(max/min)h1(mm)1580/1190
Battery voltage/capacityV/Ah24/210
Weight of batterykg190
Vehicle weight(including battery)kg1220
Driving motor powerkw1.6
ifting motor powerkw0.8
Tire
Polyurethane
Dimensions of drive wheelmmφ230x75
Dimensions of bear wheelmm85*70
Dimensions of balance wheelmmφ130x55
Number of wheels (front/back)(x=drive wheel)mm4/2-1x
Front wheel trackb2(mm)840
Rear wheel trackb4(mm)645
WheelbaseY(mm)2570
Load CenterC(mm)850
Front OverhangX(mm)342
Tum radiusWa(mm)2775
Stacking channel width,pallet 1700X1200(1700 vertical)Ast(mm)3670
Full load axe load,drive side/bear sidekg1245/1795
No load axe load,drive side/bear sidekg855/365
Driving speed,full load/no loadkm/h4.0/5.0
Lifting speed,full load/no loadmm/s25/30
Descent speed,full load/no loadmm/s29/16
Maximum climbing,full load/no load%3.5/8
Braking typeElectromagnetic brake
Control mode
Mosfet control
Vehicle NoisedB(A)≤70
