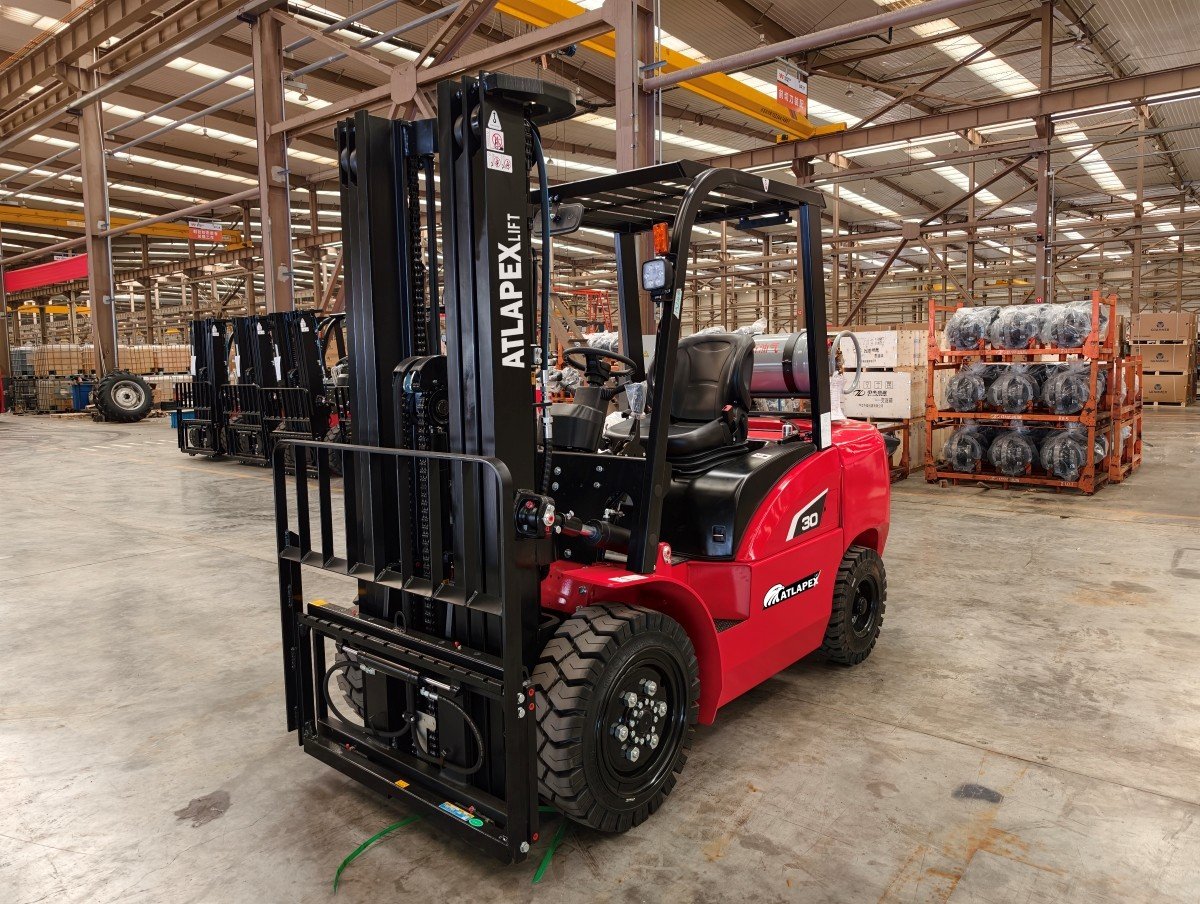

ATLAPEX INDUSTRY brand-new 3-ton LPG & gasoline dual fuel forklift, model CPY30, engineered to deliver powerful, flexible, cost-efficient material handling solutions for warehouses, logistics yards, manufacturing plants, and cargo terminals worldwide.

Superior Dual-Fuel Power System

This 3-ton counterbalance forklift is equipped with the reliable GCTK25 four-cylinder engine, with a displacement of 2.85L. It supports both LPG and gasoline fuel modes, allowing operators to seamlessly switch between fuels on demand:

• Rated Power: 36.8kW / 2500rpm

• Max Torque: 170N·m / 1800rpm The dual-fuel design drastically cuts daily operational costs, reduces exhaust emissions compared to single gasoline forklifts, and eliminates downtime risks caused by single fuel supply shortages. It balances robust power output with eco-friendly performance for long-shift heavy-duty work.

•


Core Performance & Load Capacity

• The CPY30 forklift features a standard rated load capacity of 3000kg at a 500mm load center, with a complete set of optimized performance parameters to maximize stacking and transportation efficiency:

1.Lifting Capability: Standard max lifting height reaches 3000mm, with 130mm free lift height; mast tilt angle ranges from 6° forward to 12° backward for safe load positioning.

2.Travel & Lifting Speed: Unloaded lifting speed hits 480mm/s, loaded speed 455mm/s; unloaded travel speed up to 19km/h, loaded travel speed 18.5km/h for smooth, fast cargo movement.

3.Maneuverability: A minimal turning radius of 2560mm ensures flexible operation in narrow warehouse aisles. The calculated right-angle stacking aisle width further optimizes space utilization for compact storage facilities.

4.Traction & Stability: 20KN max traction force and 15/20% gradeability (loaded/unloaded) enable stable travel on ramps and uneven workshop ground.

Complete Dimension & Structural Design

Built with a solid, compact chassis, the forklift balances strength and agility with precise structural dimensions:

• Overall length (without forks): 2825mm, overall width: 1230mm

• Mast height: 2130mm; overhead guard height: 2145mm; max overall lifting height: 4230mm

• Minimum ground clearance of 130mm avoids ground scraping during cross-site transport

• Standard fork size: 1070mm (L) × 122mm (W) × 45mm (T), adaptable to most standard pallet sizes The robust tire configuration (front: 28×9-15-14PR; rear: 6.50-10-10PR) delivers strong load-bearing capacity and anti-slip performance on concrete, asphalt and factory flooring. The integrated overhead guard and wide-view mast structure fully protect operators while maintaining clear sightlines during stacking work.

Safety & Humanized Operation

• Every detail prioritizes operator safety and comfort:

• Full overhead guard structure to prevent falling object injuries

• Clear load curve chart onboard, clearly showing residual load capacity under different load centers to avoid overload risks

• Stable mast tilting system and low-vibration engine mounting reduce operator fatigue during all-day shifts

• Standard 12V/80Ah battery supports stable startup and auxiliary electrical equipment operation

• Compact body design with optimized front/rear overhang for safer cargo handling in tight spaces

Wide Application Scenarios

The ATLAPEX CPY30 3-ton dual fuel forklift is an ideal workhorse for multiple industries:

• General manufacturing workshops & production lines

• Indoor & outdoor warehouse storage and pallet stacking

• Logistics distribution centers, freight yards, ports

• Construction material, food, beverage, and retail inventory handling

About ATLAPEX

QINGDAO ATLAPEX INDUSTRY CO., LIMITED specializes in the R&D, production and global supply of high-performance industrial lifting equipment, including LPG forklifts, diesel forklifts, electric forklifts and aerial work platforms. All our machinery undergoes strict factory testing to meet international quality standards, with customizable mast heights, fork attachments and optional configurations to match client-specific working demands.

For inquiries, quotations and technical datasheets of the new CPY30 3-ton LPG & gasoline forklift, please contact our global sales team:

• Email: info@atlapexlift.com

• Tel / WhatsApp / WeChat: +86 15554268335

• Official Website: www.atlapexlift.com

We welcome global dealers, distributors and end-users to cooperate with ATLAPEX for reliable, durable lifting machinery with competitive factory direct pricing.
