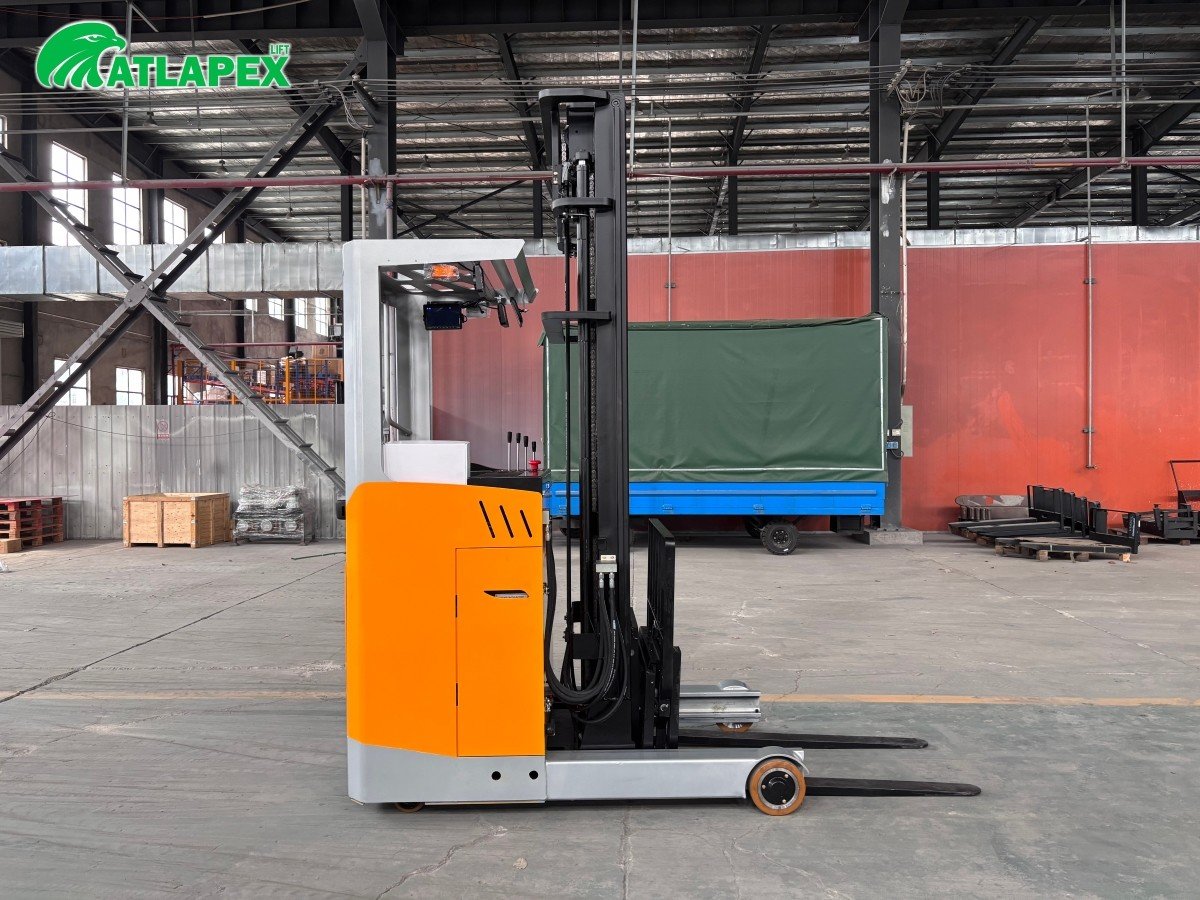

ATLAPEX CQD‑EC series electric reach forklift, specially developed for intensive warehouse stacking and indoor material‑handling operations.

The CQD‑EC reach forklift provides three rated load capacities: 1.2 ton, 1.5 ton and 2 ton. Its lifting height ranges from 2000 mm up to 6000 mm, which satisfies different racking storage requirements in modern warehouses. Three specific models are available: CQDEC12 (1200 kg), CQDEC15 (1500 kg), and CQDEC20 (2000 kg).

Adopting advanced and well‑thought‑out design concepts, this reach truck is built to maximize your warehouse storage utilization and boost overall working efficiency.

Key Product Features

1. Ergonomic Operator Seat:The comfortable, ergonomically designed seat creates a pleasant working condition for operators during long‑hour shifts, effectively reducing operator fatigue.

2. Semi‑circular Rear‑view Mirror:Equipped with a semi‑circle rearview mirror, the forklift delivers a wider rear vision field. Operators can observe surrounding conditions more clearly when reversing to lower accident risks.

3. Flexible Battery Configuration:The standard power unit is a heavy‑duty lead‑acid battery. Customers are allowed to upgrade to a lithium‑ion battery as an optional replacement, to match different working‑shift durations and charging habits. The standard battery specification is 24V /280AH.

4. High‑Power Working Lights:High‑power working lamps are fitted on the overhead guard. It guarantees good visibility when working in dim warehouse environments and improves on‑site operation safety.

5. Heavy‑Duty Polyurethane Wheels:High‑quality PU (polyurethane) drive and load wheels come as standard. These wheels feature outstanding wear resistance and extended service life, making them suitable for smooth indoor warehouse floors.

Technical Performance

This CQD‑EC reach forklift is an electric standing‑type reach truck. The overhead guard structure, mast retraction design and compact overall dimension allow it to work in narrow aisle warehouses. The sound level at the driver’s ear is only 75 dB, offering relatively low‑noise operation. The AC driving control system delivers stable and responsive travelling and lifting performance.

Ideal Warehouse Solution

Whether you need to stack goods on high racks or transport pallets inside the warehouse, ATLAPEX CQD‑EC electric reach forklift is a reliable workhorse. It helps customers make better use of limited warehouse space and improve daily logistics throughput.
