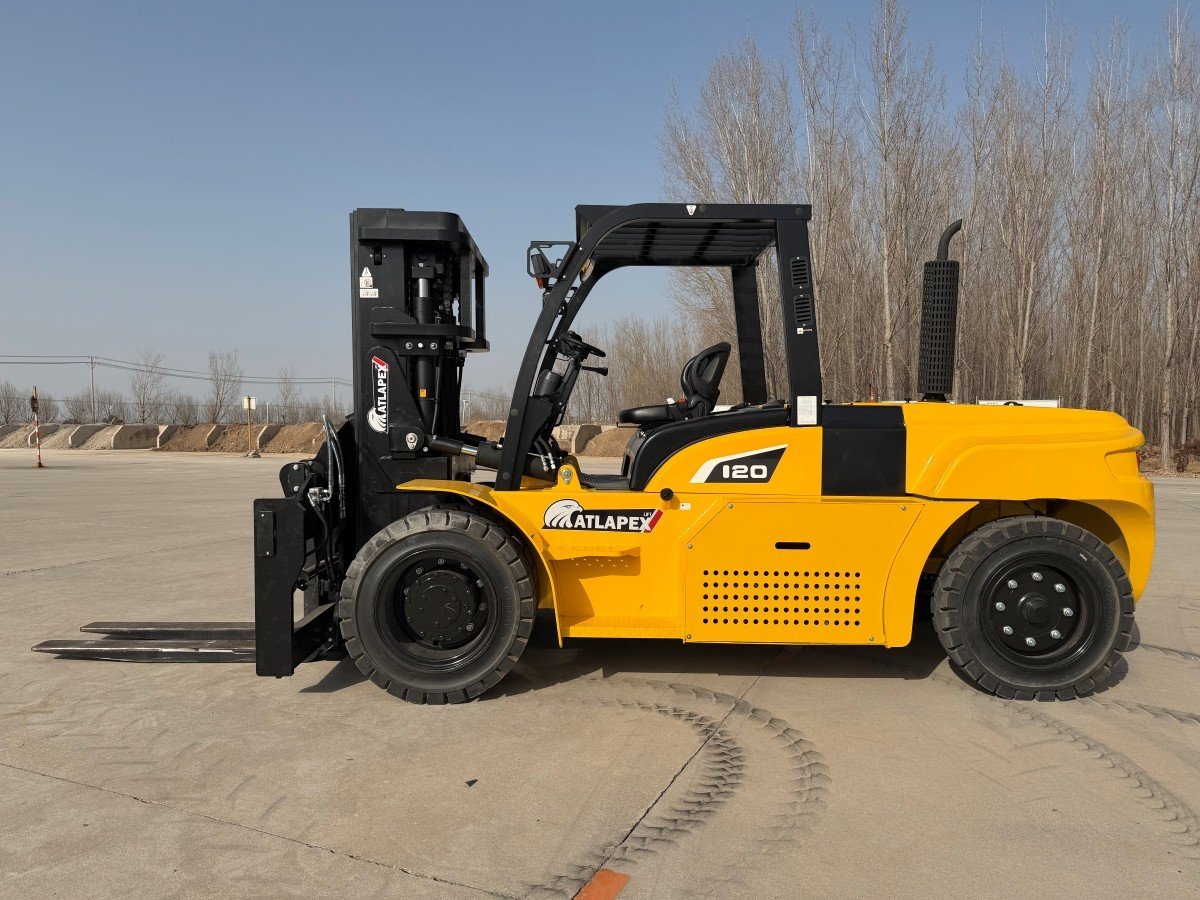

ATLAPEX, a leading provider of industrial material handling solutions, is proud to announce the official launch of the CPCD-G120X, the 12-ton heavy-duty model in its flagship G Series diesel counterbalanced forklift line. Engineered for maximum performance and reliability in demanding industrial environments, this new forklift meets CE and EAC certification standards, delivering exceptional lifting capacity, stability, and efficiency for heavy-load operations.

Unmatched Heavy-Lifting Performance

The CPCD-G120X is purpose-built to handle the most challenging material handling tasks with a rated lifting capacity of 12,000 kg (12 tons) and a standard load center distance of 600 mm. It features a robust design with an operating weight of 13,900 kg, ensuring superior stability when moving heavy pallets, machinery, construction materials, and industrial goods.

Powered by a high-efficiency YCA05115-T480 diesel engine, the forklift delivers a maximum torque of 500 N·m at 1,400–1,600 rpm, providing consistent power delivery for heavy lifting and transportation. The advanced powertrain is equipped with a two-stage air filtration system and a high-performance heat-dissipating radiator, guaranteeing low fuel consumption, reliable operation, and extended durability even in harsh working conditions. The engine boasts 4 cylinders and a displacement of 4.837 L, further enhancing its power and efficiency.

Key Technical Highlights

The CPCD-G120X offers a maximum lifting height of 3,000 mm and a free lift height of 195 mm, making it ideal for standard warehouse and industrial stacking operations. Its mast tilt angle is 6° forward and 12° backward, ensuring precise load handling. The forklift achieves a maximum lifting speed of 300 mm/s under full load and 380 mm/s when unloaded, while its maximum lowering speed is 390 mm/s with a full load and 350 mm/s without a load.

In terms of mobility, the CPCD-G120X reaches a maximum travel speed of 22 km/h when fully loaded and 28 km/h when unloaded, with a minimum turning radius of 4,300 mm for enhanced maneuverability in tight industrial spaces. It offers a gradeability of 20% under full load and 25% when unloaded, along with a maximum drawbar pull of 70 KN, ensuring it can handle inclines and heavy towing tasks with ease.

The forklift’s dimensions are optimized for industrial use: it has a length of 4,540 mm (excluding forks), an overall width of 2,200 mm, and a minimum ground clearance of 250 mm. Its wheelbase is 3,000 mm, with front wheel tracks of 1,600 mm and rear wheel tracks of 1,725 mm, further enhancing stability. It is equipped with 9.00-20-14PR tires both front and rear, and its forks measure 1,520 mm in length, 180 mm in width, and 88 mm in thickness, designed to handle heavy loads securely.

Superior Design for Durability and Maneuverability

The 12-ton G Series forklift features a heavy-duty chassis with reinforced structural elements, ensuring long service life and minimal maintenance requirements in intensive industrial applications. The ergonomic design includes a spacious operator compartment with a high-visibility overhead guard (2,560 mm height) and optimized mast structure, providing excellent all-around visibility for the operator and enhancing safety during operation.

Ideal for Diverse Industrial Applications

The ATLAPEX CPCD-G120X 12-ton diesel forklift is the perfect solution for a wide range of heavy-duty material handling operations, including manufacturing facilities handling heavy machinery and components, construction sites for moving building materials and equipment, logistics and distribution centers with heavy palletized cargo, ports and terminals for container and heavy cargo handling, and steel, metal, and heavy industry production facilities.

With its combination of powerful performance, robust construction, and compliance with international safety standards, the new 12-ton G Series forklift sets a new benchmark in heavy-duty material handling equipment.
