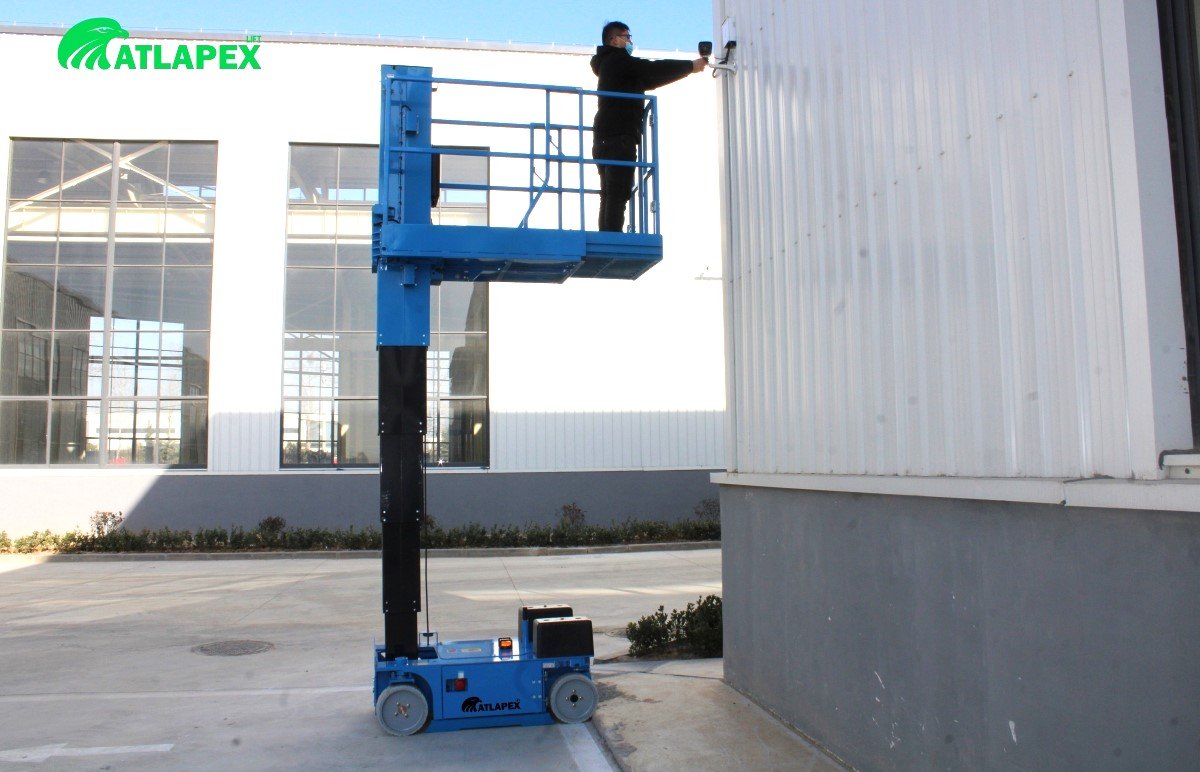

ATLAPEX has officially introduced its new wheel self‑propelled vertical mast lift lineup, covering maximum working heights from 5.6m to 8m to deliver compact, maneuverable, and reliable elevated access for indoor maintenance, narrow‑aisle operations, interior finishing, and light industrial tasks.

Designed with a slim footprint and zero‑tailswing performance, the ATLAPEX sleeve vertical mast lift series features non‑marking tires, full‑height drivability, and an extendable platform for flexible positioning in confined environments. Built for stability and ease of use, these electric‑powered lifts balance strong load capacity with smooth, precise control.

Key Model Specifications

The series includes three optimized models to match different height and capacity needs:

AMWP3.6‑6100

Max working height: 5.6m | Max platform height: 3.6m | Rated load: 227kg

AMWP4.8‑6100

Max working height: 6.8m | Max platform height: 4.8m | Rated load: 227kg

AMWP6‑6100

Max working height: 8m | Max platform height: 6m | Rated load: 159kg

All models support 114kg extended platform capacity and share a standard extendable platform length of 0.51m, ideal for reaching over obstacles while maintaining safety.

Compact Design & Superior Maneuverability

With an overall width as narrow as 0.76m and an inner turning radius of just 0.3m, the lifts easily pass through standard doorways and navigate crowded workshops, warehouses, malls, and public facilities. Key dimensional consistency includes:

Overall length: 1.36m across all models

Outer turning radius: 1.4m

Wheel base: 1.04m

Platform size: 1.28m × 0.70m

Efficient Electric Drive System

Each unit is powered by a maintenance‑friendly DC electric system for quiet, emission‑free indoor operation:

Drive motors: 2 × 24VDC / 0.5kW

Lifting motor: 24VDC / 1.2kW

Battery pack: 2 × 12V / 100Ah

Charger: 24V / 15A

Travel speed reaches 4km/h in stowed position and 1.1km/h at full elevation, with gradeability up to 25% for mild sloped surfaces. Lifting and lowering speeds are calibrated for efficiency, ranging from 31/32 sec to 52/53 sec across the series.

Built for Durability & Versatility

Weighing from 810kg to 1160kg and fitted with φ305×100mm drive tires, the lifts offer robust performance while protecting sensitive flooring. Whether used for facility upkeep, lighting installation, inventory management, or construction finishing, the ATLAPEX vertical mast lift series provides a cost‑effective, space‑saving alternative to traditional access equipment.

ATLAPEX continues to engineer accessible, high‑performance aerial work platforms to improve safety and productivity in modern job sites. For full specifications or customization inquiries, please contact our sales team.
