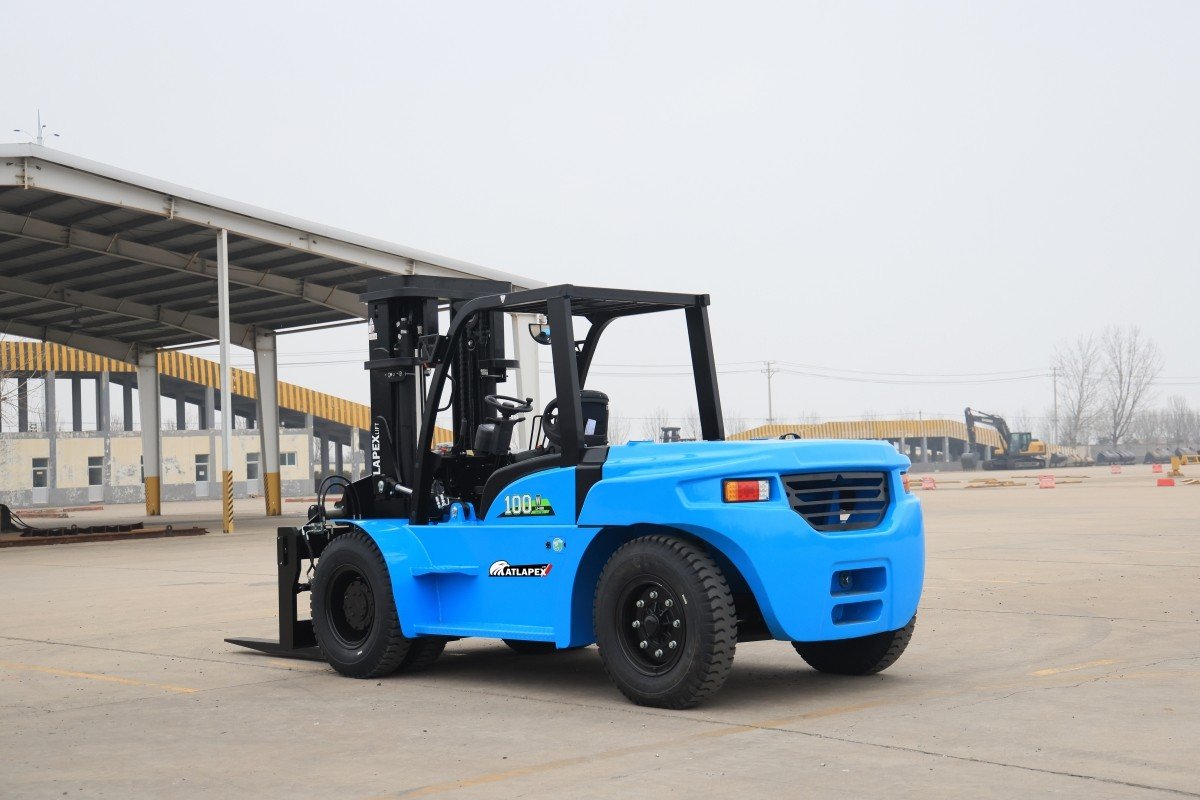

ATLAPEX is proud to introduce the brand‑new GW series high‑voltage lithium‑battery counterbalance forklift, with the GW100 model delivering up to 10‑tonne rated load capacity, designed for heavy‑duty indoor and outdoor material‑handling operations. Built around a 326.4V high‑voltage platform, this new electric forklift features “Double 2.0” performance, capable of stable operation under both low‑temperature and high‑temperature harsh working conditions, bringing high‑performance zero‑emission solutions for factories, stations, ports, warehouses and other sites.

Superior Power & Reliable High‑Voltage Architecture

The GW‑series adopts high‑efficiency Permanent Magnet Synchronous Motor, paired with mature 326.4V high‑voltage lithium‑ion battery packs. It supports fast‑charging & charge‑and‑go workflows to maximize equipment uptime. The intelligent temperature‑control system integrates air‑cooling and electric heating modules, enabling normal charging and working within‑30℃ ~ +60℃, solving the pain points of lithium‑battery performance attenuation in extreme cold or high‑heat environments.

IP67‑rated waterproof and dust‑proof protection covers key electric components. Together with the heavy‑duty cast‑steel rear axle, dual‑pump confluence hydraulic system and wide‑view reinforced mast, the machine maintains strong load capacity, stable lifting and smooth travelling even under full‑load heavy‑duty cycles.

Operator‑Centered Ergonomic & Safe Design

Focusing on operator comfort and safety, the GW‑series is equipped with a luxury suspended seat with OPS operator presence protection system. When the operator leaves the seat, lifting and travelling movements will be automatically cut off for accident prevention.

The intelligent controller with LCD real‑time display monitors battery status, motor performance and system faults, providing real‑time fault alarms to improve operational safety and machine reliability.

Large‑opening engine hood grants quick access for daily inspection and component maintenance. The whole machine achieves maintenance‑free for core electric assemblies, greatly lowering daily servicing workload.

GW100 Technical Highlights (10‑Ton Model)

• Rated load: 10 000 kg

• Voltage platform: 326.4V high‑voltage lithium battery

• Max lifting height: 3000 mm

• Traction motor rated power: 58 kW; Oil pump motor rated power:56.9 kW

• Robust pneumatic tire configuration for rough‑site adaptability

• Excellent gradeability: 20% (full‑load) / 25% (no‑load)

Long‑Term Quality Assurance

ATLAPEX provides an ultra‑long warranty package for GW‑series electric forklifts: 1‑year /2 000‑hour warranty for main electric components, plus spare‑part support. The GW series delivers zero‑emission, low‑noise operation, replacing traditional internal‑combustion forklifts, helping enterprises cut fuel costs and meet environmental‑protection requirements.
