SPECIFICATIONS

  • Max. Working Height

    14M~16M

  • Max.Platform Height

    12M~14M

  • Rated Load

    320KG

DESCRIPTIONS

The ATLAPEX Crawler Scissor Lift with Legs is a high-performance aerial work platform built for uneven terrain. It features a 30% climbing ability, foldable fence for tight-space access, and easy maintenance via a drawer chassis and automatic fault codes. Safety systems include proportional control, emergency stop, and tilt protection, while key specs offer up to 16m working height, 320kg platform capacity, and 48V power—ideal for construction and maintenance tasks requiring stable, reliable elevation.

TECHNICAL PARAMETERS

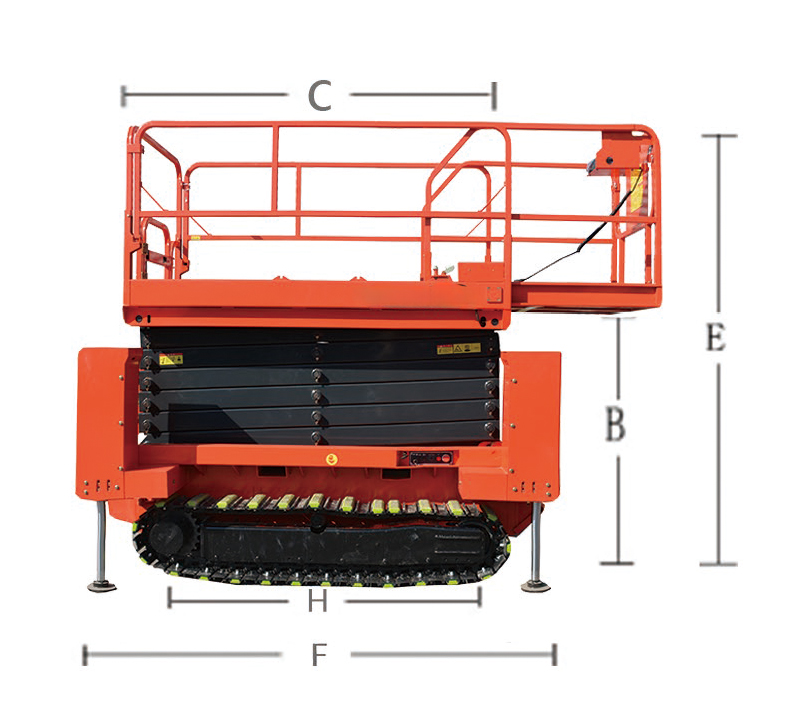

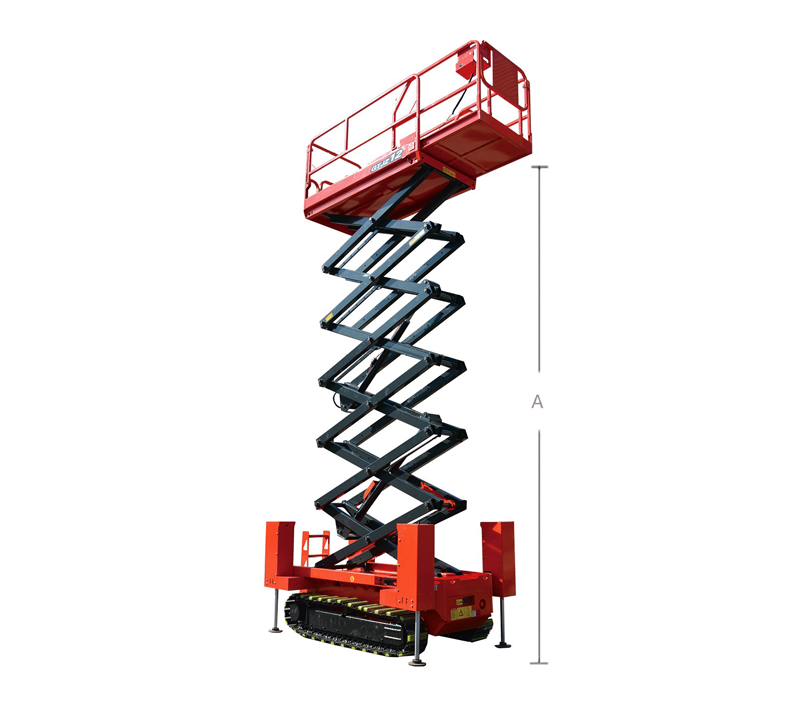

_20260317132601_50_48 _20260317132602_51_48 _20260317132603_52_48
ModelQY1216LDSQY1416LDS
Size
Working Height13.8m16m
A-Platform Height-Elevated11.8m14m
B-Platform Height-Stowed1.442m1.718m
C-Platform Length2.72m2.643m
D-Platform Width1.65m1.115m
Platform Extension0.9m0.9m
E Overall Height (Rails Up)2.542m2.818m
Overallheight (Rails Down)1.94m2.288m
F-0verallLength2.27m3.034m
G-Overall Width1.1m1.823m
H-WheelbaseNot ApplicableNot Applicable
I-Ground Clearance (Stowed)××
JGround Clearance (Raised)××
Performance
Capacity on Deck Extension113kg113kg
Platform Capacity320kg320kg
Max Workers(75kg)
Driving Speed (Strowed)2.2km/h1.8km/h
Driving Speed (Raised)0km/h0km/h
Lifting Motor48V/4.5KW48V/4.5KW
Drive Motor48V/4.5kw48V/4.5KW
Lifting Speed3-5m/min84/38sec
Gradeability0.3 0.3
Max.Working Angle1.5°13°1.5°3°
Power
Battery8×6V/240ah8×6V/240ah
Charger48V/35A48V/35A
Weight
Gross3670kg4000kg
