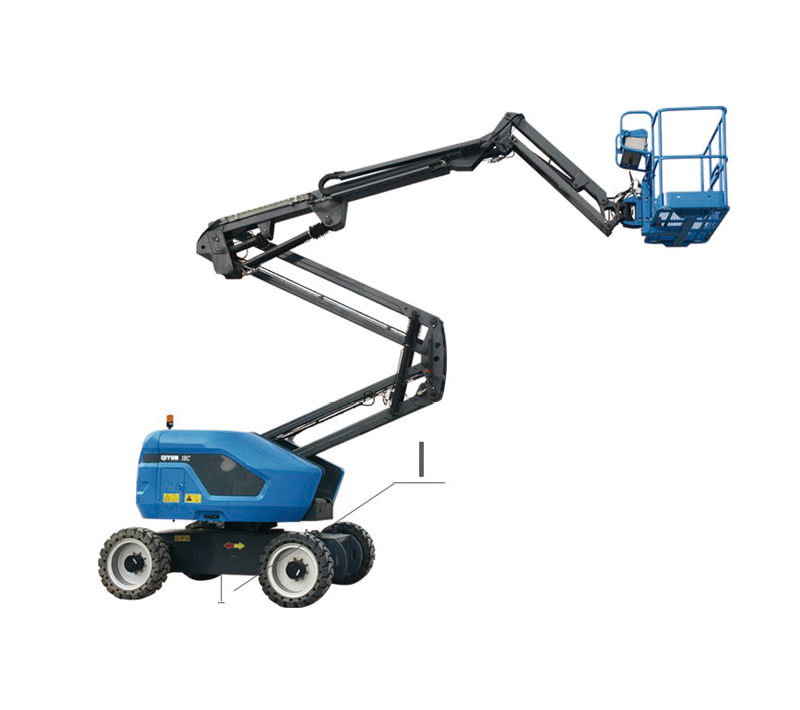

Diesel Articulating Boom Lift — 20-27M

The ATLAPEX Articulating Boom Lift (Diesel Engine Series) is a high-performance aerial work platform designed for complex and narrow workspaces. It features a flexible articulating boom, automatic hydraulic platform leveling, and intelligent multi-directional positioning functions, delivering stable operation with strong traction. With a working height range of 20m to 27m and a 230kg platform capacity, it is ideal for construction, facility maintenance, and industrial tasks requiring precise, reliable elevation.

Get Free Quote

SPECIFICATIONS

Max. Working Height

20M~27M
Max. Platform Height

18M~25M
Standard Working Capacity

230KG

DESCRIPTIONS

Key Highlights

High Performance & Precision: Intelligent visualization with a high-brightness large screen enables multi-directional positioning; the flexible boom design excels in complex and narrow workspaces.

Stable & Safe Operation: Automatic hydraulic platform leveling ensures stable, reliable performance, while diesel drive delivers strong power for continuous operation in remote sites.

User-Friendly Design: Easy operation, good stability, and minimal impact on the surrounding environment.

Core Safety & Configuration Features

Safety Systems: Automatic working platform leveling, hydraulic rotary platform, emergency descent, fault diagnosis, emergency braking, chassis floating leveling, and emergency safety pump for comprehensive operator protection.

Advanced Controls: Centralized electric control box, turntable safety lock pin, proportional control, 355° turntable rotation, and 160° working basket rotation for precise maneuvering.

Durable Construction: Imported overweight sensors, 40Cr steering links, solid tires, and a wide chassis for long-term reliability in rough terrain.

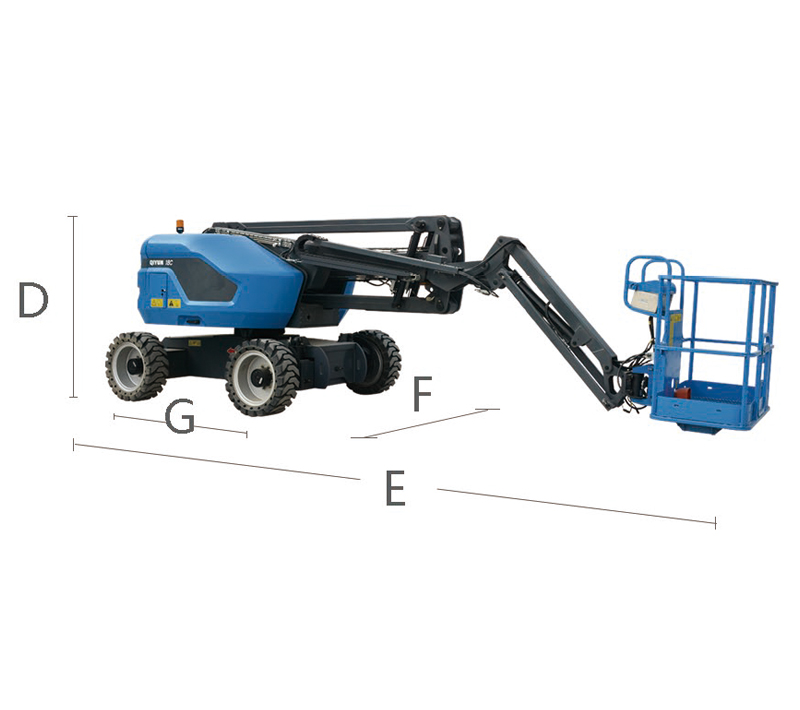

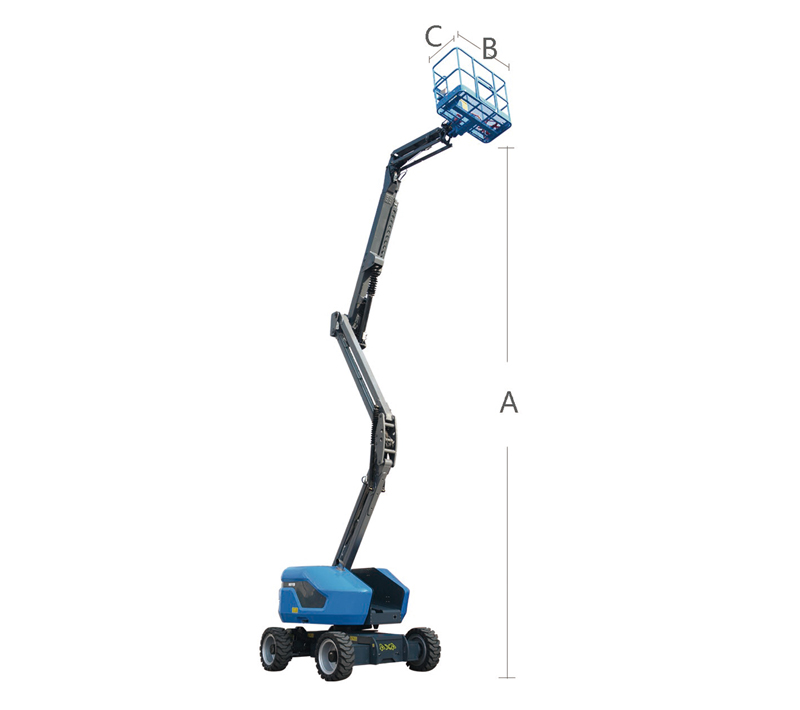

TECHNICAL PARAMETERS

Model	APQB-18C	Model	APQB-20C	APQB-25C
Max. Working Height	20.0m	Working Height	21.8m	26.8m
Max.Platform Height	18.0m	Platform Height-Elevated	19.8m	24.8m
Max. Horizontal Extension	8.6m	Platform Length	1.83m	1.83m
Standard Working Capacity	230KG	Platform Width	0.76m	0.76m
Climbing Ability	45%	Overall Height	2.62m	2.86m
Outer Turning Radius	4.8m	Overall Length	8.45m	11.28m
Inner Turning Radius	1.8m	Overall Width	2.38m	2.49m
Travel Speed (stowed state)	6.8km/h	Wheelbase	2.5m	3.05m
Travel Speed (raised state)	1.1km/h	Ground Clearance-middle	0.41m	0.38m
Turntable Rotation Angle	355°	Platform Capacity	230kg	230kg
Platform Rotation Angle	160°	Max. Number of Workers	2	2
Max. Working Wind Speed	12.5m/s	Max Working Distance	12.0m	16.0m
Max. Allowable Lateral Force	400N	Max Crossing Distance	0m	10.5m
Max. Allowable Angle Of Inclination	5°	Driving Speed (Strowed)	4.8km/h	4.8km/h
Machine Length(stowed state)	7.7m	Driving Speed (Raised)	1.1km/h	1.1km/h
Machine Width(stowed state)	2.28m	Turning Radius (Outside)	4.85m	5.98m
Machine Height (stowed state)	2.18m	Turning Radius (inside)	2.2m	2.5m
Ground Clearance	0.43m	Platform Leveling	Auto	Auto
Wheelbase	2.02m	Platform Rotation	80 °	80 °
Platform Size	1.53×0.76m	Turntable Rotation Angle	355°	355°
Wheel Table Model	250×15	Gradeability	45%	45%
Engine	404D-22T	Max Working Angle	5%	5%
Fuel Tank Volume	100L	Tire(Drive Wheel)	33*12-20	385/65-24
Control Voltage	12V/24V	Power Source(Battery)	Cumminss 12V	Cummins
Driving×Steering	4WD×2WS	Fuel Tank	100L	4DW*2WS
Machine Weight	7050kg	Machine Weight	9600kg	15500kg
