QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    2000KGS-4000KGS

  • Lifting Height

    3000MM

DESCRIPTIONS

ATLAPEX Diesel Forklift G Series 2T–4T is a high-performance internal combustion counterbalanced forklift series with rated capacities from 2,000 kg to 4,000 kg. Powered by efficient Quanchai engines, it features a wide-view mast, large-opening engine cover for easy maintenance, two-stage air purification, ergonomic controls, and a maintenance-free steering axle. With a max lift height of 3,000 mm, gradeability up to 20%, and durable construction, it delivers reliable power, low fuel consumption, and operator comfort for diverse industrial material handling.

TECHNICAL PARAMETERS

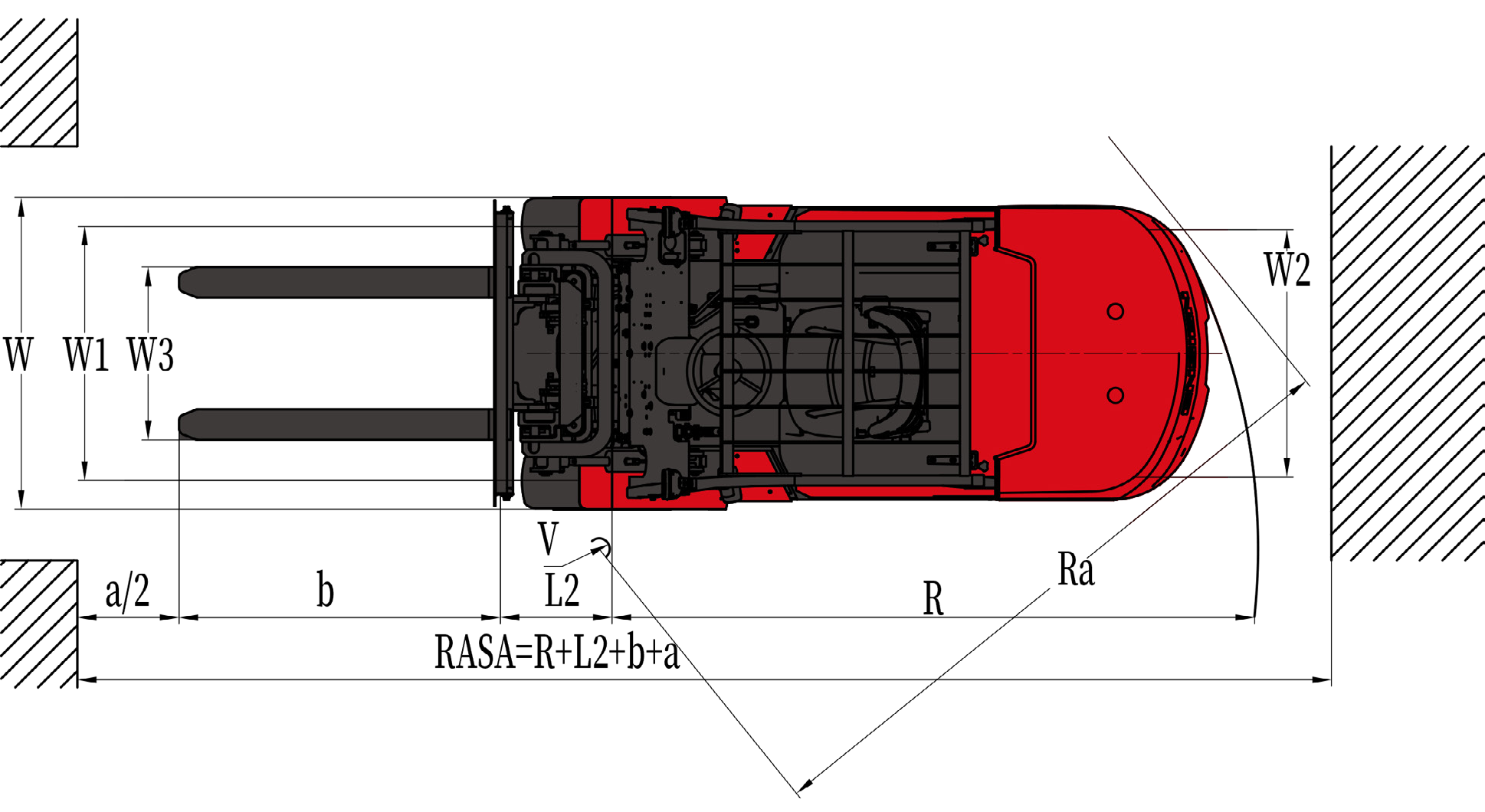

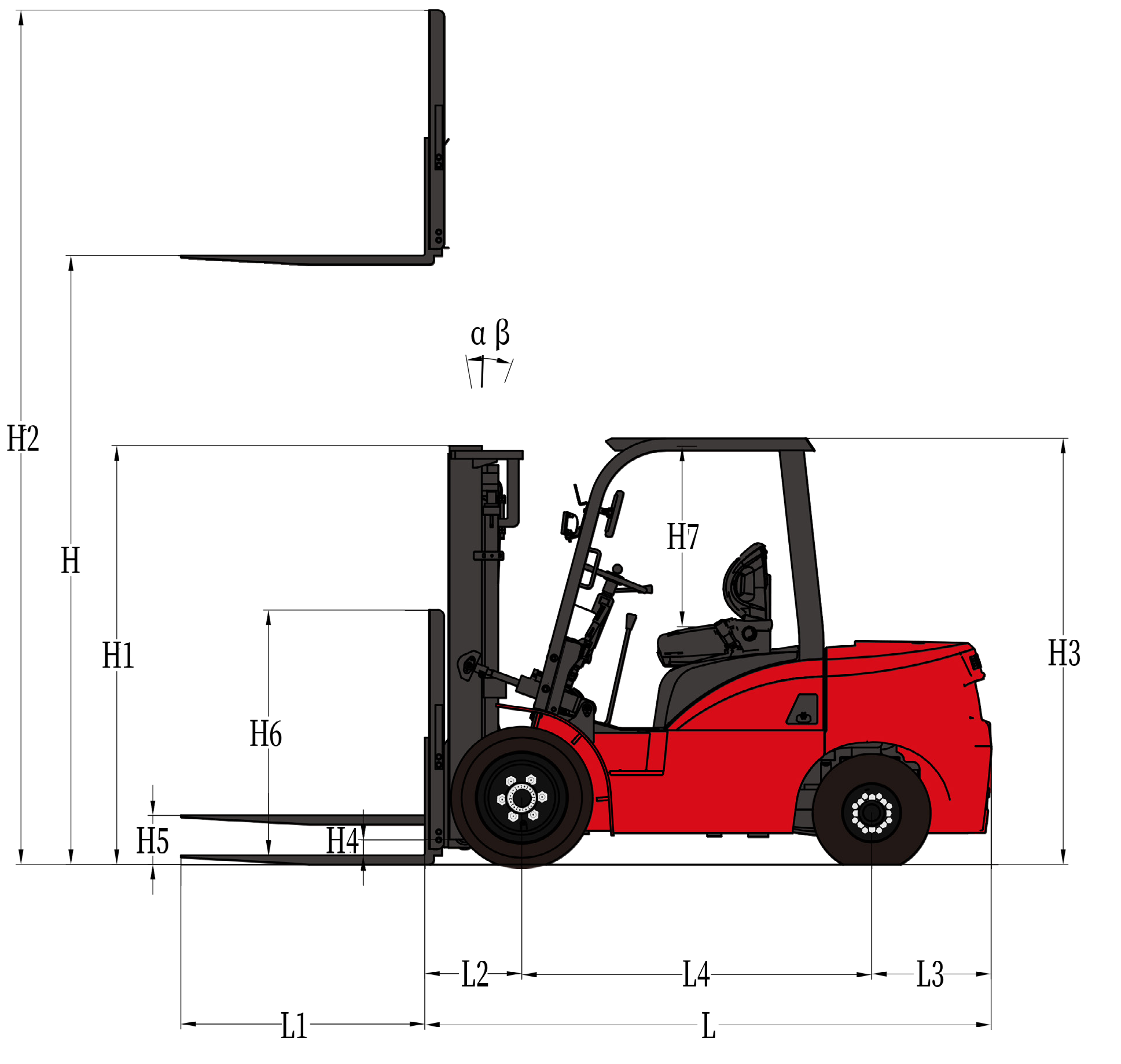

1 2
Model

CPC(D)-G20CPC(D)-G25CPC(D)-G30CPC(D)-G35CPC(D)-G38CPC(D)-G40X
Power Type

DieselDieselDieselDieselDieselDiesel
Rated Load Capacity
(kg)2000 2500 3000 3500 3800 4000
Load Center Distance
(mm)500 500 500 500 500 500
Battery (Voltage/Capacity)
(V/Ah)12-8012-8012-8012-8012-8012-80
Max. Lifting HeightH(mm)3000 3000 3000 3000 3000 3000
Free Lift HeightH5(mm)130 130 130 130 130 140
Mast Tilt Angle (Forward/Backward)a/β(°)6-126-126-126-126-126-12
Max. Lifting Speed (Loaded/Unloaded)
(mm/s)560/600560/600455/480455/480370/400370/400
Max. Lowering Speed (Loaded/Unloaded)
(mm/s)540/450540/450450/410450/410330/310330/310
Max. Travel Speed (Loaded/Unloaded)
(km/h)17/1917/1918.5/1918.5/1918.5/1919/19.5
Min. Turning Radiusr(mm)2290 2290 2560 2620 2720 2720
Gradeability (Loaded/Unloaded)
(%)15/2015/2015/2015/2015/2015/20
Max. Traction Force
(KN)16 16.5 20 20 20 20
Operating Weight
(kg)3400 3700 4300 4600 4800 5000
DIMENSIONS







Length (Without Forks)
(mm)2520 2520 2825 2880 2990 2990
WidthW(mm)1170 1170 1230 1230 1230 1240
Mast HeightH1(mm)2000 2000 2130 2130 2130 2140
Overhead Guard HeightH3(mm)2110 2110 2145 2145 2145 2155
Backrest HeightH6(mm)965 965 1225 1225 1225 1235
Overall Height at Max. LiftH2(mm)4035 4035 4230 4230 4230 4240
Min. Ground Clearance
(mm)110 110 130 130 130 130
WheelbaseL(mm)1650 1650 1750 1800 1900 1900
Front TrackW1(mm)970 970 1000 1000 1000 1000
Rear TrackW2(mm)980 980 970 970 970 970
Front OverhangL2(mm)462 462 475 480 490 490
Rear OverhangL3(mm)408 408 600 600 600 600
Front Tire

7.00-12-12PR7.00-12-12PR28×9-15-14PR28×9-15-14PR28×9-15-14PR250-15-16PR
Rear Tire

6.00-9-10PR6.00-9-10PR6.50-10-10PR6.50-10-10PR6.50-10-10PR6.50-10-10PR
   Forks (L*W*T)   b  (mm)1070×120×401070×120×401070×122×451070×122×501070×122×501070×122×50
Engine Model

QuanChaiV29-50V42QuanChaiV29-50V42QuanChaiV29-50V42QuanChaiV29-50V42
Rated Power
(kW/r)36.8/250036.8/250036.8/250036.8/2500
Max. Torque
(N.m/r)170/1800170/1800170/1800170/1800
Number of Cylinders

Displacement
(L)2.85 2.85 2.85 2.85
