Diesel Forklift G Series— 4T-5T
Diesel Forklift G Series— 4T-5T

Diesel Forklift G Series— 4T-5T

The ATLAPEX G Series 4–5 ton diesel forklifts are engineered for safe, reliable, and efficient material handling. Equipped with a powerful 85kW common rail turbocharged engine and split radiator, they deliver robust performance with enhanced heat dissipation. The two-stage air filtration system optimizes combustion and extends engine life, while the high-efficiency hydraulic transmission ensures smooth power delivery and increased productivity.

Get Free Quote
Diesel Forklift G Series— 4T-5T

SPECIFICATIONS

  • Rated Load

    4000KGS-5000KGS

  • Lifting Height

    3000MM

DESCRIPTIONS

Designed with operator comfort in mind, the ergonomic small steering wheel and digital dashboard reduce fatigue and provide real-time machine monitoring. The wide-view mast and intelligent control levers offer excellent visibility and intuitive operation. Built with a high-strength cast steel axle, wide-base tires, and a load-sensing hydraulic system, these forklifts ensure stable performance and precise handling. Backed by a robust stamped hood and reinforced mast, the G Series is a durable and dependable solution for demanding industrial environments.

TECHNICAL PARAMETERS

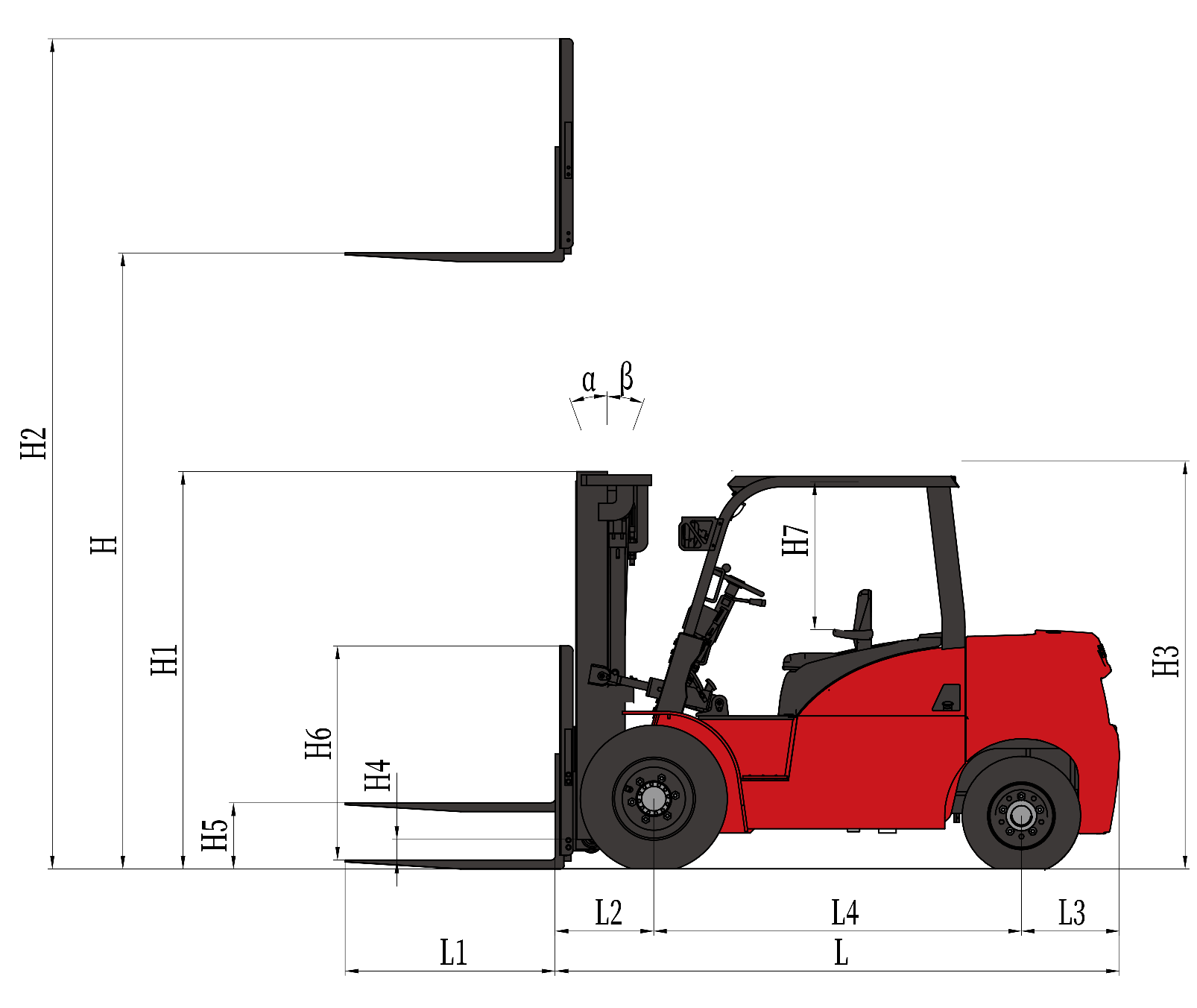

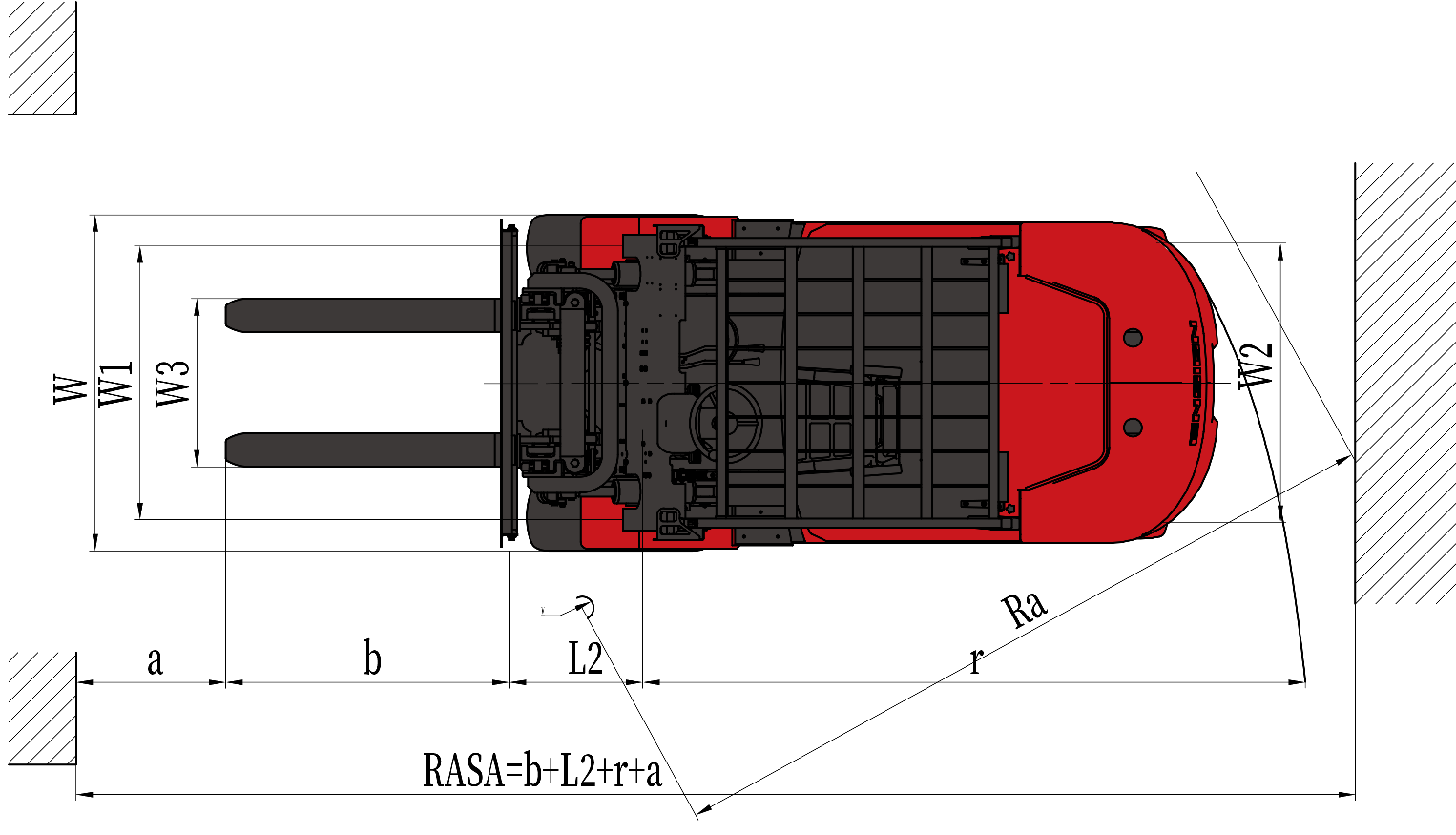

_20260303163344_664_48 _20260303163343_663_48
Model

CPC-G40CPCD-G40CPC-G45CPCD-G45CPC-G50XCPCD-G50X
Power type

DieselDieselDieselDieselDieselDiesel
Lift capacity
（kg）4000 4000 4500 4500 5000 5000
Load center distance
（mm）500 500 500 500 500 500
Battery(Voltage/Capacity)
（V/Ah）12-8012-8012/12012/12012/12012/120
Max.lift heightH（mm）3000 3000 3000 3000 3000 3000
Free lift heightH5（mm）160 160 160 160 160 160
Mast tilt angle (front/rear)α/β(°)6-126-126-126-126-126-12
Max.lift speed(full load/no load)
（mm/s）420/440420/440430/470450/510420/460440/500
Max.lowering speed(full load/no load)
（mm/s）330/310330/310420/350420/350430/350430/350
Max.travelling speed(full load/no load)
（km/h）19/19.519/19.518.5/1922/2318.5/1922/23
Min.turning radiusr（mm）2730 2730 2930 2930 2930 2930
Gradeability(full load/no load)
（%）15/2015/2020/2120/2120/2120/21
Max.traction force
(KN)25 25 29 29 29 29
Overweight
(kg)5200 5200 6450 6600 6700 6850
Length(without fork)
（mm）2960 2960 3220 3220 3220 3220
WidthW（mm）1400 1400 1500 1500 1500 1500
Height of mastH1（mm）2130 2130 2275 2275 2275 2275
Overall height (overhead guard)H3（mm）2160 2160 2280 2280 2280 2280
Height of load-backrestH6（mm）1350 1350 1280 1280 1280 1280
Overall height at max.liftH2（mm）4230 4230 4230 4230 4230 4230
Min.ground clearance
（mm）140 140 169 169 169 169
Wheel baseL（mm）1900 1900 2100 2100 2100 2100
Front wheel treadW1（mm）1150 1150 1195 1195 1195 1195
Rear wheel treadW2（mm）1070 1070 1195 1195 1195 1195
Front overhangL2（mm）500 500 560 560 560 560
Rear overhangL3（mm）580 580 560 560 560 560
Front tires

250-15-16PR250-15-16PR300-15-18PR300-15-18PR300-15-18PR300-15-18PR
Rear tires

7.00-12-12PR7.00-12-12PR7.00-12-12PR7.00-12-12PR7.00-12-12PR7.00-12-12PR
Fork size(L*W*H)b（mm）1070*150*501070*150*501070*150*501070*150*501070*150*501070*150*50
Engine model

Quanchai V32-50C45Quanchai V35-88C41
Rated power
（kW/rpm）36.8/250065/2200
Rated torque
(N.m/rpm)200/1600-1800355/1400-1600
Number of cylinders

4 4
Displacement
(L)3.17 3.47
