SPECIFICATIONS

  • Max. Working Height

    21M~38M

  • Max. Platform Height

    19M~36M

  • Standard Working Capacity

    250KG~300KG

DESCRIPTIONS

Simple operation, high stability, no impact and no shaking;


Adopt intelligent visualization, high-brightness large screen, display parameter calibration, operating parameters, display machine information, fault alarm and fault diagnosis system;


The power of the boom lift is strong, and well-known engines are used to provide strong power for the equipment;


The unique four-wheel traction system provides it with strong traction, making its climbing ability up to 45%;


TECHNICAL PARAMETERS

1 2 3

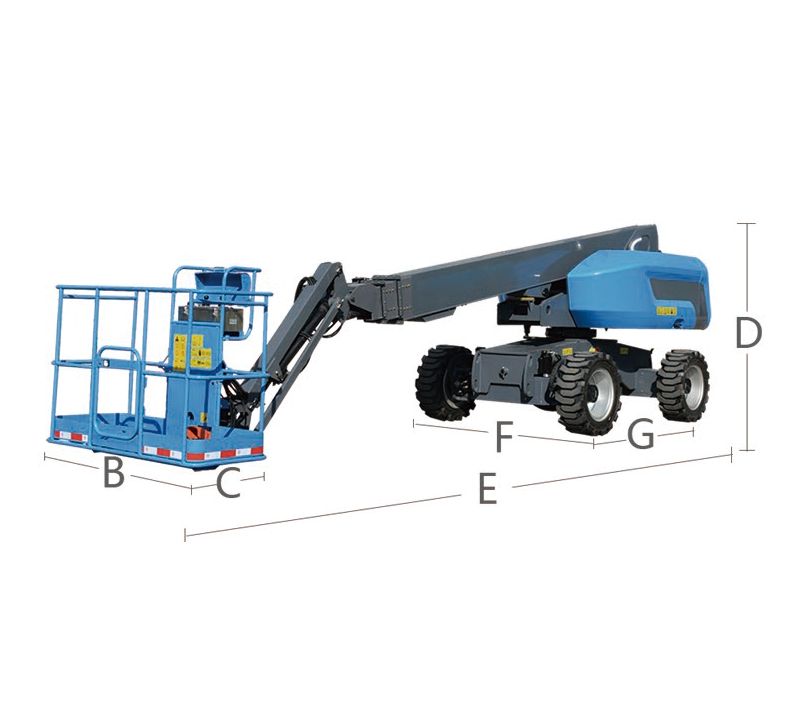

ModelQYZB-19CQYZB-20CQYZB-22CQYZB-24CQYZB-26CQYZB-28CQYZB-32CQYZB-36CQYZB-45C
Working Height20.8m21.80m23.80m25.8m27.8m29.8m33.8m37.8m27.8m

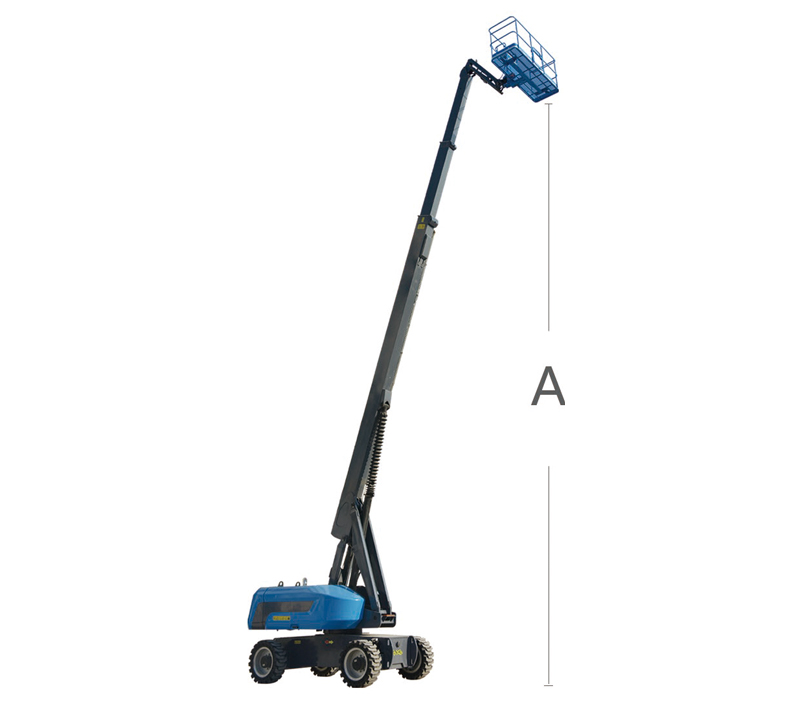

A-Platform Height-Elevated18.8m19.8m21.80m23.8m25.8m27.8m31.8m35.8m25.8m
B-Platform Length2.44m2.44m2.44m2.44m2.44m2.44m2.44m2.44m2.44m
C-Platform Width0.91m0.91m0.91m0.91m0.91m0.91m0.91m0.91m0.91m
D-Overall Height2.54m2.7m2.7m2.90m2.90m2.8m3.08m3.14m3.15m
E-Overall Length9.54m10.80m10.80m12.50m12.50m13.06m14.38m14m14.96m
F-Overall Width2.28m2.49m2.49m2.49m2.49m2.49m2.49m2.49m2.49m
G-Wheelbase2.44m2.5m2.5m3m3m3m3.66m3m3m

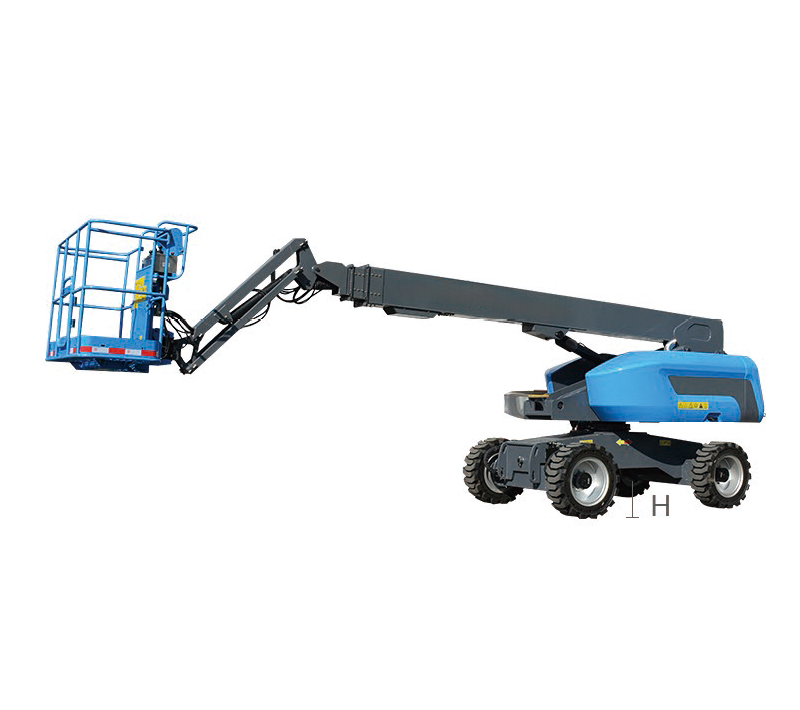

H-Ground Clearance-middle0.43m0.45m0.45m0.43m0.43m0.43m0.47m0.43m0.43m
Platform Capacity250kg300kg300kg250kg250kg250kg255kg255kg255kg
Max Workers(75kg)
Max working radius15.2m15.8m15.8m15/17m16/18m22m22.5/20.5
m
20.4/23.4
m
23.8/21.6
m
Driving Speed
(Strowed)
6.3km/h5.2km/h5.2km/h5.2km/h5.2km/h5.2km/h4.6km/h4.6km/h4.4km/h
Driving Speed(Raised)1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h
Turning Radius
(Outside)
6.2m5.6m5.6m5.98m5.98m5.85m6.38m8m8m
Turning Radius (Inside)2.4m2.4m2.4m2.5m2.5m2.5m2.52m2.94m2.94m
Turntable tail scanning1.4m1.4m1.4m1.48m1.48m1.48m1.8m1.8m2.1m
Platform levelingAutoAutoAutoAutoAutoAutoAutoAutoAuto
Platform rotation160°160°160°160°160°160°160°160°160°
Turntable rotation
angle
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Continuo
us  360°
Gradeability45%45%45%45%45%45%40%40%45%
Max Working Angle
Tire(Drive Wheel)36*14-2036*14-2036*14-20385/55-24385/55-24385/55-24385/65-24455/50D710455/50D710
Fuel tank110L150L150L160 L160 L160 L170 L170 L190 L
Drive steering4*4*24*4*24*4*24*4*24*4*24*4*24*4*24*4*24*4*2
Gross10237kg11800kg11800kg15500kg16000kg17500kg20800kg22800kg24800kg
