Electric Articulating Boom Lift — 14-20M

The ATLAPEX Articulating Boom Lift (Electric Control Series) is an eco-friendly, high-performance aerial work platform designed for complex and narrow workspaces. It features a flexible articulating boom, automatic hydraulic platform leveling, and intelligent multi-directional positioning functions, delivering stable operation with zero pollution and low noise. With a working height range of 14m to 20m and a platform capacity of 230kg, it is ideal for construction, facility maintenance, and industrial tasks requiring precise, reliable elevation.

Get Free Quote

SPECIFICATIONS

Max. Working Height

14M~20M
Max. Platform Height

12M~18M
Platform Capacity

230KG

DESCRIPTIONS

The ATLAPEX Boom Lift (Electric Control Series) is a versatile electric-powered aerial lift engineered to access hard-to-reach areas with exceptional precision. It combines flexible boom articulation, advanced safety systems, and eco-friendly operation to meet the demands of modern construction and maintenance projects.

TECHNICAL PARAMETERS

Model	QYQB-12DQ（14m)	QYQB-12DQ（small)	QYQB-14DQ	QYQB-15D	QYQB-16D	QYQB-18D
Size
Working Height	13.8m	13.6m	15.8m	16.7m	17.7m	19.7m

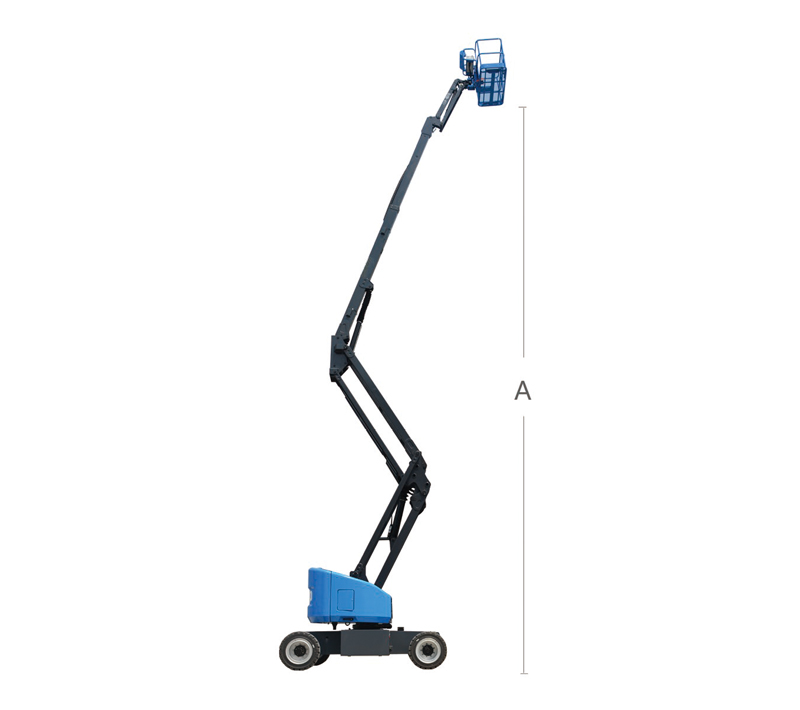

A-Platform Height-Elevated	11.8m	11.6m	13.8m	14.7m	15.7m	17.7m
B-Platform Length	1.53m	1.16m	1.53m	1.53m	1.53m	1.83m
C-Platform Width	0.76m	0.73m	0.76m	0.76m	0.76m	0.76m

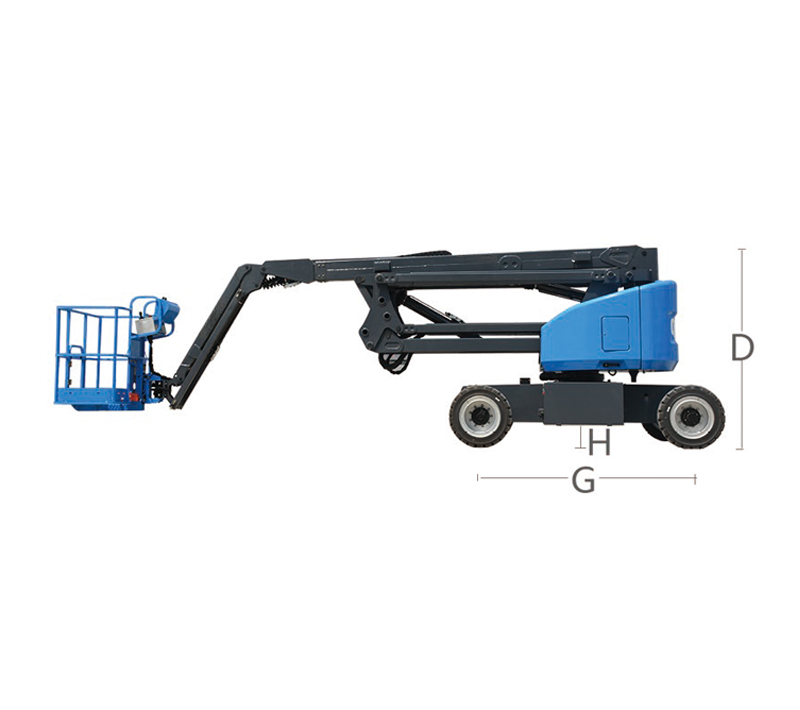

D-0verall Height	1.98m	2.0m	1.98m	2.35m	2.35m	2.67m

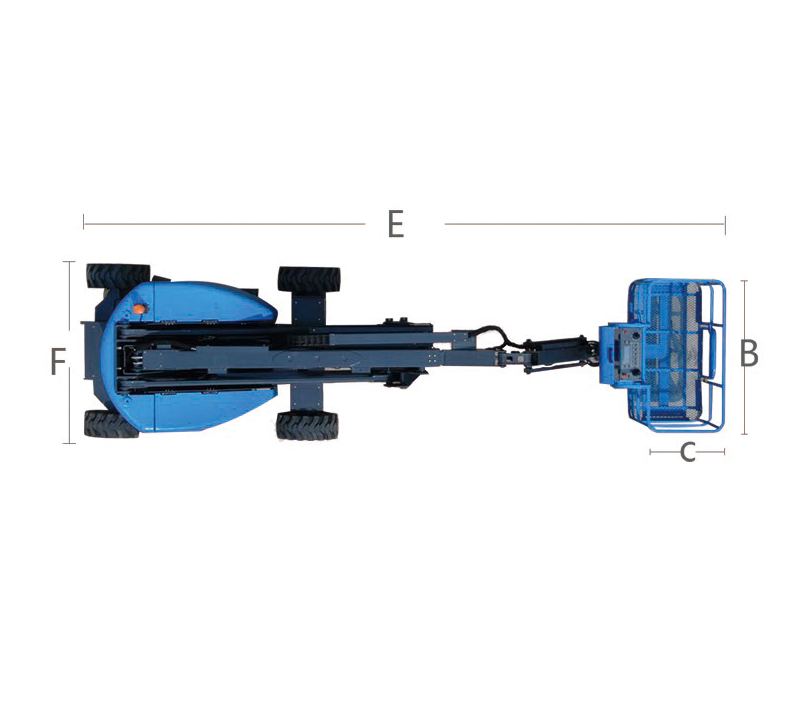

E-Overall Length	6.25m	5.50m	6.25m	7.70m	7.70m	9.10m
F-0verall Width	1.76m	1.50m	1.76m	2.32m	2.32m	2.49m

G-Wheelbase	2.0m	2.0m	2.0m	2.28m	2.28m	2.54m

H-Ground Clearance-middle	0.2m	0.12m	0.2m	0.28m	0.28m	0.41m
Performance
Platform Capacity	230kg	215KG	230KG	230KG	230KG	230KG
Max Workers (75kg)	2	2	2	2	2	2
Max working distance	×	×	×	9.60m	9.60m	11.50m
Max crossing distance	×	×	×	7.25m	7.25m	8.0m
Driving Speed (Strowed)	5.1km/h	4.0km/h	5.1km/h	5.30km/h	5.30km/h	5.10km/h
Driving Speed(Raised)	0.8km/h	0.65km/h	0.8km/h	1.10km/h	1.10km/h	1.10km/h
Turning Radius (Outside)	3.5m	3.45m	3.5m	4.40m	4.40m	5.80m
Turning Radius (Inside)	0.8m	1.20m	0.8m	1.40m	1.40m	2.7m
Platform leveling	Auto	Auto	Auto	Auto	Auto	Auto
Platform rotation	±80°	±80°	±80°	±80°	±80°	±80°

Turntable rotation angle	355°	355°	355°	355°	355°	355°
Gradeability	0.3	0.3	0.3	0.3	0.3	0.4

Max Working Angle	4°	3°	4°	5°	5°	5°
Tire(Drive Wheel)	26*122-16	22*7	26*122-16	26*12-16	26*12-16	36*14-20
Power
Power source (battery)	6V*8	6V*8	6V*8	6V*8	6V*8	6V*8

Drive steering	2WD*2WS	2WD*2wS	2WD*2wS	2WD*2ws	2WD*2wS	4WD*2wS

Weight
Gross	6500kg	4200kg	6700kg	7210kg	7200kg	8500kg
