The ATLAPEX Electric Articulating Boom Lift is a zero-emission, high-efficiency aerial work platform designed for flexible indoor and outdoor operations. It features flexible steering, extended battery life (with LA/LFP battery options), and exceptional load-bearing capacity. With a working height range of 11.3m to 22.5m and load capacities up to 350kg, it delivers reliable performance for construction, facility maintenance, and industrial tasks requiring precise elevation in tight spaces.
Max. Working Height
Max. Platform Height
Rated Load
The ATLAPEX Electric Articulating Boom Lift is an eco-friendly aerial work platform engineered for versatile operations in complex environments. Powered by advanced battery technology, it combines flexible maneuverability, long runtime, and robust load capacity to meet the demands of modern construction, facility maintenance, and industrial projects without emissions or noise pollution.
Key Highlights
Flexible Steering: Compact design and agile articulation enable easy navigation in narrow or confined workspaces.
Extended Battery Life: Long-lasting battery packs (LA/LFP options available) ensure uninterrupted operation for extended shifts.
Exceptional Load-Bearing Capacity: High load ratings support heavy tools and personnel, maximizing productivity.
Zero Emission Operation: Electric power eliminates exhaust fumes, making it ideal for indoor use and environmentally sensitive sites.

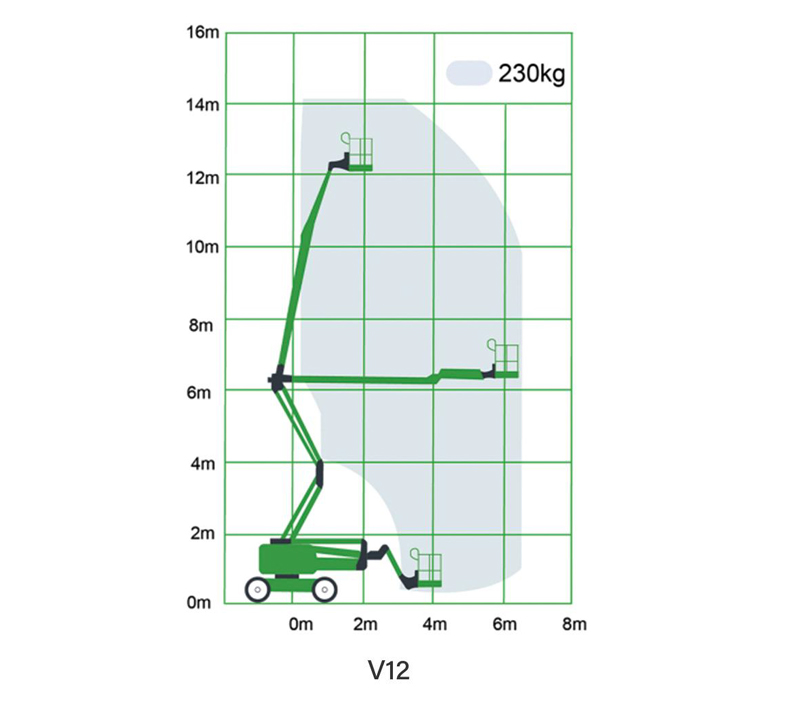

| Model | V12 | V12L | V14 | V14N | V16 | V16N | V18 | V20 |
| Max.Working Height | 14.2m | 13.55m | 15.8m | 15.8m | 17.8m | 17.7m | 20.2m | 22.5m |
| Max.Platform Height | 12.2m | 11.55m | 13.8m | 13.8m | 15.8m | 15.7m | 18.2m | 20.5m |
| Max.Up and Over Height | 6.2m | 5.4m | 7.1m | 7.0m | 7.6m | 7.5m | 8.0m | 9.4m |
| Max.Working Radius | 6.5m | 5.63m | 7.4m | 7.5m | 8.9m | 8.9m | 11.6m | 11.8m |
| Length(Stowed) | 5.6m | 4.13m | 6.3m | 6.5m | 6.9m | 7.2m | 8.49m | 8.49m |
| Width(Stowed) | 1.68m | 1.55m | 1.95m | 1.76m | 2.2m | 1.9m | 2.49m | 2.49m |
| Height(Stowed) | 1.98m | 2.06m | 2.0m | 2.0m | 2.1m | 2.0m | 2.38m | 2.38m |
| Max.Lift Capacity | 230kg | 215kg | 230kg | 230kg | 230kg | 230kg | 230kg/350kg | 230kg/350kg |
| Driving Gradeability | 30% | 36% | 35% | 35% | 30% | 30% | 45% | 45% |
| Weight | 4320kg | 3500kg | 4860kg | 5960kg | 6300kg | 6630kg | 9100kg | 10000kg |
| Battery | 48V/220Ah | 48V/220Ah | 48V/220Ah | 48V/300Ah | 48V/300Ah | 48V/300Ah | 48V/400Ah | 48V/400Ah |
