SPECIFICATIONS

  • Model

    CXD

  • Rated Load

    1T,1.5T

  • Lifting Height

    1600MM~9000MM

DESCRIPTIONS

This stand-on electric order picker offers rated loads of 1000kg (1.0T) or 1500kg (1.5T), with a lifting height range of 1600–9000mm. Powered by an AC drive system and USA CURTIS control, it features a wide-angle shock-absorption mast, South-central transmission, and electronic steering for quiet, portable operation. Key advantages include integrated low-noise hydraulics, electromagnetic regenerative braking, body shock absorption, and a lifting limit with thumb switch. Safety systems cover stepless speed regulation, multiple controller protection, automatic corner deceleration, and emergency braking. It supports optional free-lifting forks, lithium batteries, fixtures, and open axles, alongside non-standard OEM customization for high-level order picking operations.

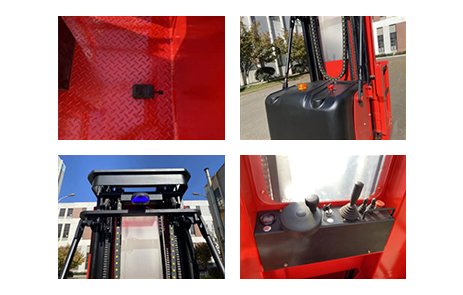

11

TECHNICAL PARAMETERS

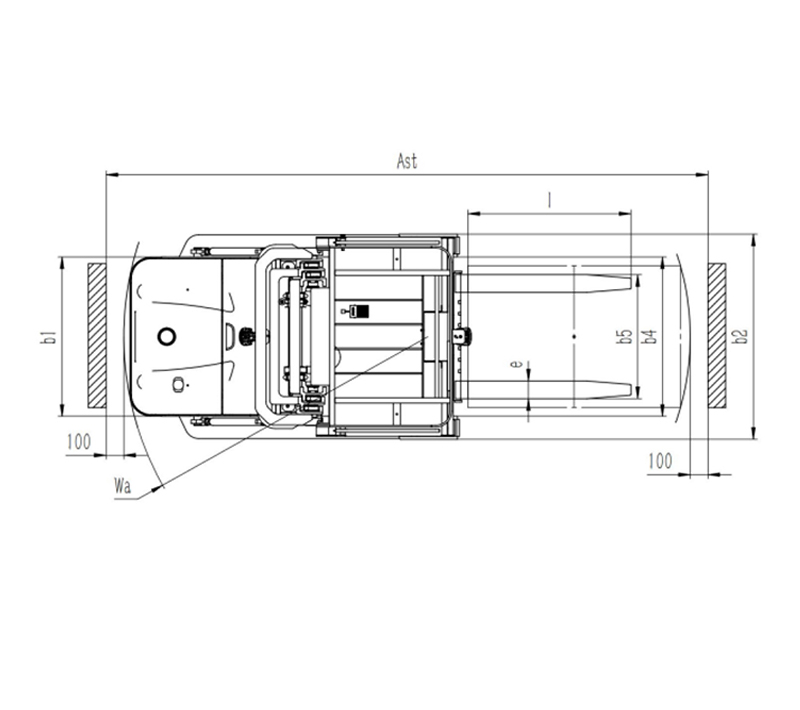

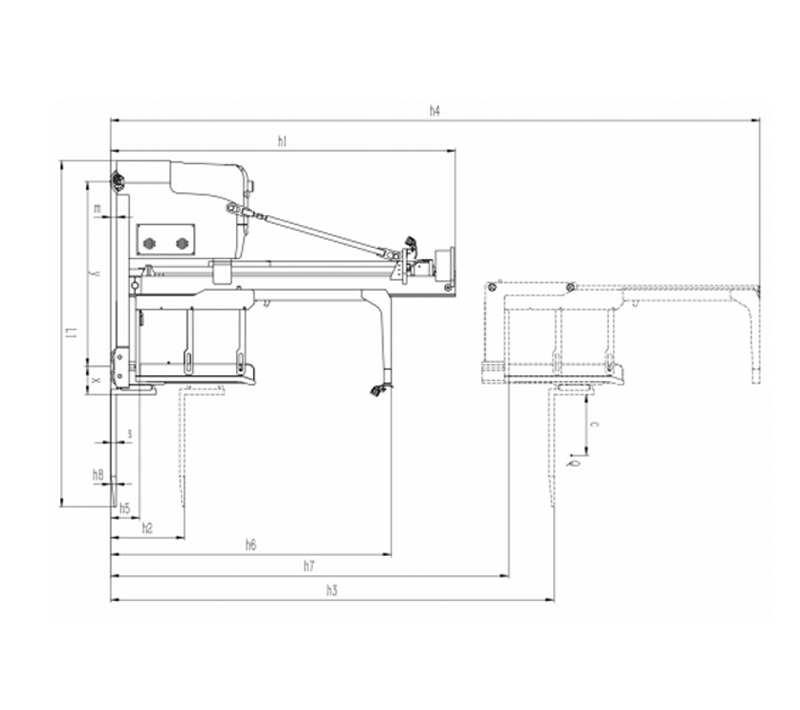

22 33
Model
CXD10-60CXD15-60CXD15-75
Type of power
Lead-acid batteryLead-acid battery
Driving type
Stand-on typeStand-on type
Rated loadQ(kg)1000 1500 1500
Overall lengthL1(mm)2830 2770 3015
Overall widthb1/b2900/1160900/1340900/1340
Fork dimensionss/e/(mm)920/100/40920/122/401070/122/40
Outside width of forksb5(mm)240-700680 260-700
Inside width of support legsb4900 1082 1082
Free lifting heighth2(mm)610 2890 3330
Mast closed heighth1(mm)2820 /610
Max height of mast during lifting(including load backrest)h4(mm)8057 8255 9557
Height of overhead guardh6(mm)2297 50 50
Minimum height of forks off the groundh8(mm)50 2305 2297
Minimum height of operating tableh5(mm)240 248 240
Maximum height of forks off the groundh3(mm)6370 6000 7870
Maximum height of operating tableh7(mm)6000 6198 7500
Height of vehicle off the groundm(mm)50 50 50
Battery,voltage/capacityV/Ah24/40024/42024/420
Weight of batterykg320 360 360
Vehicle weight(including battery)kg2850 3800 4080
Driving motor Power (S2-60MIN)kw1.6(AC)2.5(AC)2.5(AC)
Lifting motor powerkw
Tire
 PolyurethanePolyurethane
Tire dimensions,drive wheelmmφ230×75φ230x75φ230×75
Tire dimensions,bear wheelmmφ150×90φ150x90φ150×90
Number of wheels,front/rear(x=drive wheels)
4/2-1x4/2-1x4/2-1x
Track Width,drive Side(mm)685 685 685
Track Width,bear Side(mm)1030 1212 1212
Wheelbasey(mm)1515 1490 1566
Load centerC(mm)500 500 500
Front overhangx(mm)226 191 212
Turn radiusWa(mm)1715 1695 1770
Stacking channel width(pallet 1000x1200)1200 cross-fork directionAst(mm)3425 3375 3470
Stacking channel width(pallet 800×1200)1200 along fork directionAst(mm)3395 3345 3440
Full-load axle load,drive side/bear sidekg1075/27751545/37551660/3920
No-load axle load,drive side/bear sidekg1560/12902245/15552340/1740
Driving speed,full load/no loadkm/h4/54/54/5
Lifting speed,full load/no loadmm/s100/120100/120100/120
Descent speed,full load/no loadmm/s140/110140/110140/110
Maximum climbing,full load/no load (S2-5MIN)%2/62/52/5
Braking typeElectromagnetic brakeElectromagnetic brake
Steering typeElectronic steeringElectronic steering
Battery replacement methodLifting typeLifting type
