This 6-15T stand-on heavy electric pallet truck features a 10,000–15,000kg rated load, 48V battery, and AC drive system. It uses a USA CURTIS control system, double-cylinder hydraulics, and electromagnetic regenerative braking, with comprehensive safety protections (corner deceleration, emergency brake, etc.). It supports optional low-noise pumps, lift limiters, lithium batteries, and non-standard OEM customization, operating at ≤70dB(A) for heavy-duty logistics.
Model
Rated Load
Lifting Height
This 10-15T stand-on heavy electric pallet truck features a 10,000–15,000kg rated load, 48V battery, and AC drive system. It uses a USA CURTIS control system, double-cylinder hydraulics, and electromagnetic regenerative braking, with comprehensive safety protections (corner deceleration, emergency brake, etc.). It supports optional low-noise pumps, lift limiters, lithium batteries, and non-standard OEM customization, operating at ≤70dB(A) for heavy-duty logistics.

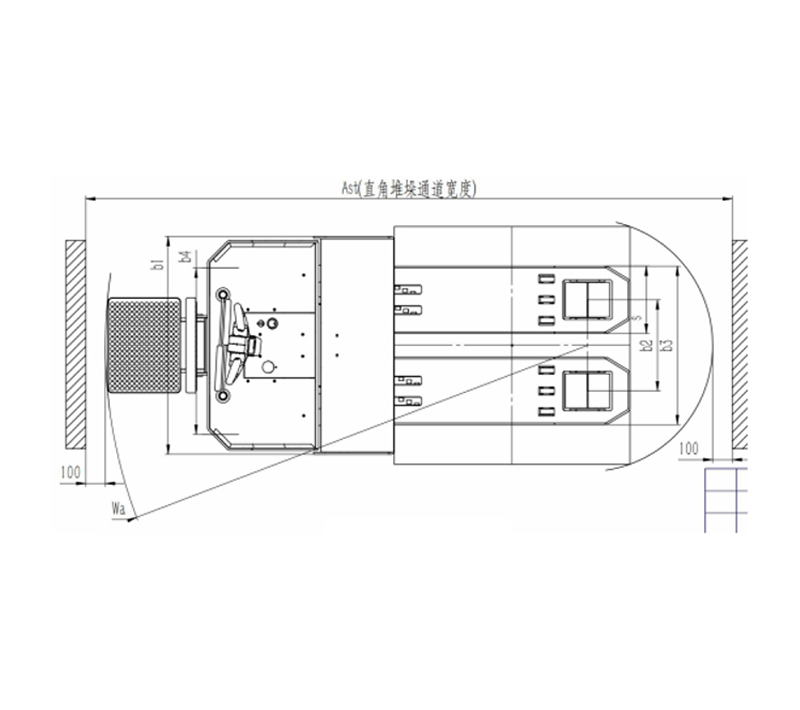

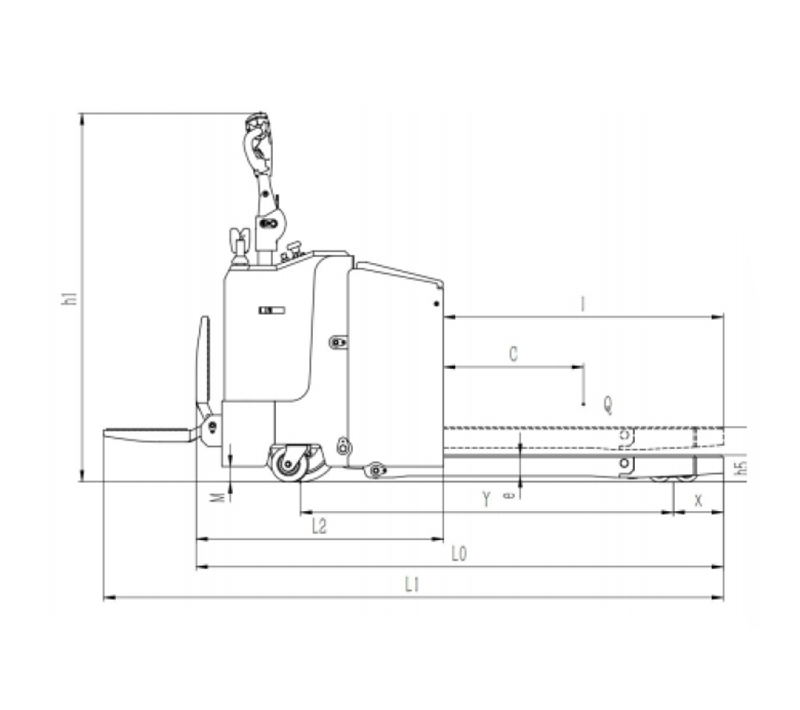

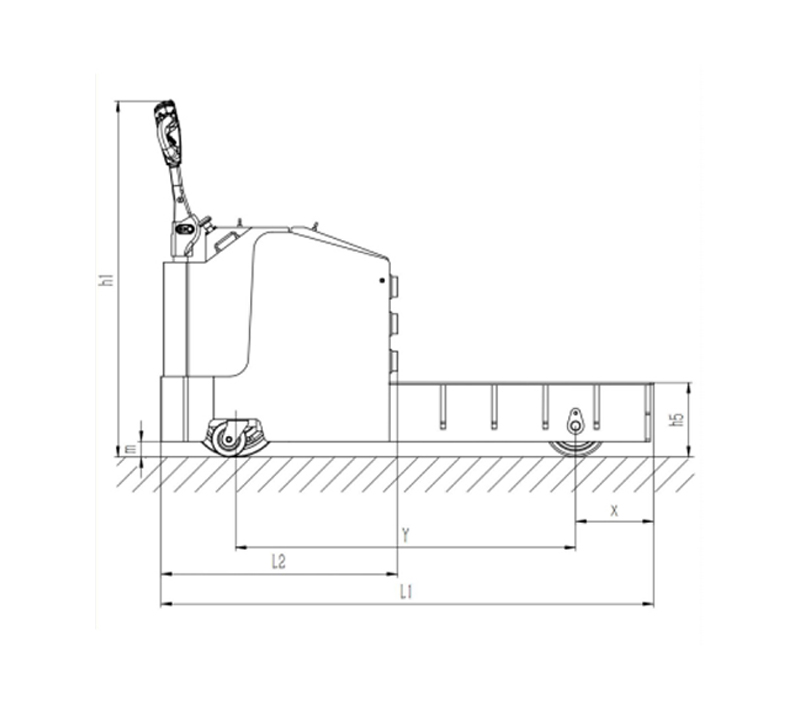

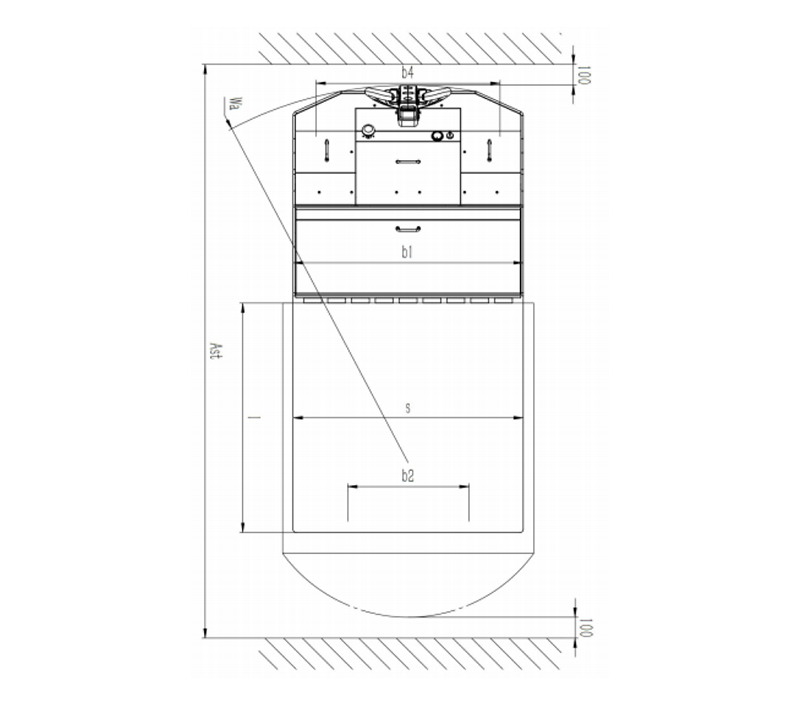

| Model | CBD60 | Model | CBD100 | CBD150 | ||||||||
| Type of power | Lead-acid battery | Type of power | Lead-acid battery | |||||||||
| Driving type | (Stand-on Pedal model) | Driving type | (Stand-on | (Walkie type) | ||||||||
| Rated load | Q(kg) | 6000 | Pedal model) | |||||||||
| Lifting height | h3(mm) | 215 | Rated load | 10000 | 15000 | |||||||
| Overall length(pedals retracted) | LO(mm) | 1947 | Lifting height | 235 | \ | |||||||
| Overall length(pedals down) | L1(mm) | 2344 | Overall length(pedals retracted) | 2261 | \ | |||||||
| Overall width | b1(mm) | 882 | Overall length(pedals down) | 2658 | 2116(Without | |||||||
| Fork dimensions | 55(70)/ | 72(82)/255//1200 | Pedal) | |||||||||
| Outside width of forks | b3(mm) | 715 | Overall width | 1100 | 1100 | |||||||
| Distance from front end of fork to rear | L2(mm) | 747 | Fork dimensions | 340/89(96)/1200 | 1100/-/1100 | |||||||
| Height of rear tail plate off the ground | m(mm) | 64 | Outside width of forks | 800 | \ | |||||||
| Height of fork off the ground(min) | h5(mm) | 95 | Distance from front end of fork to rear | 1061 | 1016 | |||||||
| Height of operation handle(max/min) | h1(mm) | 1530/1140 | Height of rear tail plate off the ground | 65 | 65 | |||||||
| Battery,voltage/capacity | V/Ah | 24/280 | Height of fork off the ground(min) | 115 | 320 | |||||||
| Weight of battery | kg | 245 | Height of operation handle(max/min) | 1580/1190 | 1530/1120 | |||||||
| Vehicle weight(including battery) | kg | 945 | Battery voltage/capacity | 48/300 | 48/400 | |||||||
| Driving Motor Power | kw | 2.5 | Weight of battery | 480 | 650 | |||||||
| Lifting motor power | kw | 2.2 | Vehicle weight(including battery) | 1880 | 2100 | |||||||
| Tire | Polyurethane | Driving motor power | 6.5 | 10 | ||||||||
| Dimensions of drive wheel | mm | φ230×75 | Lifting motor power | 3 | ||||||||
| Dimensions of bear wheel | mm | φ85*70 | Tire | Polyurethane | ||||||||
| Dimensions of balance wheel | mm | φ130x55 | Dimensions of drive wheel | φ343x135 | φ400×140 | |||||||
| Number of wheels(front/back)(x =drive wheel) | mm | 8/4-1x | Dimensions of bear wheel | φ110*175 | φ260*135 | |||||||
| Front wheel track | b2(mm) | 480 | Dimensions of balance wheel | φ150×50 | φ150×50 | |||||||
| Rear wheel track | b4(mm) | 654 | Number of wheels (front/back)(x=drive wheel) | 4/4-1x | 4/4-1x | |||||||
| Wheelbase | Y(mm) | 1460 | Front wheel track | 460 | 580 | |||||||
| Load Center | C(mm) | 600 | Rear wheel track | 840 | 880 | |||||||
| Front Overhang | X(mm) | 210 | Wheelbase | 1600 | 1460 | |||||||
| Turn radius(pedals retracted/down) | Wa(mm) | 1755/2150 | Load Center | 600 | 600 | |||||||
| Stacking channel width,pallet 1000X1200(1200 | Ast(mm) | 2495/2890 | Front Overhang | 215 | 335 | |||||||
| transverse)(pedals retracted/down) | Turn radius(pedals retracted/down) | 2060/2455 | 1810(Without | |||||||||
| Full load axle load,drive side/bear side | kg | 2407/4583 | Pedal) | |||||||||
| No-load axle load,drive side/bear side | kg | 715/230 | Stacking channel width,pallet 1200X1200(pedals | 2900/3295 | 2751(Without | |||||||
| Driving speed,full/no load | km/h | 4.0/5.0 | up/down) | Pedal) | ||||||||
| Lifting speed,full/no load | mm/s | 25/30 | Full load axe load,drive side/bear side | 7950/3930 | 14136/2964 | |||||||
| Descent speed,full/no load | mm/s | 29/16 | No-load axle load,drive side/bear side | 450/1430 | 796/1304 | |||||||
| Maximum climbing,full/no load | % | 3/8 | Driving speed,full load/no load | 4/5.5 | 4/5.5 | |||||||
| Braking type | Electromagnetic brake | Lifting speed,full load/no load | 25/30 | |||||||||
| Control mode | Mosfet control | Rate of descent,full load/no load | 29/16 | \ | ||||||||
| Vehicle noise | dB(A) | ≤70 | Maximum climbing,full load/no load | 3/8 | 2/8 | |||||||
| Braking type | Electromagnetic | |||||||||||
| Control type | Mosfet control | Mosfet control | ||||||||||
| Vehicle Noise | ≤70 | ≤70 | ||||||||||
