The ATLAPEX EPT15Q (1.5 Ton) and EPT20Q (2.0 Ton) Electric Pallet Trucks are industrial-grade, battery-powered material handling solutions designed to optimize efficiency in warehouses, logistics centers, retail distribution hubs, and manufacturing facilities. Engineered for reliability, user-friendliness, and high performance, these electric pallet jacks eliminate the physical exertion of manual handling while delivering exceptional maneuverability and durability for daily operational use.
Model
Rated Load
Engineered for 1.5/2.0 Ton loads, the ATLAPEX EPT15Q/EPT20Q electric pallet trucks combine maintenance-free battery power, leak-proof hydraulics, and ergonomic design to boost warehouse productivity. Featuring CAN-BUS intelligent monitoring, emergency safety controls, and durable PU wheels, these jacks deliver stable, low-maintenance performance for tight aisles and long shifts. Perfect for logistics, manufacturing, and retail operations.

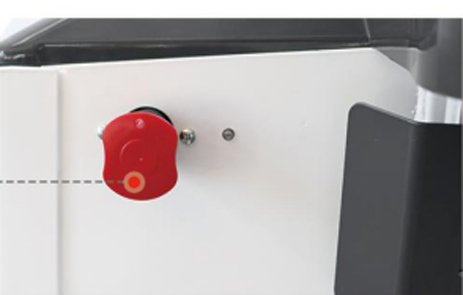

Emergency button,Make operator safety

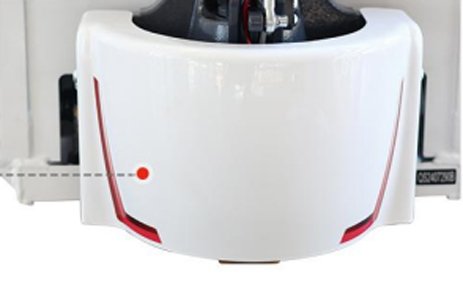

Thick metal cover Protect motor

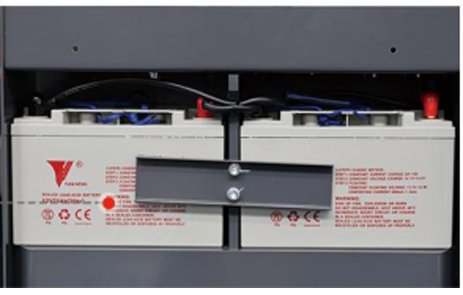

2 sets Lead-acid battery long time working

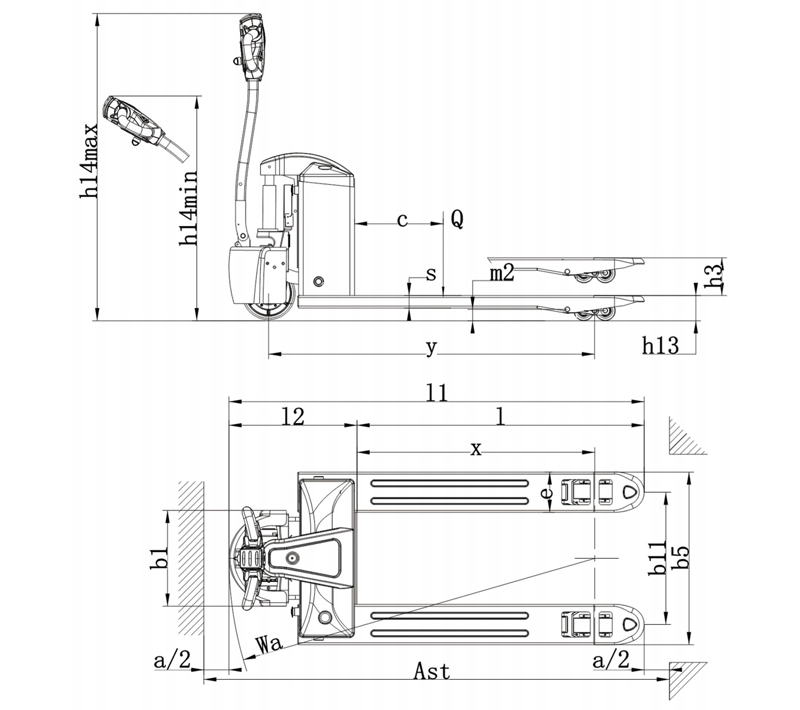

| Model | EPT15Q | EPT20Q | |||
| 1.3 | Power(battery,diesel,petrol,gas,manual) | Battery | Battery | ||
| 1.4 | Operator type | Pedestrian | Pedestrian | ||
| 1.5 | Load capacity/Rated load | Q(t) | 1.5 | 2 | |
| 1.6 | Load centre distance | C(mm) | 600 | 600 | |
| 1.8 | Load distance,centre of drive axle to fork | X(mm) | 944 | 944 | |
| 1.9 | Wheelbase | y(mm) | 1294 | 1294 | |
| 2.1 | Service weight | kg | 193 | 196(Lead acaid battery) 152(Liion battery) | |
| 2.2 | Axle loading,laden front/rear | kg | 588/1111 | 820/1331 | |
| 2.3 | Axle loading,unladen front/rear | kg | 145/43 | 114/34 | |
| 3.1 | Tires | PU | PU | ||
| 3.2 | Tire size,front | の×w(mm) | φ210×75 | φ210×75 | |
| 3.3 | Tire size,rear | の×w(mm) | φ80×70 | φ80×70 | |
| 3.4 | Additional wheels(dimensions) | の×w(mm) | \ | \ | |
| 3.5 | Wheels,number front/rear(x=driven wheels) | 1x/4 | 1x/4 | ||
| 3.6 | Track,front | b1o(mm) | \ | \ | |
| 3.7 | Track,rear | b1(mm) | 390/525 | 390/525 | |
| 4.4 | Lift height | h₃ (mm) | 105 | 105 | |
| 4.9 | Height of tillerin drive position min./max. | h4(mm) | 585/1220 | 585/1220 | |
| 4.15 | Height,lowered | h₁₃ (mm) | 75/85 | 75/85 | |
| 4.19 | Overall length | l1(mm) | 1648 | 1648 | |
| 4.2 | Length to face of forks | l2(mm) | 508 | 508 | |
| 4.21 | Overall width | b1(mm) | 560/685 | 560/685 | |
| 4.22 | Fork dimensions | s/e/l(mm) | 50/160/1150 | 50/160/1150 | |
| 4.25 | Distance between fork-arms | b₅ (mm) | 550/685 | 550/685 | |
| 4.32 | Ground clearance,centre of wheelbase | m2(mm) | 35 | 35 | |
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2196 | 2196 | |
| 4.34 | Aisle width for pallets 800X1200 lengthways | Ast(mm) | 2068 | 2068 | |
| 4.35 | Turning radius | Wa(mm) | 1393 | 1393 | |
| 5.1 | Travel speed,laden/unladen | Km/h | 4.2/4.5 | 4.6/4.7 | |
| 5.2 | Lift speed,laden/unladen | m/s | 0.02/0.023 | 0.021/0.03 | |
| 5.3 | Lowering speed,laden/unladen | m/s | 0.06/0.058 | 0.06/0.04 | |
| 5.8 | Gradeability,laden/unladen | % | 6/10 | 6/10 | |
| 5.1 | Service brake | Electromagnetic | Electromagnetic | ||
| 6.1 | Drive motor rating S260min | kw | 0.75 | 0.9 | |
| 6.2 | Lift motor rating at S310% | kw | 0.8 | 0.8 | |
| 6.3 | Battery acc.to DIN 43531/35/36 A,B,C,no | \ | \ | ||
| 6.4 | Battery voltage,nominal capacity K5 | V/Ah | 12/75×2 | 12/47×4(24-hour clock)(Lead acaid battery)48/20(Li ion battery) | |
| 6.5 | Battery weight(minimum) | kg | 18.8×2 | 10.5×4 | 7 |
| 6.6 | Energy consumption acc:to VDI cycle | KWh/h | \ | ||
| 8.1 | Type of drive control | DC speed control | DC speed control | ||
| 8.4 Sound level at driver's ear acc.to EN 12053 | dB(A) | ≤70 | ≤70 | ||
