The ATLAPEX EPT15V (1.5 Ton) and EPT20V (2.0 Ton) Electric Pallet Trucks are next-generation, lithium-powered material handling solutions, engineered as the perfect high-efficiency alternative to manual pallet jacks. Designed for warehouses, logistics centers, retail distribution hubs, and manufacturing facilities, these compact, agile jacks deliver effortless load transport, zero physical exertion, and exceptional durability for daily industrial operations.
Model
Rated Load
Engineered for 1.5/2.0 Ton loads, the ATLAPEX EPT15V/EPT20V electric pallet trucks feature replaceable lithium batteries, leak-proof hydraulics, and ergonomic controls for effortless warehouse transport. With CAN-BUS intelligent monitoring, emergency safety features, and compact, agile design, these jacks eliminate manual effort, boost productivity, and deliver low-maintenance performance for logistics, manufacturing, and retail operations.

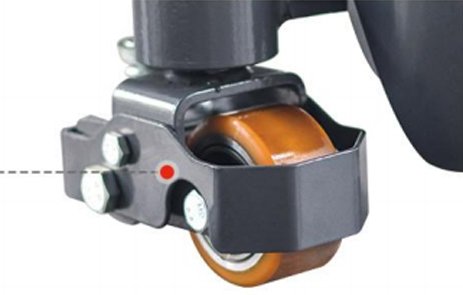

Balance roller for option

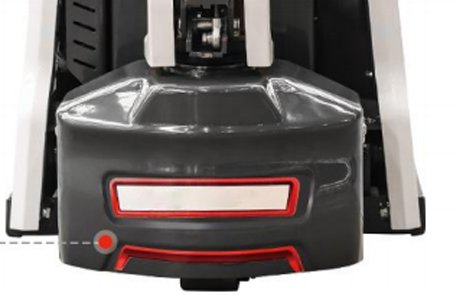

4 mm thickness motor cover Effectively protect the internal motor and the wiring device.

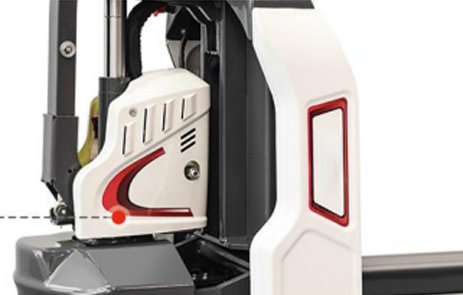

ABS dustproof plastic shell Make the internal controller and wiringmore clean and looks more nicer.

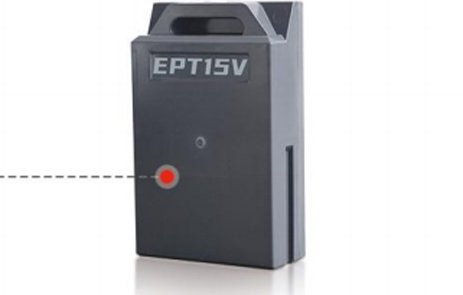

Replaceable battery Make the charging conveniently

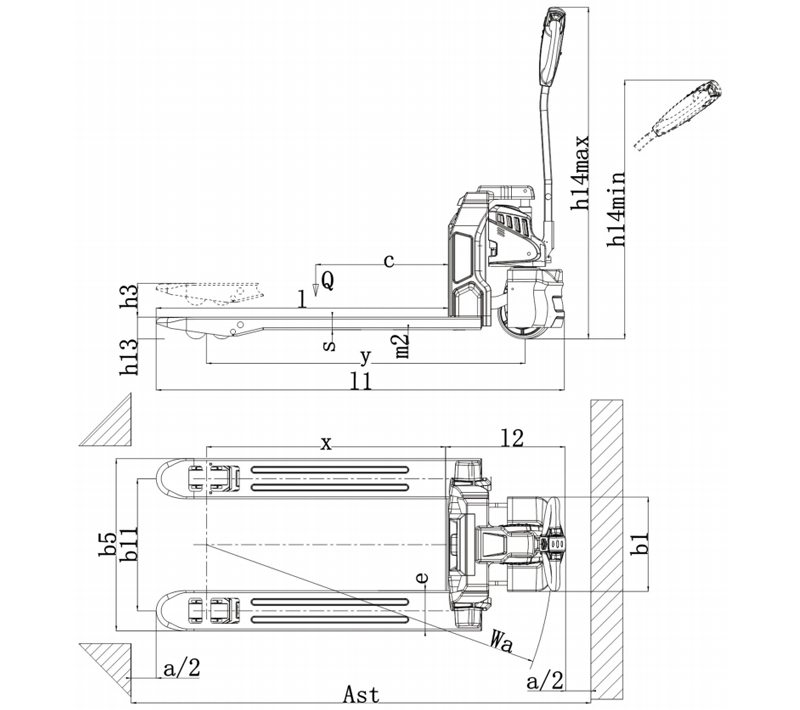

| Model | EPT15V | EPT20V | ||||
| 1.3 | Power(battery,diesel,petrol gas,manual) | Battery | ||||
| 1.4 | Operator type | Pedestrian | ||||
| 1.5 | Load capacity/Rated load | Q(t) | 1.5 | 2.0 | ||
| 1.6 | Load centre distance | C(mm) | 600 | |||
| 1.8 | Load distance,centre of drive axle to fork | X(mm) | 950 | |||
| 1.9 | Wheelbase | Y(mm) | 1270 | |||
| 2.1 | Service weight | kg | 142 145 | |||
| 2.2 | Axle loading,laden front/rear | kg | 828/1326 | |||
| 2.3 | Axle loading,unladen front/rear | kg | 100/34.5 | |||
| 3.1 | Tires | PU | ||||
| 3.2 | Tire size,front | ⑦×w(mm) | φ210×75 | |||
| 3.3 | Tire size,rear | ×w(mm) | φ80×70 | |||
| 3.4 | Additional wheels(dimensions) | ⑦×w(mm) | φ70×36 | |||
| 3.5 | Wheels,number front/rear(x=driven wheels) | 1x/4 | ||||
| 3.6 | Tread,front | b1o(mm) | \ | |||
| 3.7 | Tread,rear | b11(mm) | 390/525 | |||
| 4.4 | Lift height | h₃ (mm) | 110-115 100 | |||
| 4.9 | Height of tiller in drive position min./max. | h14(mm) | 585/1250 | |||
| 4.15 | Height,lowered | hi3(mm) | 75/85 | |||
| 4.19 | Overall length | li(mm) | 1620 | |||
| 4.20 | Length to face of forks | I2(mm) | 470 | |||
| 4.21 | Overall width | b1(mm) | 550/685 | |||
| 4.22 | Fork dimensions | s/e/l(mm) | 50/160/1150 | |||
| 4.25 | Distance between fork-arms | b₅ (mm) | 550/685 | |||
| 4.32 | Ground clearance,centre of wheelbase | mz(mm) | 35 | |||
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2182 | |||
| 4.34 | Aisle width for pallets 800X1200 lengthways | Ast(mm) | 2052 | |||
| 4.35 | Turning radius | Wa(mm) | 1380 | |||
| 5.1 | Travel speed,laden/unladen | km/h | 4.2/4.5 | |||
| 5.2 | Lift speed,laden/unladen | m/s | 0.017/0.02 | |||
| 5.3 | Lowering speed,laden/unladen | m/s | 0.04/0.04 | |||
| 5.8 | Gradeability,laden/unladen | % | 6/10 | |||
| 5.10 | Service brake | Electromagnetic | ||||
| 6.1 | Drive motor rating S260min | kw | 0.75 | 0.9 | ||
| 6.2 | Lift motor rating at S310% | kw | 0.5 | 0.8 | ||
| 6.3 | Battery acc.to DIN 43531/35/36 A,B,C,no | \ | ||||
| 6.4 | Battery voltage,nominal capacity K5 | V/Ah | 24/20(30,40,50) 48/15(20) | |||
| 6.5 | Battery weight(minimum) | kg | 5.5 | |||
| 6.6 | Energy consumption acc.to VDI cycle | KWh/h | \ | |||
| 8.1 | Type of drive control | DC speed control | ||||
| 8.4 | Sound level at driver`s ear acc.to EN 12053 | dB(A) ≤70 | ||||
