The ATLAPEX SES10 / SES12 / SES15 Electric Self-Lifting Stackers are versatile, compact material handling solutions designed to streamline freight loading, unloading, and vertical transport in warehouses, logistics centers, retail stockrooms, and manufacturing facilities. Engineered for efficiency and ease of use, these self-lifting stackers eliminate manual lifting effort, making them ideal for light-to-medium duty vertical material handling tasks.
Model
Rated Load
Engineered for 1.0/1.2/1.5 Ton loads and 900-1650mm lifting heights, the ATLAPEX SES series electric stackers combine replaceable lithium power, leak-proof hydraulics, and ergonomic controls to streamline warehouse loading and vertical transport. Featuring CAN-BUS intelligent monitoring, emergency safety features, and compact design, these stackers eliminate manual effort, boost productivity, and deliver low-maintenance performance for logistics, retail, and manufacturing operations.

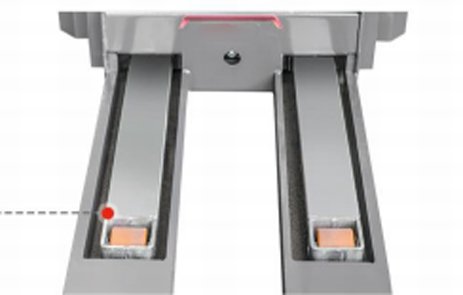

Solid metal leg The legs are made of solid flat iron forhigher load-bearing strength.

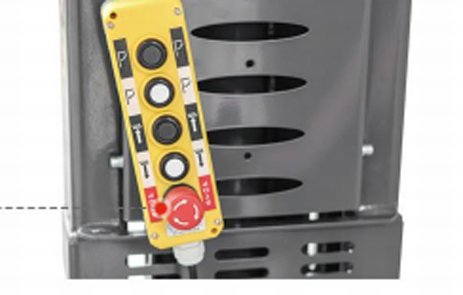

Magnetic control It can hold on the metal easily andnot possible to lose.

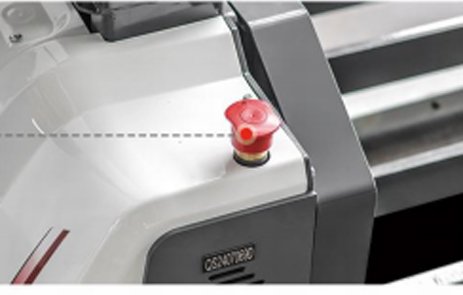

Emergency button Located where you can easily reach andcontrol, assuring safety for people and vehicle.

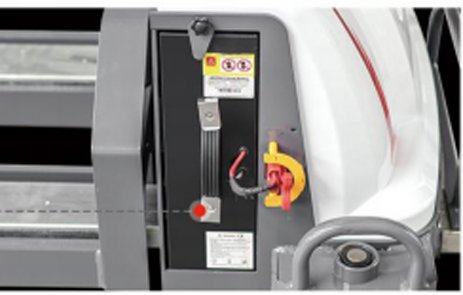

Replaceable battery Designed on side of the vehicle, which is easyto replace and charge easily.

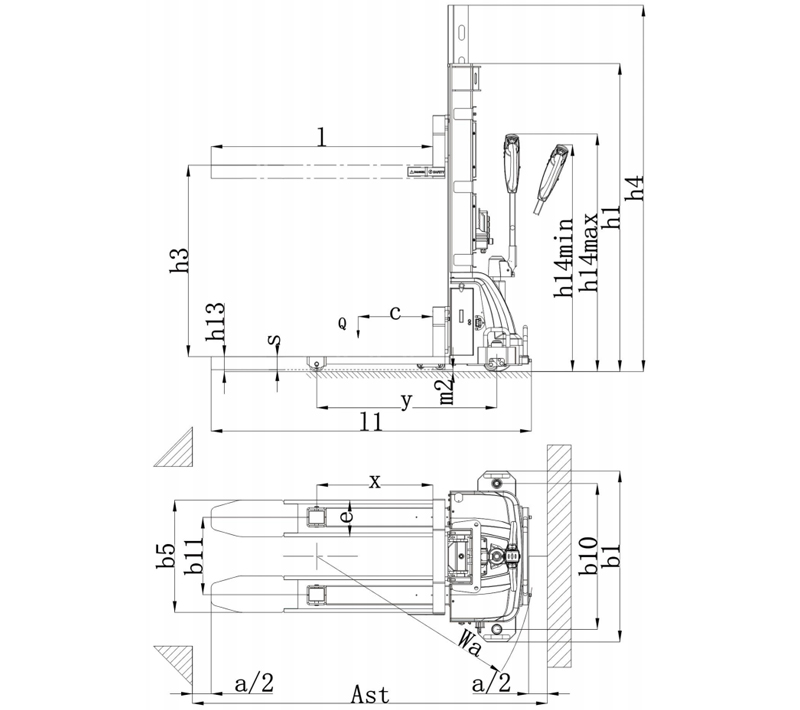

| Power(battery,diesel,petrol,gas,manual) | Battery | |||
| Operator type | Pedestrian | |||
| Load capacity/Rated load | Q(t) | 1.0 1.2 1.5 | ||
| Load centre distance | C(mm) | 400 | ||
| Load distance,centre of drive axle to fork | X(mm) | 622 | ||
| Wheelbase | Y(mm) | 980 | ||
| Service weight | kg | 430 | ||
| Axle loading,laden front/rear | kg | \ | ||
| Axle loading,unladen front/rear | kg | |||
| Tires | PU | |||
| ①×w(mm) | φ190×70 | |||
| Tire size,rear | ⑦×w(mm) | φ80×70 | ||
| Additional wheels(dimensions) | ⑦×w(mm) | φ75×35 | ||
| Wheels,number front/rear(x=driven wheels) | 1X+2/2 | |||
| b1o(mm) | 780 | |||
| Track,rear | b11(mm) | 417 | ||
| Lowered mast height | hi(mm) | 1450 | ||
| Free Lift height | h2(mm) | |||
| Lift height | h₃ (mm) | 1015 | ||
| Extended mast height | h4(mm) | 2480 | ||
| Initial lift | hs(mm) | 105 | ||
| Height of tiller in drive position min./max. | h4(mm) | 740/1250 | ||
| 85 | ||||
| Overall length | l (mm) | 1730 | ||
| l2(mm) | 527 | |||
| Overall width | bi(mm) | 920 | ||
| s/e/l(mm) | 70/195/1220 | |||
| Distance between fork-arms | b₅ (mm) | 560/600 | ||
| mz(mm) | 10 | |||
| Aisle width for pallets 1000X1200 crossways | Ast(mm) | 2089 | ||
| Ast(mm) | 2083 | |||
| Turning radius | Wa(mm) | 1180 | ||
| Km/h | 4.0/4.2 | |||
| Lift speed,laden/unladen | m/s | 0.06/0.07 | ||
| m/s | 0.1/0.09 | |||
| Max.gradeability,laden/unladen | % | |||
| Electromagnetic | ||||
| Drive motor rating S260min | kw | 0.85 | ||
| Lift motor rating at S34.5% | kw | 2.2 | ||
| Battery ac.to DIN 43531/35/36 A,B,C,no | \ | |||
| V/Ah | 48/25(48/30) 48/30 | |||
| B Battery weight +/-5% | kg | 30 | ||
| \ | ||||
| Type of drive control | DC speed control | |||
| ≤70 | ||||
