QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Max. Working Height

    24M~28M

  • Max. Platform Height

    22M~26M

  • Standard Working Capacity

    250KG~300/460KG

DESCRIPTIONS

The ATLAPEX Telescopic Boom Lift (Electric Control Series) is a robust, high-performance aerial work platform designed for demanding outdoor operations. It features a 45% climbing ability, large horizontal ductility, and imported engine power, delivering strong traction and stable operation. With working heights up to 28m, platform capacities up to 460kg, and 360° turntable rotation, it is ideal for high-altitude construction, industrial maintenance, and large-scale engineering projects requiring precision and reliability.


Bottom control

1-One person can operate easily running and lifting of the machine.

Working platform

2-80°rotation, wide working area,automatic leveling function.

Upper control

3-One person can operate easily running and lifting of the machine.

Tires

4-Large solid tire, excellent off-road performance.

TECHNICAL PARAMETERS

_20260318095548_164_48 _20260318095550_166_48 _20260318095549_165_48
ModelQYZB-22DQYBZ-26D

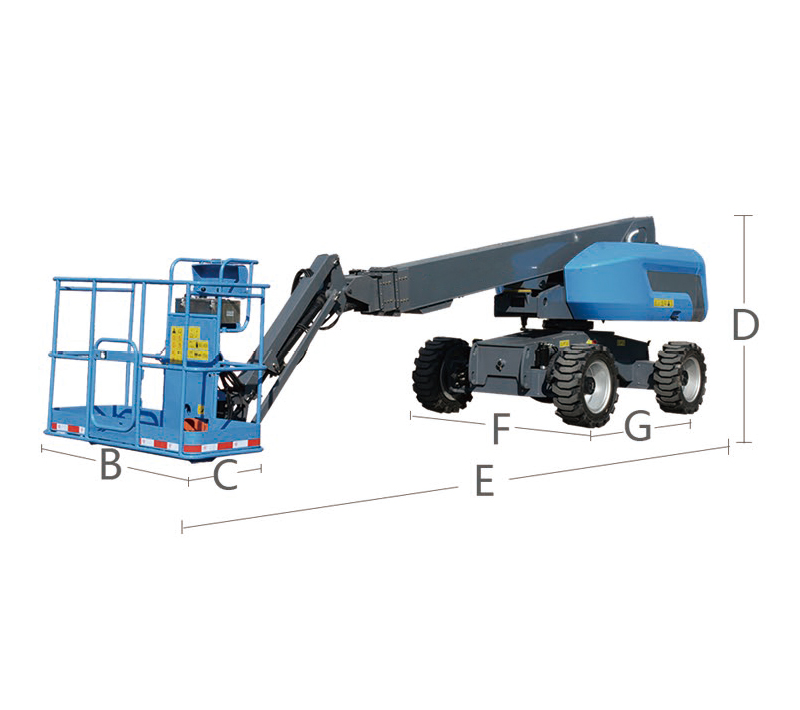

Size
Working Height23.80m27.8m
A-Platform Height-Elevated21.8m25.8m
B-Platform Length2.44m2.44m
C-Platform Width0.91m0.91m
D-Overall Height2.7m2.9m
E-OverallLength10.80m12.50m
F-Overall Width2.49m2.49m
G-Wheelbase2.5 3m

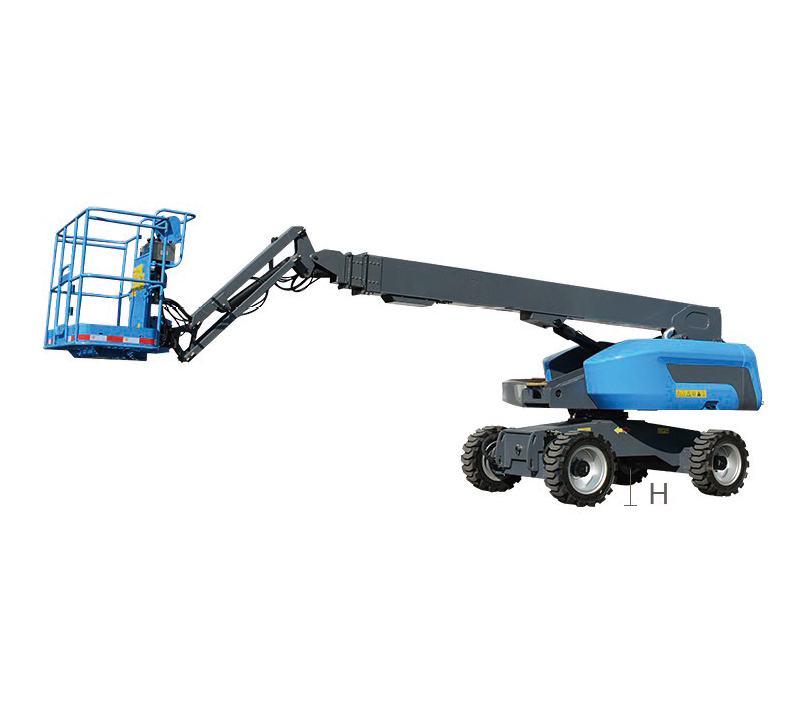

H-Ground Clearance-middle0.45m0.43m
Performance
Platform Capacity250kg300/460KG
Max Workers(75kg)
Max working radius15.8m16/18.0m
Driving Speed (Strowed)5.2km/h5.2km/h
Driving Speed (Raised)1.1km/h1.1km/h
Turning Radius(Outside)5.6m5.98m
Turning Radius (Inside)2.4m2.5m
Turntable tail scanning1.4m1.48m
Platform levelingAutoAuto
Platform rotation160°160°
Turntable rotation angleContinuous  360°Continuous  360°
Gradeability45%45%
Max Working Angle
Tire(Drive Wheel)36*14-20385/65--24
Power
Fuel tank150L150L
Drive steering4*4*24*4*2
Weight
Gross11800kg11800kg
