The ATLAPEX CDD-Y series electric terrain stacker is a robust, walkie-type material handling solution designed for reliable performance in demanding environments. With a rated load capacity of 1000–1500 kg and a lifting height range of 1500–3000 mm, it is engineered to deliver exceptional versatility and efficiency for both single-sided and double-sided pallet operations.
Model
Rated Load
Max Lifting Height
The ATLAPEX CDD-Y series electric terrain stacker is a robust, walkie-type material handling solution designed for reliable performance in demanding environments. With a rated load capacity of 1000–1500 kg and a lifting height range of 1500–3000 mm, it is engineered to deliver exceptional versatility and efficiency for both single-sided and double-sided pallet operations.

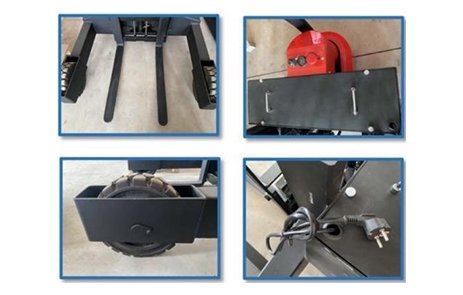

Advantage: AC drive motor, strong climbing force; high strength support legs, forks; high strength forklift specialized mast channel; high capacity free-maintain battery; built-in smart charger; multi-function integrated handle; high-power lifting hydraulic power station. Safety: Stepless speed regulation, safety and mute; controller multiple automatic protection system; emergency reverse anti-collision device / emergency power cut-off switch; automatic deceleration in corners.

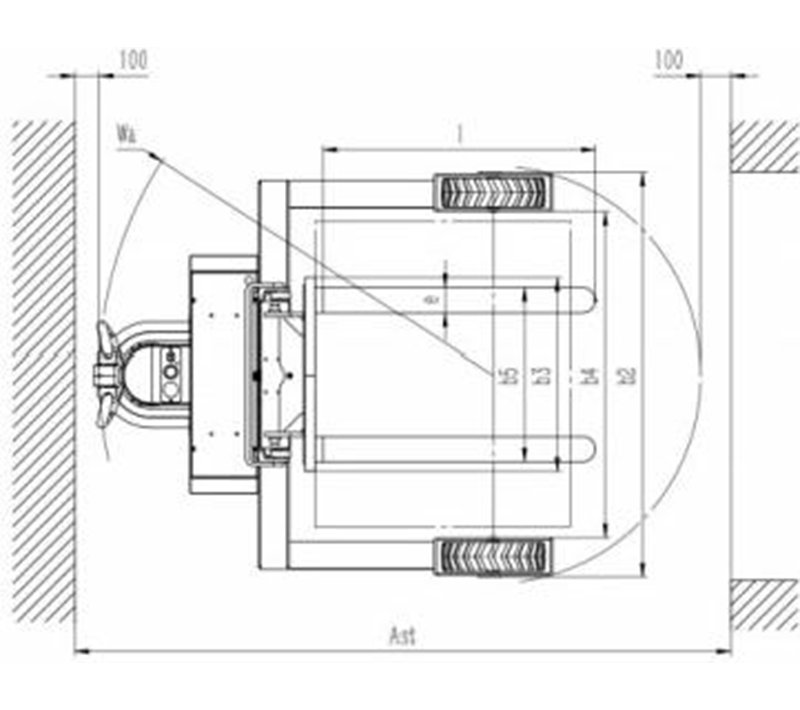

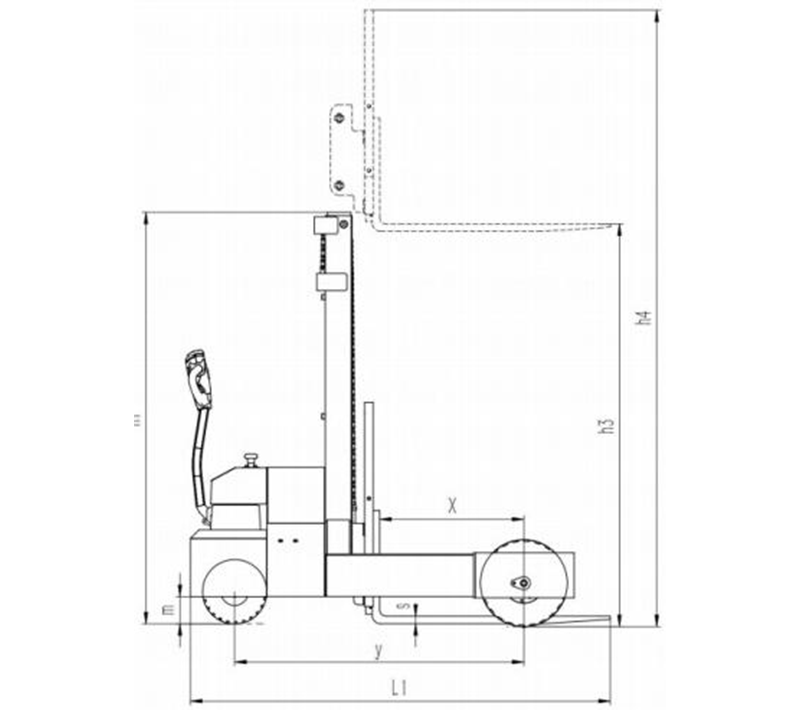

| Model | CDD10Y | CDD15Y | ||||||
| Type of power | Lead-acid battery | |||||||
| Driving type | Walkie type | |||||||
| Rated load | kg | 1000 | 1500 | |||||
| Lifting height | h3(mm) | 2500 | 2500 | |||||
| Overall length | L1(mm) | 1954 | 1954 | |||||
| Overall width | b2(mm) | 1590 | 1590 | |||||
| Fork dimensions | s/e/l(mm) | 35/100/1070 | 35/100/1070 | |||||
| Inside width of support legs | b4(mm) | 1280 | 1280 | |||||
| Fork outside width adjustment range | b5(mm) | 220-680 | 220-680 | |||||
| Mast closed height | h1(mm) | 1915 | 1915 | |||||
| The maximum height of the mast during lifting (including the load backrest) | h4(mm) | 3510 | 3510 | |||||
| Outside width of load backrest | b3(mm) | 756 | 756 | |||||
| Height of vehicle off the ground(minimum) | m(mm) | 127 | 127 | |||||
| Battery,voltage/capacity | V/Ah | 24/100 | 24/100 | |||||
| Weight of battery | kg | 64 | 64 | |||||
| Vehicle weight(including battery) | kg | 920 | 920 | |||||
| Driving motor power | kw | 1.5 | 1.5 | |||||
| Lifting motor power | kw | 2.2 | 2.2 | |||||
| Tire | ||||||||
| Dimensions of bear wheels | Rubber/ Polyurethane | φ300×80 | φ300×80 | |||||
| Dimensions of drive wheels | 4.0-8 | 4.0-8 | ||||||
| Number of wheel (front/back) | x=Dive wheel | 2/1x | 2/1x | |||||
| Wheelbase | y(mm) | 1343 | 1343 | |||||
| Load center | C(mm) | 500 | 500 | |||||
| Front overhang | X(mm) | 666 | 666 | |||||
| Turn radius | Wa(mm) | 1550 | 1550 | |||||
| Stacking channel width,pallet 1000X1200(1200 transverse) | Ast(mm) | 2570 | 2570 | |||||
| Full-load axle load,drive side/bear side | kg | 595/1325 | 750/1670 | |||||
| No-load axle load,drive side/bear side | kg | 570/350 | 570/350 | |||||
| Driving speed,full load/no load | km/h | 3.5/4 | 3.5/4 | |||||
| Maximum climb,full load/no load | % | 6/10 | 5/10 | |||||
| Control mode | Mosfet control | |||||||
| Noise level | dB(A) | ≤70 | ≤70 | |||||
