QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Max. Working Height

    10M~17.85M

  • Max. Platform Height

    8M~15.85M

  • Rated Load

    200KG

DESCRIPTIONS

The ATLAPEX Towable Boom Lift is a versatile, trailer-mounted aerial lift engineered for rapid deployment across diverse job sites. Its towable design eliminates the need for specialized transport, while compact dimensions ensure easy access to narrow spaces—making it perfect for short-term projects, facility maintenance, and outdoor event installations.


Key Highlights

Lightweight & Energy-Saving: Reduced weight and efficient power use lower operational costs and simplify transport.

Automatic Leveling: Built-in platform leveling (with optional one-key leveling) ensures stable operation on uneven ground.

Vehicle-Towable Design: Compatible with standard passenger vehicles for quick, cost-effective site-to-site movement.

Compact Maneuverability: Slim dimensions deliver excellent trafficability in confined or urban environments.


TECHNICAL PARAMETERS

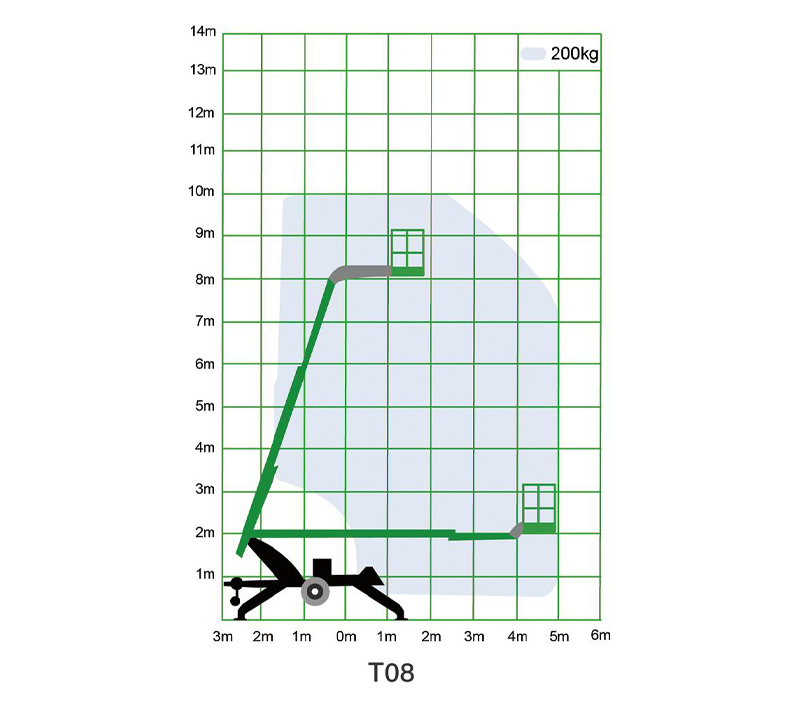

1
ModelT08T10T12T14T16
Max.Working Height10m12m14m15.8m17.85m
Max.Platform Height8m10m12m13.8m15.85m
Max.Working Radius5m5.5m5.9m6.6m7.1m
Length(Stowed)4.7m5m5.3m5.2m5.7m
Width(Stowed)1.5m1.5m1.5m1.6m1.6m
Height(Stowed)1.9m1.9m1.9m2.15m2.15m
Weight1490kg1550kg1640kg1900kg1980kg
Max.Lift Capacity200kg200kg200kg200kg200kg
Driving Gradeability45%45%45%45%45%
Battery24V/220Ah24V/220Ah24V/250Ah24V/220Ah24V/220Ah
