QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Model

    QDD-C

  • Rated Load

    3T, 5T

DESCRIPTIONS

This stand-on pedal towing tractor has a rated traction capacity of 3000–5000kg, powered by an AC drive system and USA CURTIS control. It features a multi-function integrated handle, electronic steering, and electromagnetic regenerative braking, with carbon-brush-free, maintenance-free motors. Key advantages include drive/pedal/handle shock absorption, inductive proximity switches, and load-bearing ball head traction. Safety systems cover stepless speed regulation, multiple controller protection, emergency reverse/braking, automatic corner deceleration, and cylinder safety shut-off valves. It supports optional side-pull battery structures, lithium batteries, and non-standard OEM customization for efficient material towing.

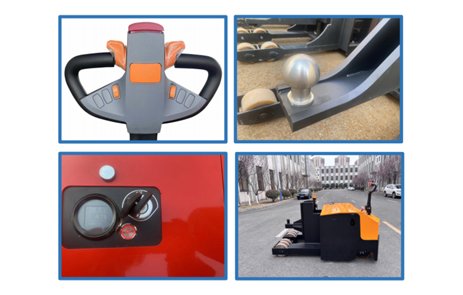

_20260313143634_1981_48

TECHNICAL PARAMETERS

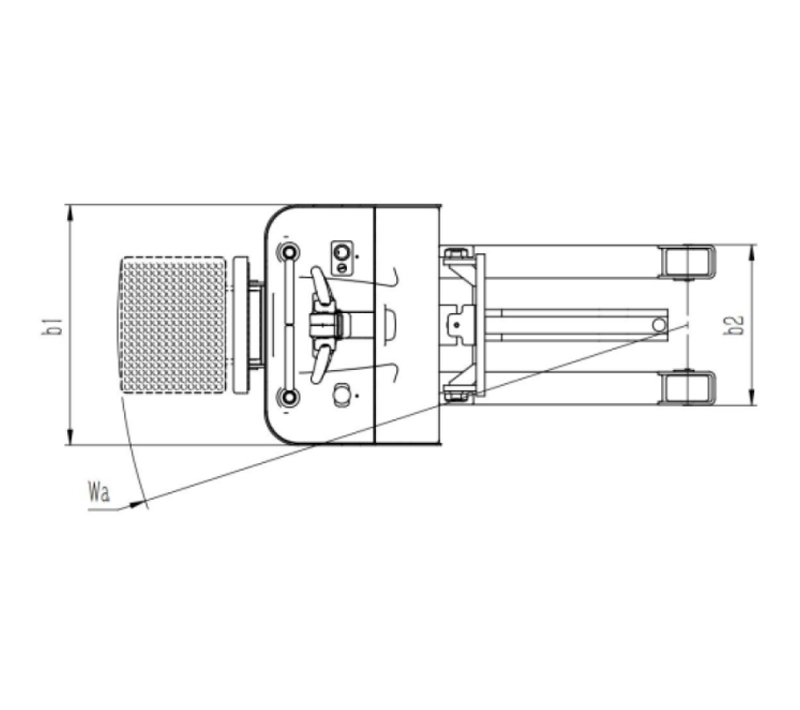

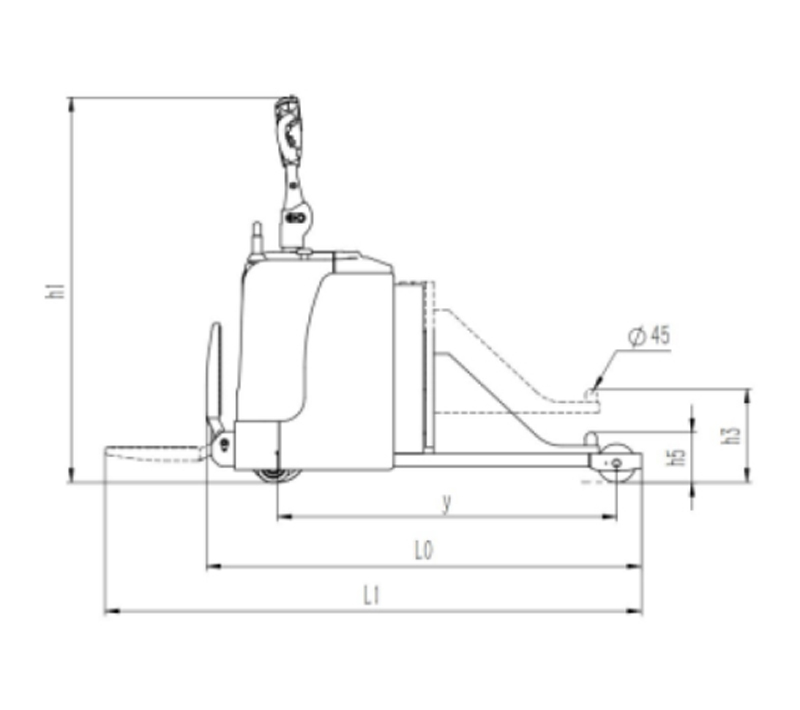

_20260313143636_1982_48 _20260313143636_1983_48
Model
QDD30C                          QDD50C
Type of power
Lead-acid battery
Driving type
(Stand-on Pedal model)
Rated traction capacitykg3000 5000
Overall length (pedals retracted/down)L0/L1(mm)1700/20971653/2050
Overall widthb1(mm)846 846
Overall heighth1(mm)1510 1510
Type of traction
Load-bear type
Bear ball head diametermmφ45φ50
Bear ball head height off the ground(max)h3(mm)365 365
Bear ball head height off the ground(min)h5(mm)195 195
Battery,voltage/capacityV/Ah24/21024/210
Weight of batterykg190 190
Vehicle weight(including battery)kg860 880
Driving motor powerkw1.6 2.2
Lifting motor powerkw2.2 2.2
Tire
Polyurethane
Number of wheels(front/back)(x=drive
wheel)
mm2/1x-24/1x-2
Tire dimensions,drive wheelmmφ230×75φ230×75
Tire dimensions,load wheelmmφ150x90φ150×75
Dimension of balance wheelmmφ130x55φ130x55
Track width,bear Sidemm445 381
Track width,drive Sidemm604 604
Wheelbasey(mm)1326 1280
Outside width of support legsb2(mm)560 560
Tum radius(pedals retracted/down)Wa(mm)1620/20121575/1967
Full load axle load,drive side/bear sidekg810/1550980/2400
No-load axle load,drive side/bear sidekg625/235620/260
Drive speed,full load/no loadkm/h4-54-5
Maximum climb,full load/no load%5-83-8
Control mode
Hall accelerator
Vehicle noisedB(A)≤70≤70
