The ATLAPEX Forklift Style & Sleeve Vertical Mast Lift with JIB is a compact, precision aerial work platform designed for narrow indoor and confined-space operations. It features a robust mast structure, extendable jib for flexible positioning, and comprehensive safety systems. With a maximum working height of 9.7m–11.2m and 200kg load capacity, it is ideal for facility maintenance, window cleaning, and industrial tasks requiring accurate elevation in tight environments.
Max. Working Height
Max. Platform Height
Rated Load
The ATLAPEX Forklift Style & Sleeve Vertical Mast Lift with JIB is a specialized vertical lift engineered for precision operations in tight indoor and outdoor spaces. Its compact chassis, extendable jib, and robust mast design enable flexible positioning while ensuring easy navigation through narrow doorways and corridors—perfect for facility maintenance, window cleaning, and industrial applications.
Key Highlights
Compact & Maneuverable: Slim chassis and tight turning radius allow access to confined spaces and narrow work areas.
Flexible Positioning: Extendable jib with 120°–130° articulation and 345°–352° turntable rotation for precise alignment with targets.
Robust Safety Systems: Equipped with automatic braking, tilt sensing, overload protection, and emergency descent systems for maximum operator safety.
Intuitive Operation: Proportional joystick controls and self-locking platform gate simplify operation and reduce training time.

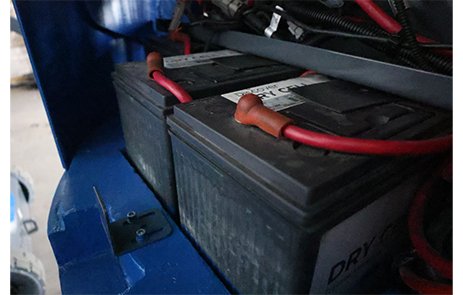

maintenance-free battery

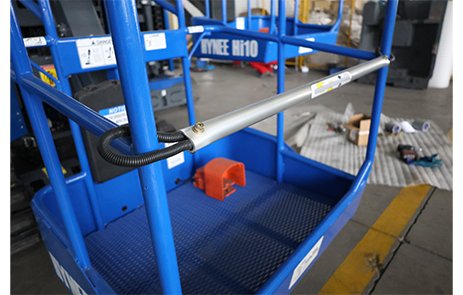

platform self-locking door

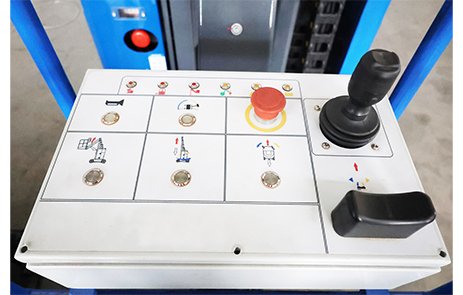

upper control panel

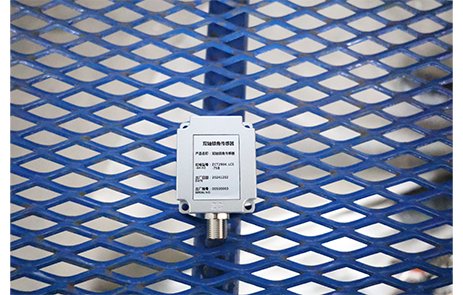

dual-axis inclination sensor

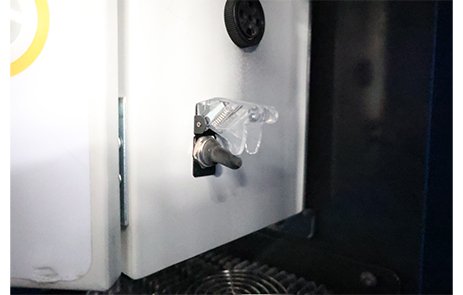

automatic brake release

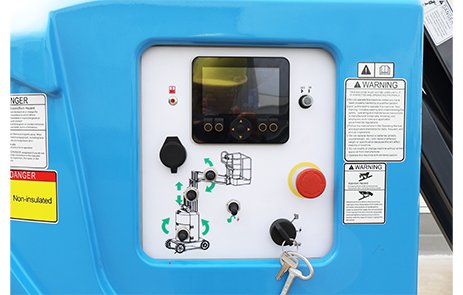

lower control panel
| Model | AMWP10-7100 | AMWP11-7100 | Model | AMWP11.2-8100 |
| Max.Working Height | 9.7m | 10.65m | Max.Working Height | 11.2m |
| Max.Platform Height | 7.7m | 8.65m | Max.Platform Height | 9.2m |
| Working Outreach | 3.36m | 3.61m | Working Outreach | 3m |
| Overall Length | 2.78m | 2.88m | Upand over height | 7.89m |
| Overall Width | 1m | 1m | Guardrail Height | 1.1m |

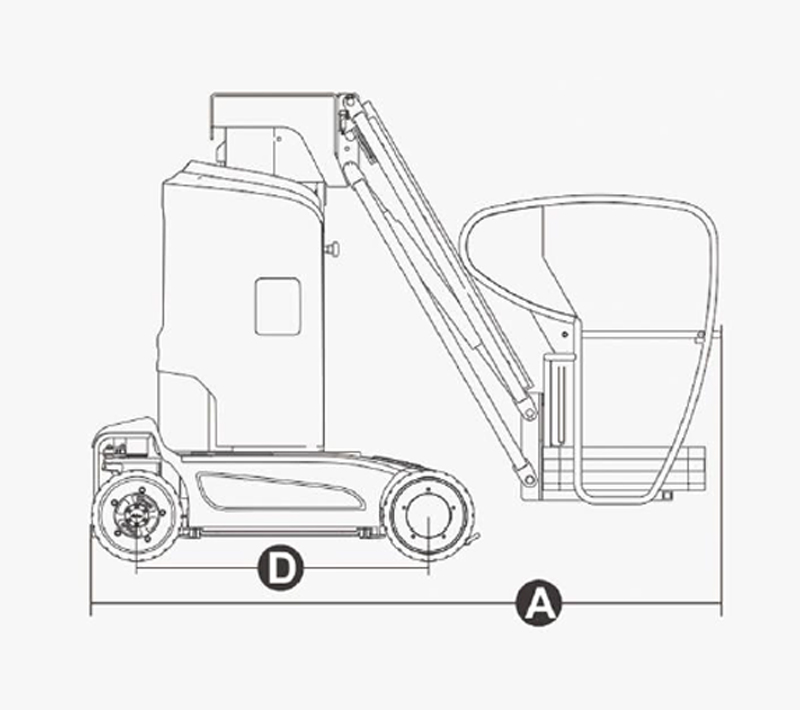

| Overall Height(stowed) | 1.99m | 2.14m | OverallLength A | 2.53m |

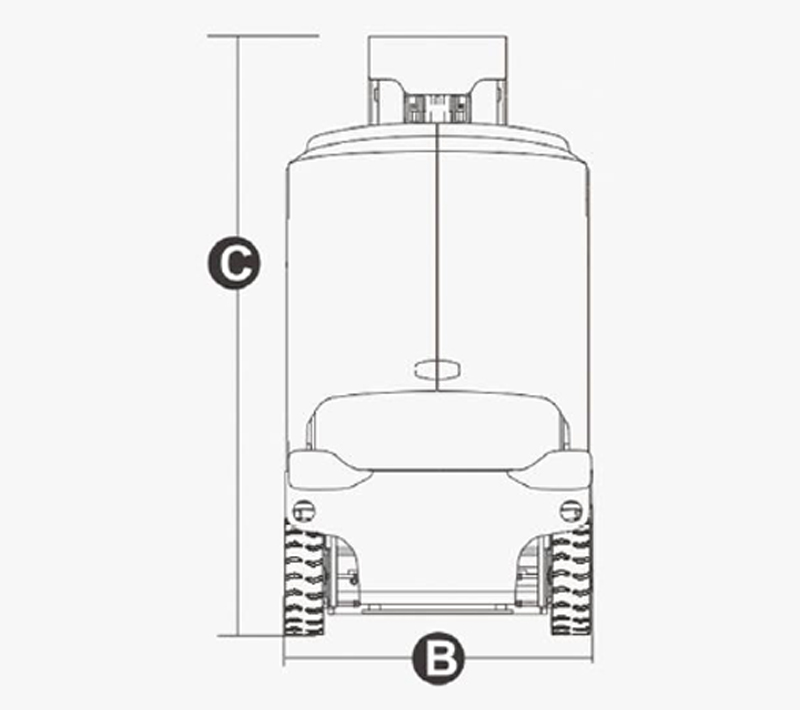

| Upand Over Height | 6.3m | 7m | Overall width B | 1.0m |
| Platform Dimension | 0.8*0.93m | 0.8*0.93m | Overall Height(stowed)C | 1.99m |
| Ground Clearance(Stowed) | 90mm | 70mm | Platform Dimension | 0.62*0.87m |
| Ground Clearance(Raised) | 90mm | 70mm | Ground Clearance(Stowed) | 70mm |
| Wheelbase | 1.2m | 1.2m | Ground Clearance(Raised) | 70mm |
| Loading Capacity | 200kg | 200kg | Wheelbase D | 1.22m |
| Occupants | 2 | 2 | Loading Capacity | 200kg |
| Jib-Range ofArticulation | 120° | 120° | Occupants | 2 |
| Swing | 352° | 352° | Turning Radius(Inside/Outside) | 0.23/1.65m |
| Max.Allowance TiltAngle | X-2°Y-2° | X-2°Y-2° | Swing | 345° |
| Travel Speed(Stowed) | 4.5km/h | 4.5km/h | Jib-Range ofarticulation | 130° |
| Travel Speed(Raised) | 0.8km/h | 0.8km/h | Travel Speed(Stowed) | 4.5km/h |
| Gradeability | 25% | 25% | Travel Speed(Raised) | 0.5km/h |
| Tyres | φ406*125mm | φ406*125mm | Up/Down Speed | 42/38s |
| Driving Motor | 24V/0.9kw | 24V/0.9kw | Max.Allowance Tit Angle | X-2°,Y-2° |
| Lifting Motor | 24V/3kw | 24V/3kw | Tyres | φ381*127mm |
| Battery | 24V/220Ah | 24V/220Ah | Driving Motor | 24V/0.9kW |
| Charger | 24V/30A | 24V/30A | Lifting Motor | 24V/3kW |
| Weight | 2960kg | 3300kg | Battery | 24V/240Ah |
| Charger | 24V/30A | |||
| Weight | 2950kg |
