The ATLAPEX Forklift Style Vertical Mast Lift with JIB is a compact, maneuverable aerial work platform designed for precise indoor and narrow-space operations. It features a robust forklift-style mast, extendable jib for flexible positioning, and comprehensive safety systems. With a maximum working height of 12–12.5m and 200kg load capacity, it is ideal for facility maintenance, window cleaning, and industrial tasks requiring accurate elevation in confined environments.
Max. Working Height
Max. Platform Height
Rated Load
The ATLAPEX Forklift Style Vertical Mast Lift with JIB is a specialized vertical lift engineered for precision operations in tight indoor and outdoor spaces. Its forklift-style mast and extendable jib enable flexible positioning, while compact dimensions ensure easy navigation through narrow doorways and corridors—perfect for facility maintenance, window cleaning, and industrial applications.
Key Highlights
Compact & Maneuverable: Slim chassis and tight turning radius allow access to confined spaces and narrow work areas.
Flexible Positioning: Extendable jib with 120°–130° articulation and 352°–360° turntable rotation for precise alignment with targets.
Robust Safety Systems: Equipped with automatic braking, tilt sensing, overload protection, and emergency descent systems for maximum operator safety.
Intuitive Operation: Proportional joystick controls and self-locking platform gate simplify operation and reduce training time.
Hi13 Level Sensor

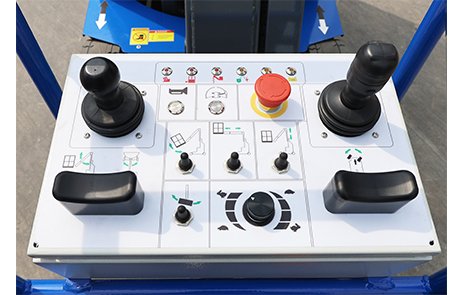

Hi13 Dual Joystick
Key features include a self-locking gate, full-height drivability, and non-marking tyres. Safety systems cover automatic braking, emergency descent, explosion-proof tubing, and fault diagnosis, plus tilt/motion alarms and a 352° swing.

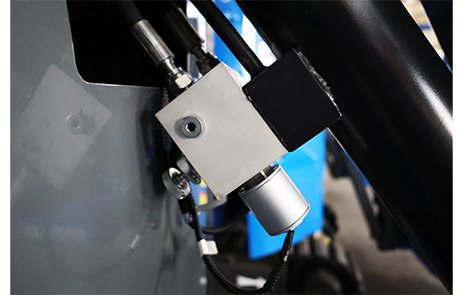

Fly Jib Emergency Lowering Switch

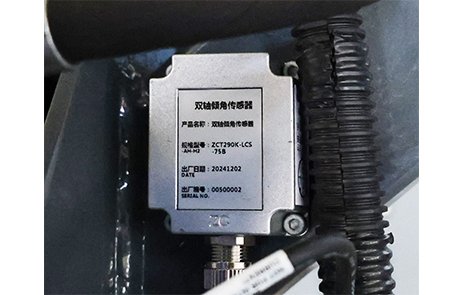

tilt sensor

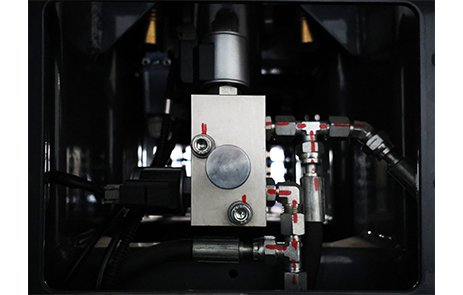

Mast Emergency Lowering Switch
Our aerial work platform delivers safety and precision with an AC driving motor and proportional joystick controls.

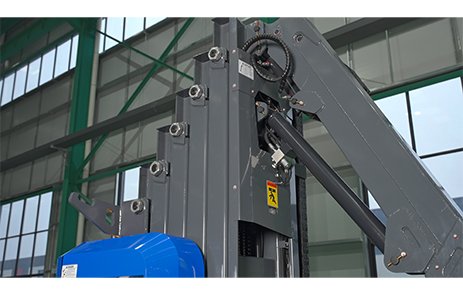

ractical tools include an hour meter, charging protection, manual brake release, and overload sensing, all built on a heavy-duty forklift mast with chain inspection and an extension jib.
| Model | AMWP12N-7100 | AMWP13-7100 |
| Max.Working Height | 12m | 12.5m |
| Max.Platform Height | 10m | 10.5m |
| Working Outreach | 5.6m | 6m |
| Overall Length | 3.75m | 3.72m |
| Overall Width | 0.99m | 1.2m |
| Overall Height(stowed) | 1.99m | 1.99m |
| Upand Over Height | 7.2m | 7.15m |
| Platform Dimension | 0.8*0.93m | 0.8*0.93m |
| Ground Clearance(Stowed) | 70mm | 80mm |
| Ground Clearance(Raised) | 15mm | 80mm |
| Wheelbase | 1.28m | 1.55m |
| Loading Capacity | 200kg | 200kg |
| Occupants | 2 | 2 |
| Jib-Range of Articulation | 130° | 120° |
| Swing | 360° | 352° |
| Max.Alowance Tilt Angle | X-2°Y-2° | X-2°Y-2° |
| Travel Speed(Stowed) | 3.6km/h | 3.6km/h |
| Travel Speed(Raised) | 0.7km/h | 0.7km/h |
| Gradeability | 25% | 30% |
| Tyres | φ457*178mm | φ406*178mm |
| Driving Motor | 48V/2.5kw | 48V/3.3kw |
| Lifting Motor | 48V/3kw | 48V/3kw |
| Battery | 48V/220Ah | 48V/260Ah |
| Charger | 48V/35A | 48V/35A |
| Weight | 5800kg | 5020kg |
