The ATLAPEX Tracked Vertical Mast Lift with JIB is a compact, terrain-adaptable aerial work platform designed for stable operation on uneven ground. It features a crawler track chassis, extendable jib for flexible positioning, and comprehensive safety systems. With a maximum working height of 9m–10m and 200kg load capacity, it is ideal for industrial maintenance, tank servicing, and outdoor tasks requiring reliable elevation in rough environments.
Max. Working Height
Max. Platform Height
Rated Load
The ATLAPEX Tracked Vertical Mast Lift with JIB is a specialized crawler-mounted aerial lift engineered for stable performance on uneven or soft terrain. Its robust track chassis provides excellent traction, while the extendable jib and vertical mast enable precise positioning—perfect for industrial maintenance, tank inspections, and outdoor projects where wheeled lifts cannot operate.
Terrain Adaptability: Crawler track chassis ensures stable traction and low ground pressure, ideal for uneven, muddy, or soft outdoor surfaces.
Flexible Positioning: Extendable jib with 120° articulation and 220° turntable rotation for accurate alignment with hard-to-reach targets.
Robust Safety Systems: Equipped with automatic braking, tilt sensing, overload protection, and emergency descent systems for maximum operator safety.
Intuitive Operation: Proportional joystick controls and self-locking platform gate simplify operation and reduce training time.

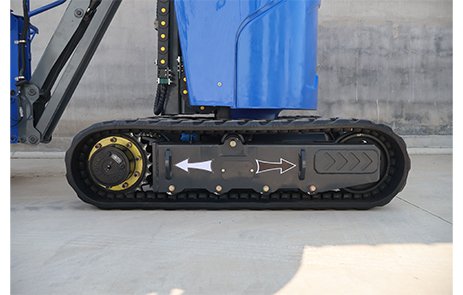

Crawler chassis

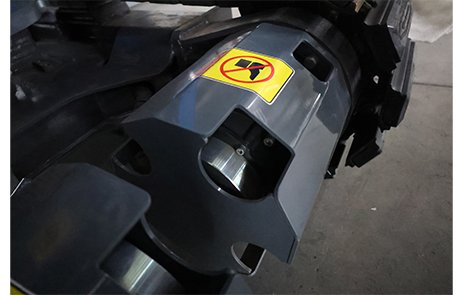

AC motor

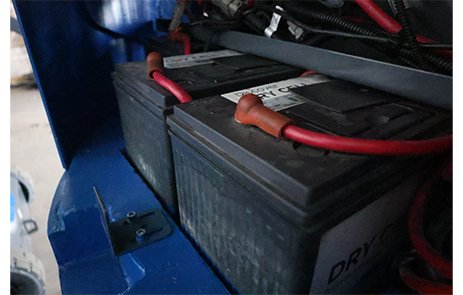

Maintenance-free battery

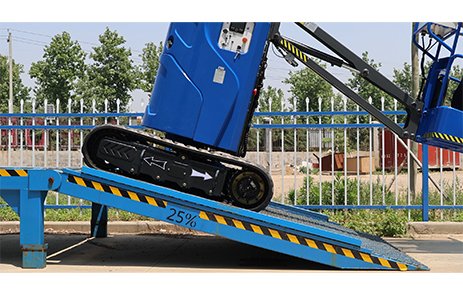

climbing ability

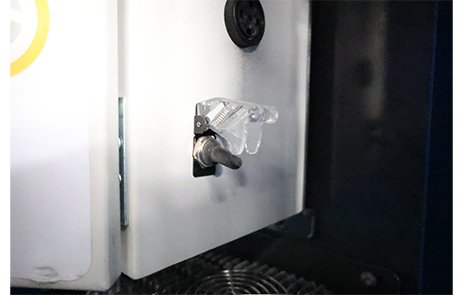

Automatic brake release

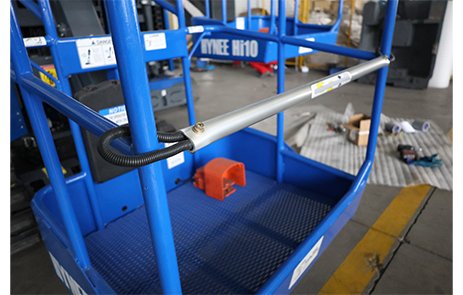

Platform self-locking door
| Model | AMWP9C-7100 | AMWP10C-7100 | |
| Max.Working Height | 9m | 10m | |
| Max.Platform Height | 7m | 8m | |
| Working Outreach | 3.36m | 3.61m | |
| Overall Length | 2.87m | 2.97m | |
| Overall Width | 1.2m | 1.2m | |
| Overall Height(stowed) | 1.99m | 2.14m | |
| Upand over height | 5.5m | 6.4m | |
| Platform Dimension | 0.8*0.94m | 0.8*0.94m | |
| Ground Clearance(Stowed) | 80mm | 80mm | |
| Ground Clearance(Raised) | 80mm | 80mm | |
| Wheelbase | 1.23m | 1.23m | |
| Loading Capacity | 200kg | 200kg | |
| Occupants | 2 | 2 | |
| Jib-Range ofArticulation | 120° | 120° | |
| Swing | 220° | 220° | |
| Jib-Range of Articulation | X-2°Y-2° | X-2°Y-2° | |
| Travel Speed(Stowed) | 1.8km/h | 1.8km/h | |
| Travel Speed(Raised) | 0.8km/h | 0.8km/h | |
| Gradeability | 20% | 20% | |
| Track | 250mm | 250mm | |
| Driving Motor | 48V/3kw | 48V/3kw | |
| Lifting Motor | 48V/3kw | 4RV/3kw | |
| Battery | 48V/220Ah | 48V/220Ah | |
| Charger | 48V/35A | 48V/35A | |
| Weight | 2980kg | 3300kg | |
