The ATLAPEX AC25 / AC30 Hand Pallet Truck is a professional, high-performance manual material handling solution, engineered to deliver reliable, efficient operation for warehouses, retail stores, factory floors, and logistics operations worldwide. Designed for short-distance transport and long-haul warehouse logistics, this pallet jack combines robust construction, ergonomic design, and versatile customization to meet the demands of diverse industrial environments.
Model
Rated Load
Engineered for 2500kg/3000kg load capacity, the ATLAPEX hand pallet truck delivers robust, low-maintenance performance for warehouses, factories, and logistics operations. Featuring a sealed, leak-proof hydraulic system, ergonomic handle, and versatile wheel options (polyurethane/nylon/rubber) for all floor types, it ensures safe, stable load handling and long service life. Customizable fork lengths and widths make it the ideal solution for short-distance transport and long-haul warehouse logistics. Upgrade your material handling with a pallet jack built for reliability and efficiency.

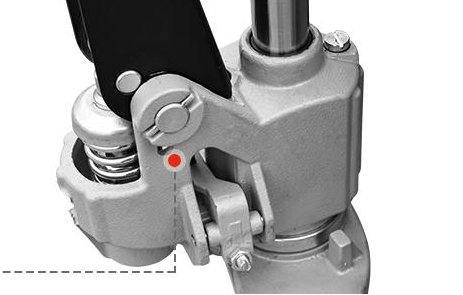

Excellent whole casting hydraulic pump, robust anddurable, with fine control of lowering speed andoverload valve, low routine maintenance.

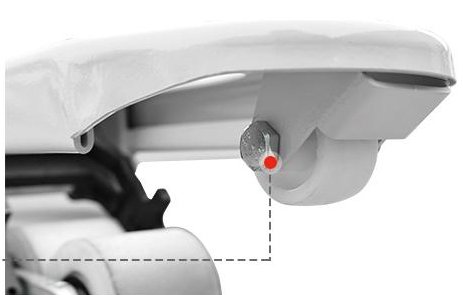

Tandem load roller with additional entry roller whichguarantees for maximum stability and safety fortransporting goods on slopes.

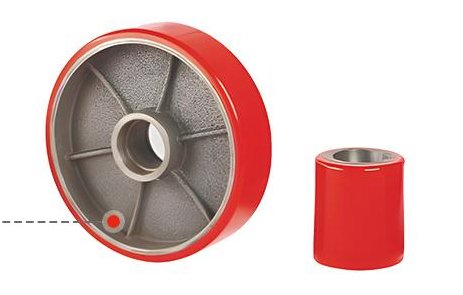

Ideal for delicate floors with hard wearing andnon-marking property, quiet and durable.

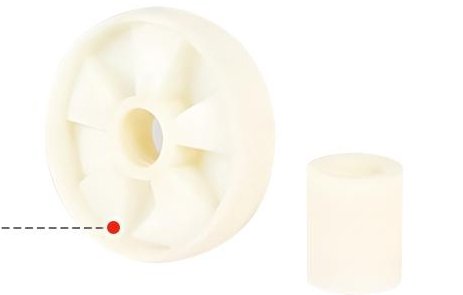

Low drag efforts, high resistance to chemicals,preferred in food, fishing and chemical industrieswith smooth floors.

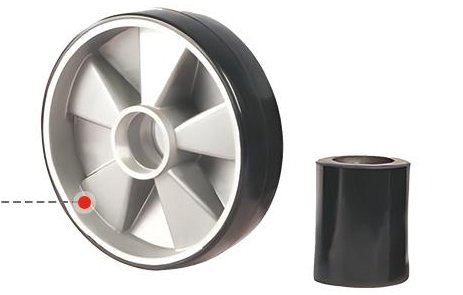

Best choice for quiet and durable demands, idealfor smooth and rough floors.

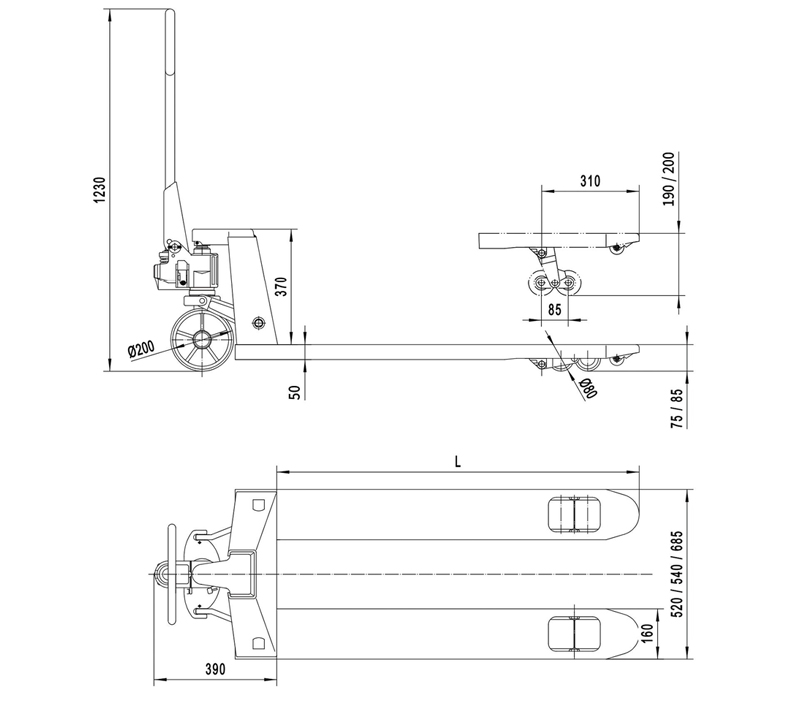

| Model | AC25 | AC30 | ||||
| Load capacity | kg | 2500 | 3000 | |||
| Min.fork height h | mm | 85 | 75 | 85 | 75 | |
| Max.fork height h1 | mm | 200 | 190 | 200 | 190 | |
| Steering wheel | mm | φ180×50 | φ180×50 | φ180×50 | φ180×50 | |
| Load roller Single | mm | φ80×93 | φ74×93 | φ80×93 | φ74×93 | |
| Load roller Tandem | mm | φ80×70 | φ74×70 | φ80×70 | φ74×70 | |
| Size of fork e×S | mm | 160×50 | ||||
| Width overall forks B | mm | 450/520/540/685 | ||||
| Fork length L | mm | 800/900/1000/1100/1150/1220 | ||||
