QINGDAO ATLAPEX INDUSTRY CO.,LTD

Hand Pallet Truck Scale Type — 2T,3T

The ATLAPEX SHPT20B / SHPT30B Scale Hand Pallet Truck is a high-performance, integrated material handling solution that combines heavy-duty manual pallet transport with industrial-grade precision weighing, engineered to streamline operations in warehouses, logistics centers, manufacturing facilities, and retail distribution hubs. This dual-function pallet jack eliminates the need for separate weighing stations, drastically improving workflow efficiency while delivering the rugged reliability required for daily industrial use.

Get Free Quote

SPECIFICATIONS

Model

SHPT-B
Rated Load

2T,3T

DESCRIPTIONS

Engineered for 2000kg/3000kg load capacity and ±0.1% weighing accuracy, the ATLAPEX SHPT20B/SHPT30B Scale Hand Pallet Truck combines heavy-duty manual transport with high-precision on-board weighing. Featuring a sealed hydraulic pump, ergonomic handle, and versatile wheel options (PU/nylon/rubber) for all floor types, it eliminates separate weighing stations, streamlines warehouse workflows, and delivers long-lasting, low-maintenance performance. The ideal solution for logistics, manufacturing, and retail operations seeking to boost efficiency.

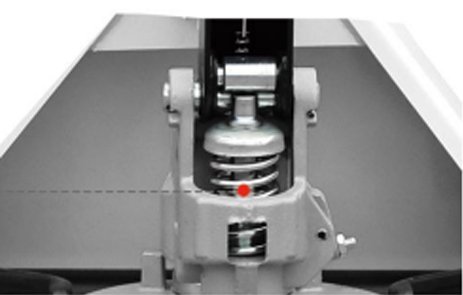

Easy rebound and long life.

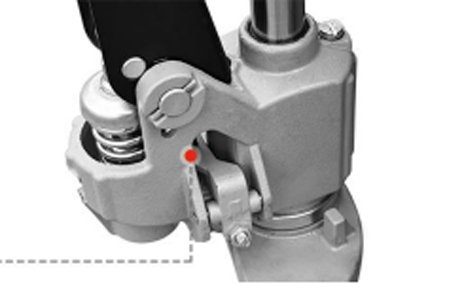

Excellent whole casting hydraulic pump, robust anddurable, with fine control of lowering speed andoverload valve, low routine maintenance.

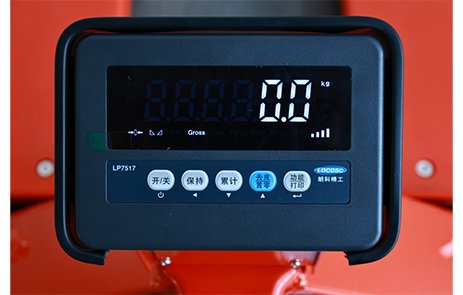

Scale

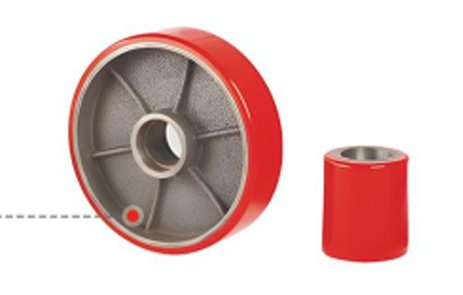

Ideal for delicate floors with hard wearing andnon-marking property, quiet and durable.

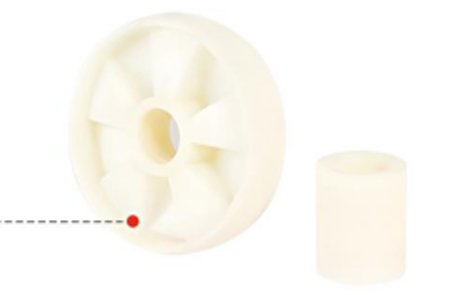

Low drag efforts, high resistance to chemicals,preferred in food, fishing and chemical industrieswith smooth floors.

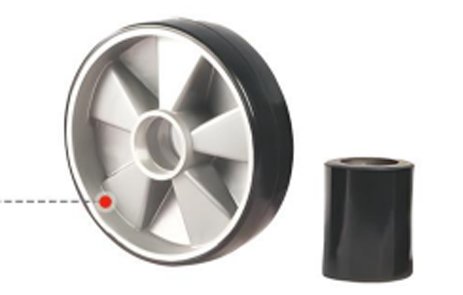

Best choice for quiet and durable demands, idealfor smooth and rough floors.

TECHNICAL PARAMETERS

Model		SHPT20B	SHPT30B
Load capacity	kg	2000	3000
Power supply		3.7V DC
Environmental conditions		Dry environment
Operating temperature		-10℃—40℃(14°F to 104°F)
Fork height,min./max.	mm	76/190\|\|85/200
Weighing accuracy	%	±0.1
Fork width	mm	570/705
Fork length	mm	1150
