QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Voltage Platform

    80V

DESCRIPTIONS

ATLAPEX HE Series electric forklifts (1.5t–4t) offer intelligent safety, zero emissions, and high efficiency for factories, ports, and warehouses. Powered by an 80V LiFePO₄ battery with fast charging, they feature a reinforced wide-view mast, ergonomic design, and low-maintenance components. Ideal for tobacco, textile, food, and printing industries, these forklifts combine reliability, comfort, and eco-friendliness in pneumatic or solid tire options.


1页-6

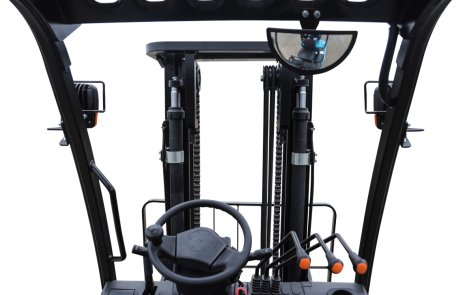

Widened design for 20% better forward visibility Custom profiled steel for enhanced strength and load capacity Ensures safe and reliable operation

1页-7

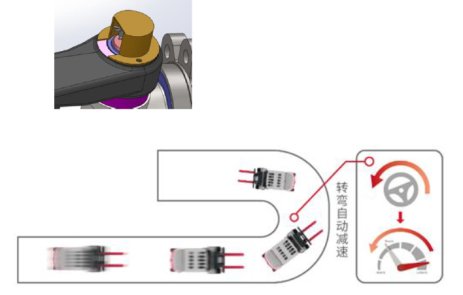

Automatically reduces speed during turns, resumes normal speed after cornering Ensures safe manoeuvring and effectively prevents rollover accidents

1页-8

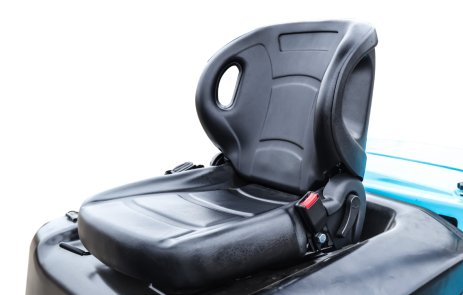

Full-coverage luxury seat with superior shock absorption Seat sensor automatically cuts power when operator leaves the seat Disables mast lowering and travel for enhanced safety

1页-9

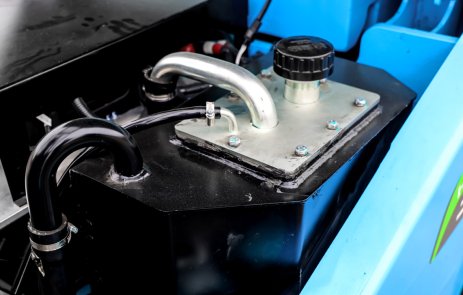

Positioned to minimize battery contact and avoid heat buildup Shorter hydraulic lines for reduced energy loss 32L large capacity supports various attachments Split design for easy disassembly and maintenance

1页-10

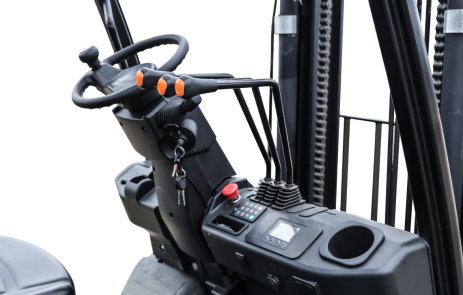

50% more operator space than conventional forklifts for enhanced comfort Low-torque steering and adjustable small-diameter wheel for easier operation Perforated non-slip footplate and oversized grab handles for safer entry/exit

1页-11

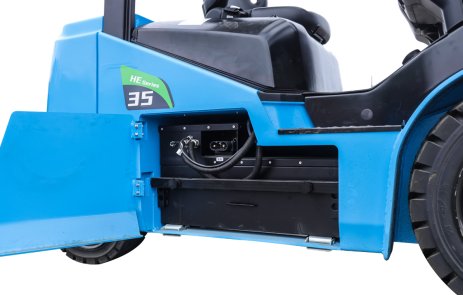

Side-pull battery design for easy maintenance and fast replacement Enables continuous operation Lower center of gravity for improved stability

1页-13

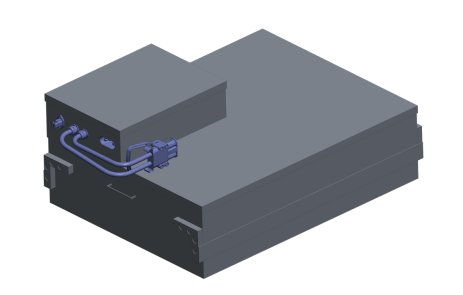

LiFePO₄ modules with >90% efficiency and 1.5–2h fast charging 5-year / 10,000-hour warranty with >80% capacity retention Millisecond-level leakage protection for safe operation

1页-12

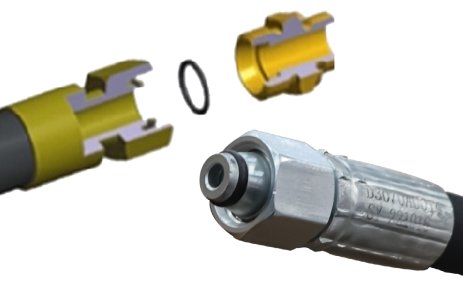

Full-hydraulic load-sensing system for faster steering response and easier operation 24° taper + O-ring double seal on hydraulic lines to reduce leakage

1页-15

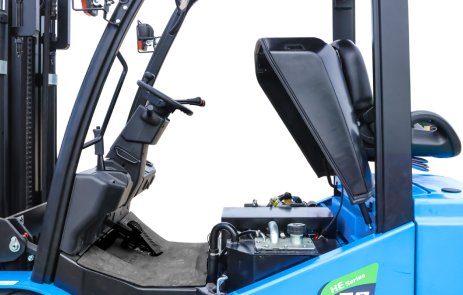

Optimized compartment layout with centralized key components Hood opening angle > 80° Easy and convenient daily inspection and maintenance

1页-14

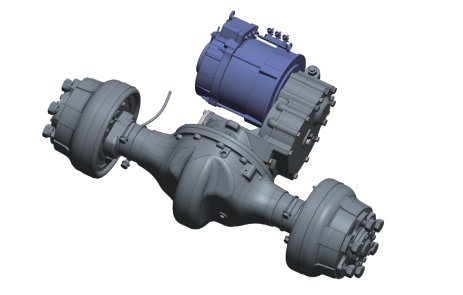

Direct energy conversion for minimal loss and faster acceleration Energy efficiency increased by over 30% Highly efficient and reliable operation

1页-17

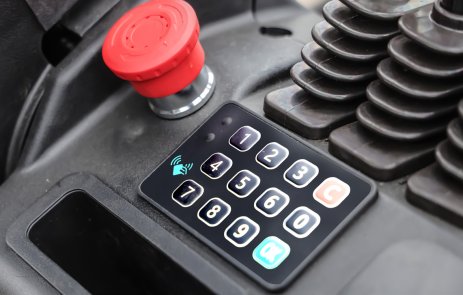

Two-level start-up: electric lock + PIN code or card swipe Prevents unauthorized operation and safety incidents Compliant with national TSG81 safety regulations

1页-16

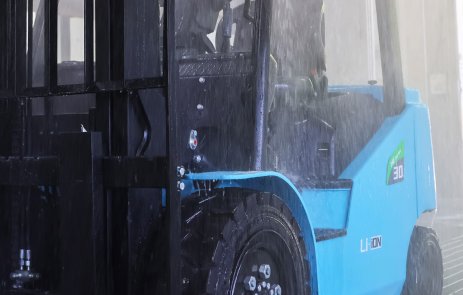

All electrical components from renowned brands with multi-layer protection Traction battery with IP54 rating Fully capable of safe operation in rainy conditions

1页-19

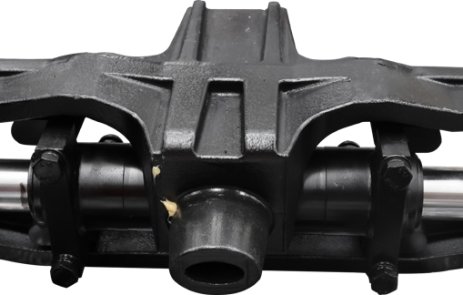

Cast-integrated steering axle with tapered roller bearings for impact resistance and longer life Buffer blocks at body contact points for improved off-road performance and comfort Reduced operator fatigue

1页-18

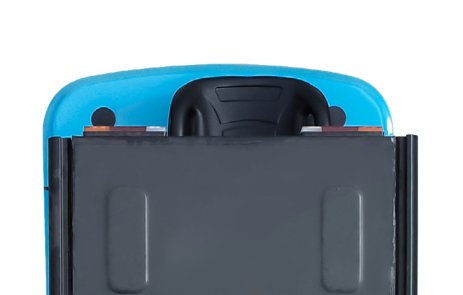

4mm thick steel plate, one-piece die-formed design Attractive, robust structure Superior protection against falling objects and rain

TECHNICAL PARAMETERS

Model-Series
CPD-HE15CPD-HE18CPD-HE20XCPD-HE20CPD-HE25CPD-HE30CPD-HE35CPD-HE40X
Configuration number
HE15-SJ03-L125HE18-SJ03-L125HE20X-SJ03-L125HE20-SJ01-L150HE25-SJ01-L150HE30-SJ01-L202HE35-SJ01-L202HE40X-SJ01-L280
Power type
ElectricElectricElectricElectricElectricElectricElectricElectric
Voltage plateauV8080808080808080
Operation type
SeatedSeatedSeatedSeatedSeatedSeatedSeatedSeated


Rated load lifting capacity
kg15001800200020002500300035004000
Rated load center distance
mm500500500500500500500500
Front overhang
mm415415415460460475480490
WheelbaseL4mm14101410141015201520165016501750
Overweight(with/no battery)
kg2750/25803000/28303150/29803650/34703950/37704500/42804800/45805250/5000
Axle load full load(front/rear)
kg3850/4004310/4904460/5405060/5905780/6706750/7507530/7708320/930
Axle load no load(front/rear)
kg1150/16001200/18001250/19001530/21201580/23701830/26701880/29202090/3160
Tire type

PneumaticPneumaticPneumaticPneumaticPneumaticPneumatic&SolidPneumatic&SolidPneumatic&Solid
Number of wheels (x=drive wheels)

2x/22x/22x/22x/22x/22x/22x/22x/2
Front tire specifications

6.50-10-10PR6.50-10-10PR6.50-10-10PR7.00-12-12PR7.00-12-12PR28×9-15-14PR28×9-15-14PR250-15-14PR
Rear tire specifications

5.00-8-8PR5.00-8-8PR5.00-8-8PR18×7-8-14PR18×7-8-14PR200/15-10200/15-10200/15-10
Front track widthW1mm925925925970970100010001055
Rear track widthW2mm930930930960960980980980
Mast tilt angle (front/rear)a/β°6-126-126-126-126-126-126-126-12
Mast retraction heightH1mm19851985198520002000212521252135
Free lift heightH5mm135135135130130130135135
Max. lift heightHmm30003000300030003000300030003000
Max. height during operationH2mm40454045404540304030419041904200
Overall height(overhead guard)H3mm21002100210021402140216021602170
Length (to the vertical plane of the fork)Lmm21602160216023352335247524802580
WidthWmm11301130113011701170122512251335
Fork size(H*W*L)
mm35×100×92035×100×92035×100×92040×120×107040×120×107045×122×107050×122×107050×122×1070
Outer distance between forks (min/max)
mm210-1025210-1025210-1025250-1085250-1085260-1085260-1085260-1085
Mast ground clearance(no load)H4mm100100100115115135135145
Min. ground clearance
mm858585145145150150160
Min. turning radiusmm19601960196020902090227022702370
Max. travelling speed (full load/no load)km/h14/1514/1514/1515/1515/1515/1515/1515/15
Max. lift speed (full load/no load)mm/s320/400300/400300/400350/450350/450360/400340/400320/400
Lowering speed (full load/no load)mm/s520/480520/480520/480540/450540/450390/380390/380380/370
Max. tractionN1100011000110001950019500185001850018000
Gradeability (full load/no load)%20/2015/2015/2020/2520/2517/2516/2515/20
Rated power of traction motor, S2 60min working systemkW10AC12AC12AC
Rated power of oil pump motor, S3 15% working systemkW16AC21AC21AC
Motor type/protection level
AC Asynchronous Motor \IP54AC Asynchronous Motor \IP54AC Asynchronous Motor \IP54
Battery type
LiFePO4 BatteryLiFePO4 BatteryLiFePO4 Battery
Standard battery voltage/capacityV/Ah76.8/12576.8/15076.8/202
Standard battery weightkg170180220
Heating form/protection level of battery
Low-temperature Electric Heating \IP54Low-temperature Electric Heating \IP54Low-temperature Electric Heating \IP54
Battery warranty (whichever comes first)
5 years or 10,000 hours5 years or 10,000 hours5 years or 10,000 hours
MCU motor controller type
MOSFET/ACMOSFET/ACMOSFET/AC
MCU motor controller manufacturer
JIACHENJIACHENJIACHEN
MCU motor controller model
ACM80C250ACM80C450ACM80C450
Hydraulic system working pressureMpa17.52121
