SPECIFICATIONS

  • Voltage Platform

    80V

DESCRIPTIONS

ATLAPEX HK Series electric forklifts (2.0t–3.8t) are high-performance lithium-ion models for factories and warehouses. With 80V AC power, fast charging, and zero emissions, they feature a wide-view mast, intelligent safety systems, ergonomic design, and a compact body for flexible, reliable material handling.

1页-7

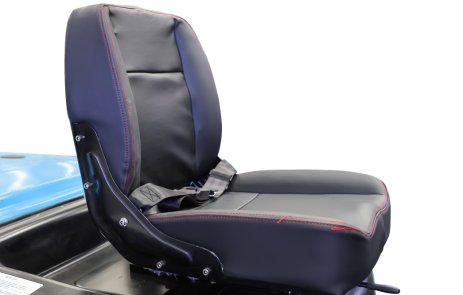

Thickened shock-absorbing seat for ultimate comfort. OPS presence detection automatically cuts power to lifting and travel functions when unoccupied, boosting safety

1页-6

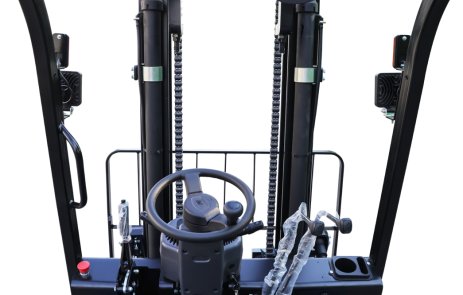

Wider mast design for improved visibility and safer operation.

1页-9

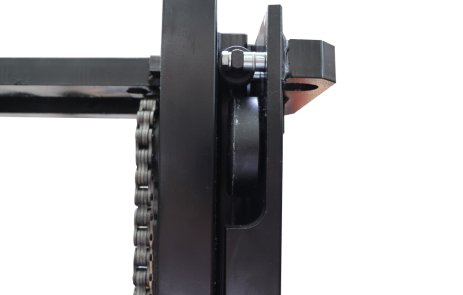

Positioned above main rollers to minimize sway at height, boosting high-lift stability and reducing bearing failures.

1页-8

CAN bus monitoring safeguards against faults like leakage and short circuits, with on-screen alerts for safety. SPE 3-speed adjustment for smarter operation.

1页-10

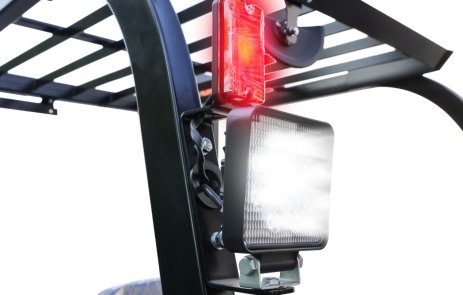

Full-vehicle LED lighting for brighter, wider, energy-saving illumination and safer night work. Wide-center mirrors + two-stage reverse alarm double down on safety

1页-12

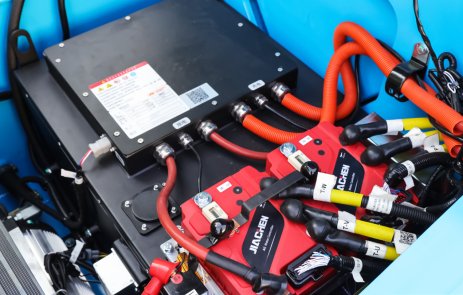

LiFePO₄ modules with >95% efficiency and 1.5–2h fast charging. Millisecond leakage protection and standard electric heating ensure safe, reliable performance even in cold storage.

1页-14

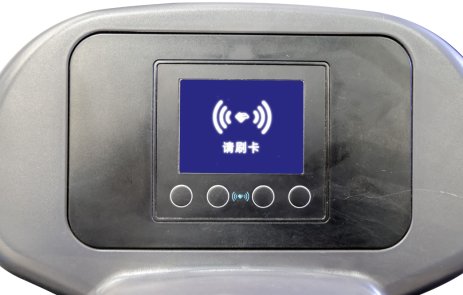

Electric lock power-on + LCD card-swipe start prevents unauthorized operation and meets national TSG81 safety standards for enhanced safety

1页-17

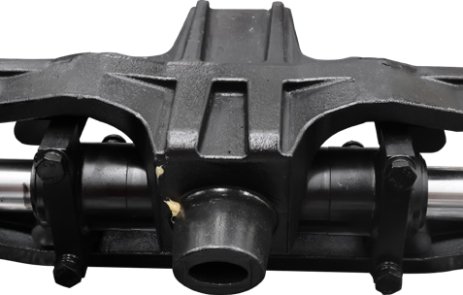

Cast-integrated axle with tapered roller bearings for impact resistance and long life. Buffer blocks boost off-road capability, comfort, and reduce fatigue.

1页-19

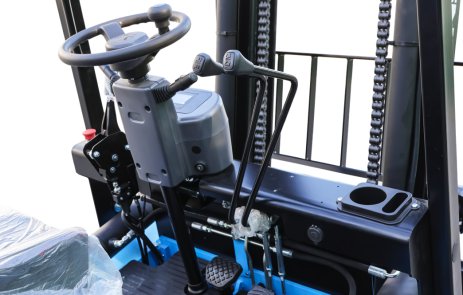

Effortless steering, safe entry, and convenient controls—with dual USB fast-charging and a handy phone slot for smart, comfortable operation.

TECHNICAL PARAMETERS

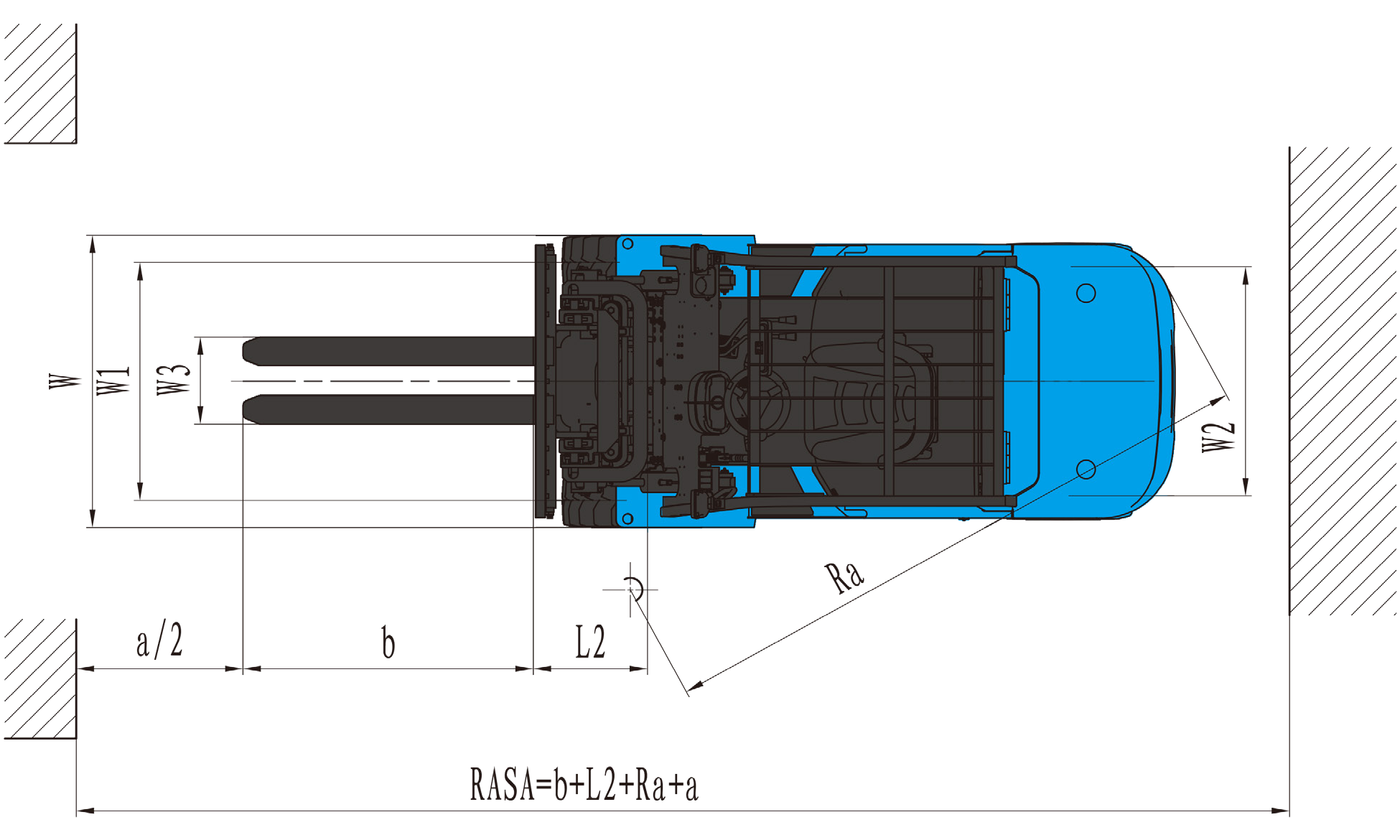

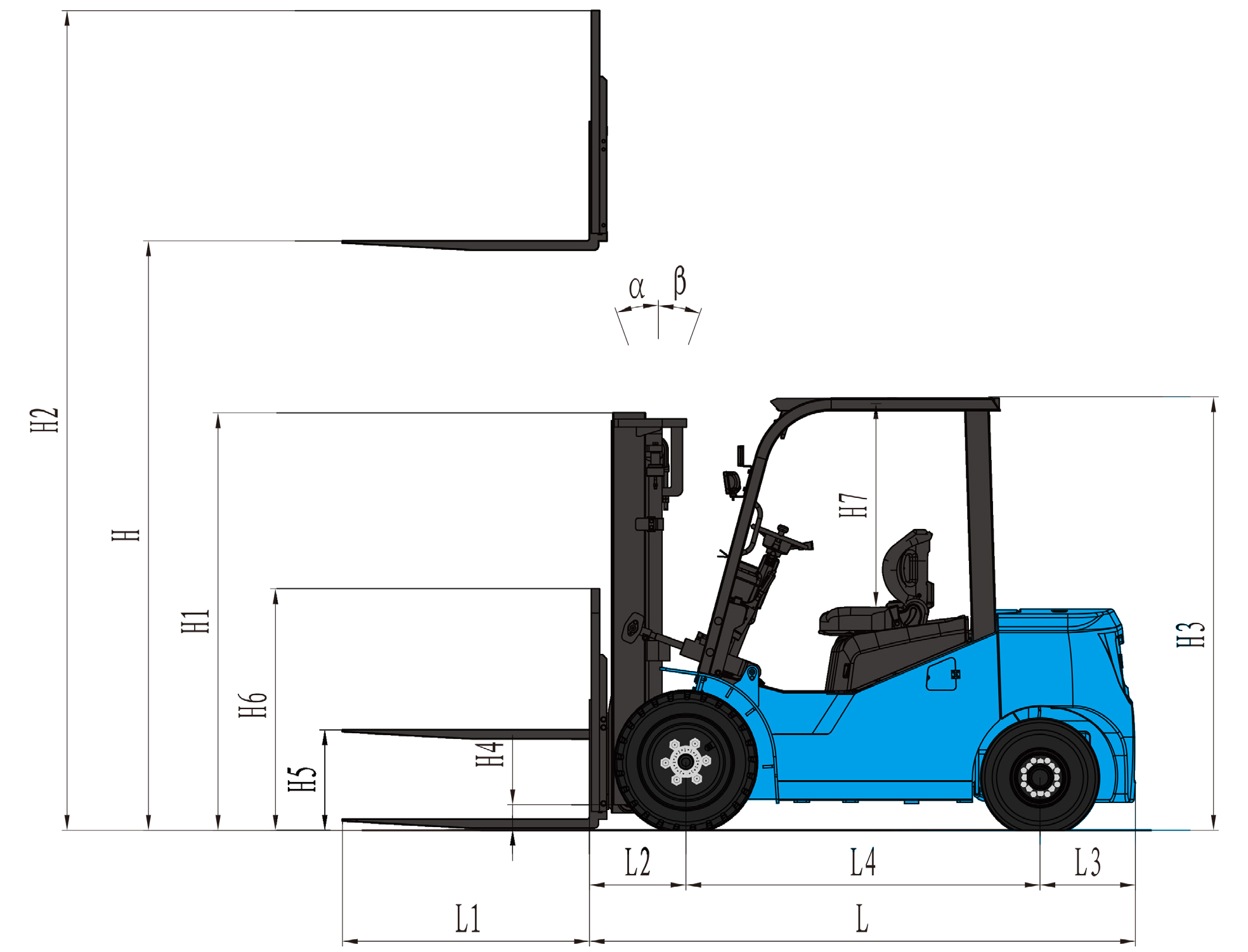

2页-20 2页-21
Model
CPD-HK20CPD-HK25CPD-HK30CPD-HK35CPD-HK38
Power Type
ElectricElectricElectricElectricElectric
Voltage Platform
8080808080
Control Type
SeateSit-downSit-downSit-downSit-down
Rated Load Cap.kg20002500300035003800
Load Center Dist.
500500500500500
Front Overhangm m460460475 480490
Rear Overhangm m415 415 470470470
Wheelbasem m16501650175017501750
Unladen Wt. (Incl./Excl. Battery)kg3200/30203500/33204250/40504550/43504850/4610
Axle Load - Loaded (F/R)kg4730/4705460/5406570/6807220/8308157/493
Axle Load - Unloaded (F/R)kg1410/17901540/19601880/23701820/27302996/1854







Tire Type
Pneumatic TirePneumatic TirePneumatic TirePneumatic TirePneumatic Tire
No. of Wheels (x=Drive)
2x/22x/22x/22x/22x/2
Front Tire Size
7.00-12-12PR7.00-12-12PR28X9-15-14PR28X9-15-14PR28X9-15-14PR
Rear Tire Size
6.00-9-10PR6.00-9-10PR6.50-10-10PR6.50-10-10PR6.50-10-10PR
Front Trackm m970970100010001000
Rear Trackm m960960970970970
Mast Tilt (Fwd/Rwd)6/126/126/126/126/12
Mast Retracted Ht.m m2005200520702125 2125
Free Lift Ht.m m130130135 140145
Max. Lift Ht.m m30003000300030003000
Max. Working Ht.m m4035 4035 4230 4230 4230
Overhead Guard Ht.m m2125 2125 2145 2145 2145
Body Length (to Fork Face)m m2535 2535 269527002700
Body Widthm m11701170123012301230
Fork Dims. (T×W×L)m m1070X122 X401070X122X401070X122X45mm1070X122X50
Fork Spacing (Ext, Min/Max)m m250-1040250-1040250-1085250-1085250-1085
Mast Gnd. Clear. (Loaded)m m110110115115115
Min. Gnd. Clear.
115115130130130
Min. Turning Radiusm m2335 2335 250025002500
Max. Travel Speed (L/UL)km/h14/1514/1515/1615/1615/16
Max. Lift Speed (L/UL)mm/s330/400300/400320/380300/380320/370
Lowering Speed (L/UL)mm/s470/450470/450450/410450/410380/370
Max. Drawbar Pull (Loaded)N15000 15000 16500 16500 23000
Gradeability (L/UL)%18/2015/2020/2015/2018/25
Service Brake (Mech, Elec, Hyd)
Hydraulic typeHydraulic typeHydraulic typeHydraulic typeHydraulic type
Parking Brake (Mech, Elec, Hyd)
Mechanical typeMechanical typeMechanical typeMechanical typeMechanical type
Traction Motor Rated Power, S2 60minkw8AC8AC10AC10AC12AC
Pump Motor Rated Power, S3 15minkw10AC10AC16AC16AC21AC
Motor Type & IP Rating
AC asynchronous motor, IP54AC asynchronous motor, IP54AC asynchronous motor, IP54AC asynchronous motor, IP54AC asynchronous motor, IP54
Battery Type
Lithium batteryLithium batteryLithium batteryLithium batteryLithium battery
Std. Battery (Volt/Cap.)V/Ah76.8/15076.8/15076.8/20276.8/20276.8/280
Std. Battery Wt.kg180 180 200 200 240
Battery Heater Type \ IP Rating
Low-temperature electric heating, IP54Low-temperature electric heating, IP54Low-temperature electric heating, IP54Low-temperature electric heating, IP54Low-temperature electric heating, IP54
MCU Type
MOSFET/ACMOSFET/ACMOSFET/ACMOSFET/ACMOSFET/AC
MCU Mfr.
JiachenJiachenJiachenJiachenJiachen
MCU Model
ACM III 80C350ACM III 80C350ACM III 80C350ACM III 80C350ACM III 80C450
Hyd. System Working Press.Mpa18.5 18.5 18.5 18.5 18.5
