QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Max. Working Height

    6M~16M

  • Max.Platform Height

    4M~14M

  • Rated Load

    500KG

DESCRIPTIONS

The ATLAPEX Rear Axle Self Propelled Wheel Scissor Lift (Electric Control Series) is a self-propelled aerial work platform designed for heavy-load, high-efficiency operations. It features a large tabletop, built-in battery power supply, and one-person operable walking/turning for flexible movement. With a platform capacity of 500kg (supporting up to 6 workers) and a working height range of 6m to 16m, it is equipped with robust structural components and anti-wear hydraulic systems, making it ideal for construction, maintenance, and industrial tasks requiring reliable elevation.

TECHNICAL PARAMETERS

0d7369991c836870a7a22385d3e9c32e 5d67aaac0c6d24f310a4cb655f53fc42 7f9b21e047632b0c8118c22f85682e00
ModelQYCY0.5-6QYCY0.5-8QYCY0.5-10QYCY0.5-12QYCY0.5-14
Size
Working Height6m10m12m14m16m

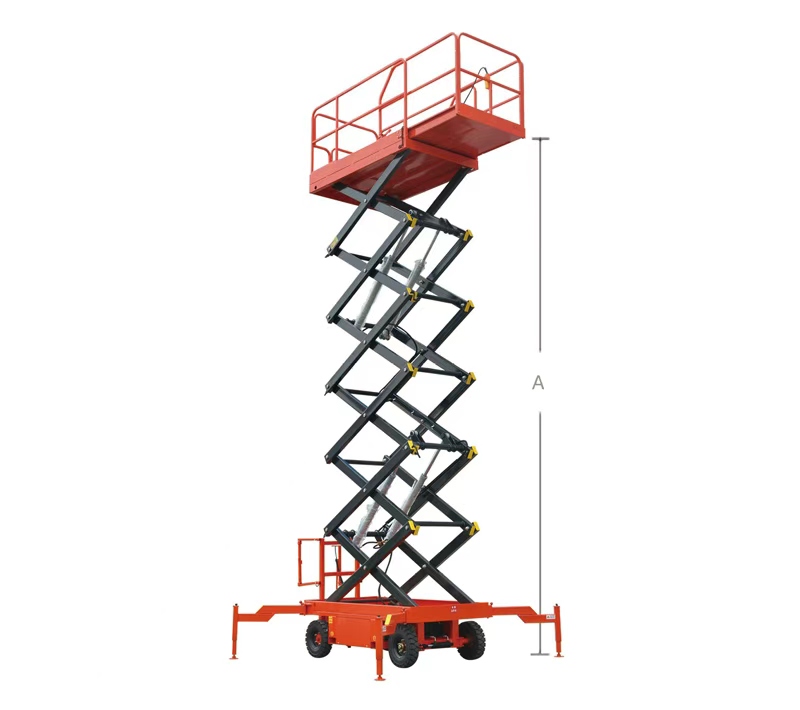

A-Platform Height-Elevated4m8m10m12m14m

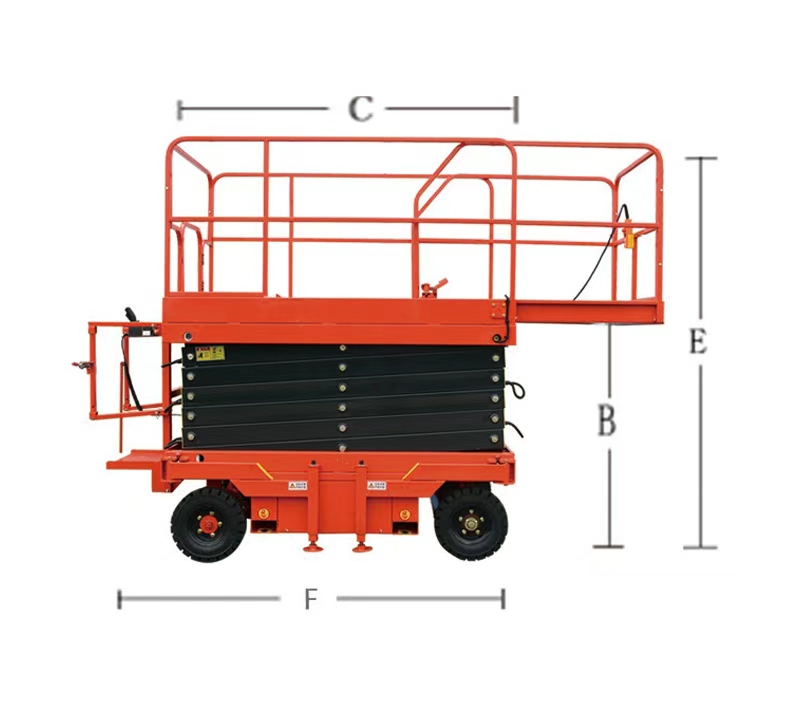

B-Platform Height-Stowed1.2m1.2m1.2m1.2m1.2m
C-Platform Length2.1m2.1m2.1m2.55m2.812m

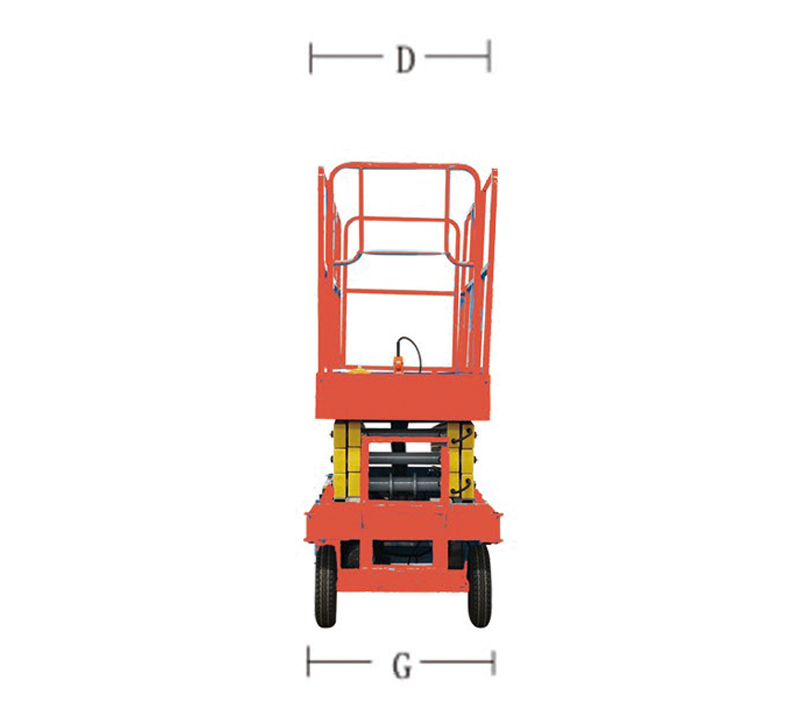

D-Platform Width0.83m0.93m1.23m1.53m1.53m
Platform Extension0.9m0.9m0.9m0.9m0.9m
E Overll Height1.2m1.38m1.53m1.75m1.81m
F-0verall Length2.75m2.75m2.75m2.796m3.067m
G-Overall Width0.95m1.06m1.35m1.67m1.73m
Performance
Extension Platfrom
Aavailable
Platform Capacity500kg500kg500kg500kg500kg
Max Workers(75kg)
Lifting Motor24V24V24V24V24V
Drive Motor24V/1.5KW24V/1.5KW24V/1.5KW24V/1.5KW24V/1.5KW
Lifting Speed4-6m/min4-6m/min4-6m/min4-6m/min4-6m/min
Tire400-8400-8400-8400-8400-8
Power
Num of Battery
Weight
Gross1030kg1250kg1560kg2260kg2486kg
