Rough Terrain Forklift S Series — 2.5T,3T,3.5T
Rough Terrain Forklift S Series — 2.5T,3T,3.5T

Rough Terrain Forklift S Series — 2.5T,3T,3.5T

The S Series is a newly developed 4WD internal combustion off-road forklift by ATLAPEX, specifically engineered for rugged outdoor road conditions in China. It features a streamlined, stylish, and imposing exterior design, and is equipped with wide-base, deep-tread off-road tires as standard. The 2WD/4WD switchable drive system ensures stable and reliable off-road performance, making it ideal for harsh outdoor work sites such as construction sites, fields, farms, and orchards.


Get Free Quote
Rough Terrain Forklift S Series — 2.5T,3T,3.5T

SPECIFICATIONS

DESCRIPTIONS

The S Series is a newly developed 4WD internal combustion off-road forklift by ATLAPEX, specifically engineered for rugged outdoor road conditions in China. It features a streamlined, stylish, and imposing exterior design, and is equipped with wide-base, deep-tread off-road tires as standard. The 2WD/4WD switchable drive system ensures stable and reliable off-road performance, making it ideal for harsh outdoor work sites such as construction sites, fields, farms, and orchards.


2页-5

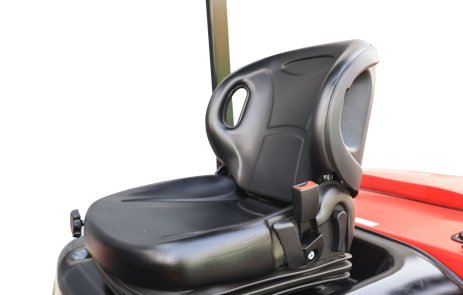

Standard luxury seat for superior comfort. Seat sensor cuts power when unoccupied, disabling mast and travel functions to ensure safety.

2页-6

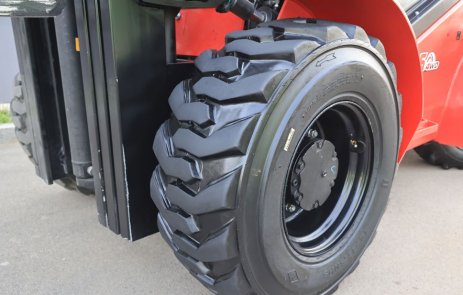

Standard 14-17.5 wide deep-tread tires with soft-connecting bridge box deliver superior off-road capability for muddy and rough terrain.

2页-8

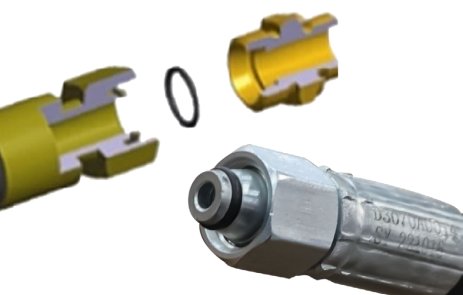

Full hydraulic load-sensing system delivers faster, lighter steering. 24° cone + O-ring seals on all lines ensure reliable sealing and minimize leaks.

2页-10

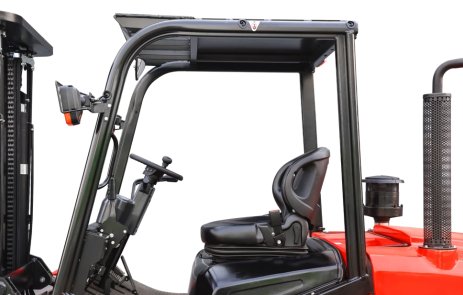

A three-stage shock absorption design featuring a floating ROPS, large wide-base off-road tires, and a luxury shock-absorbing seat ensures superior comfort even on rough terrain.

2页-9

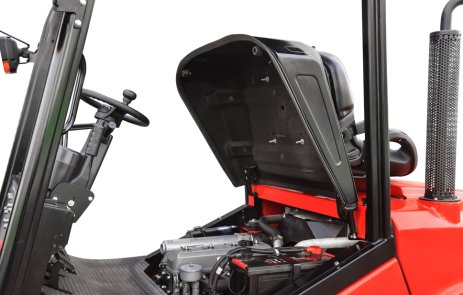

Steel construction with a large opening angle. Centralized layout of battery, electrics, and fuel tank enables convenient maintenance access.

TECHNICAL PARAMETERS

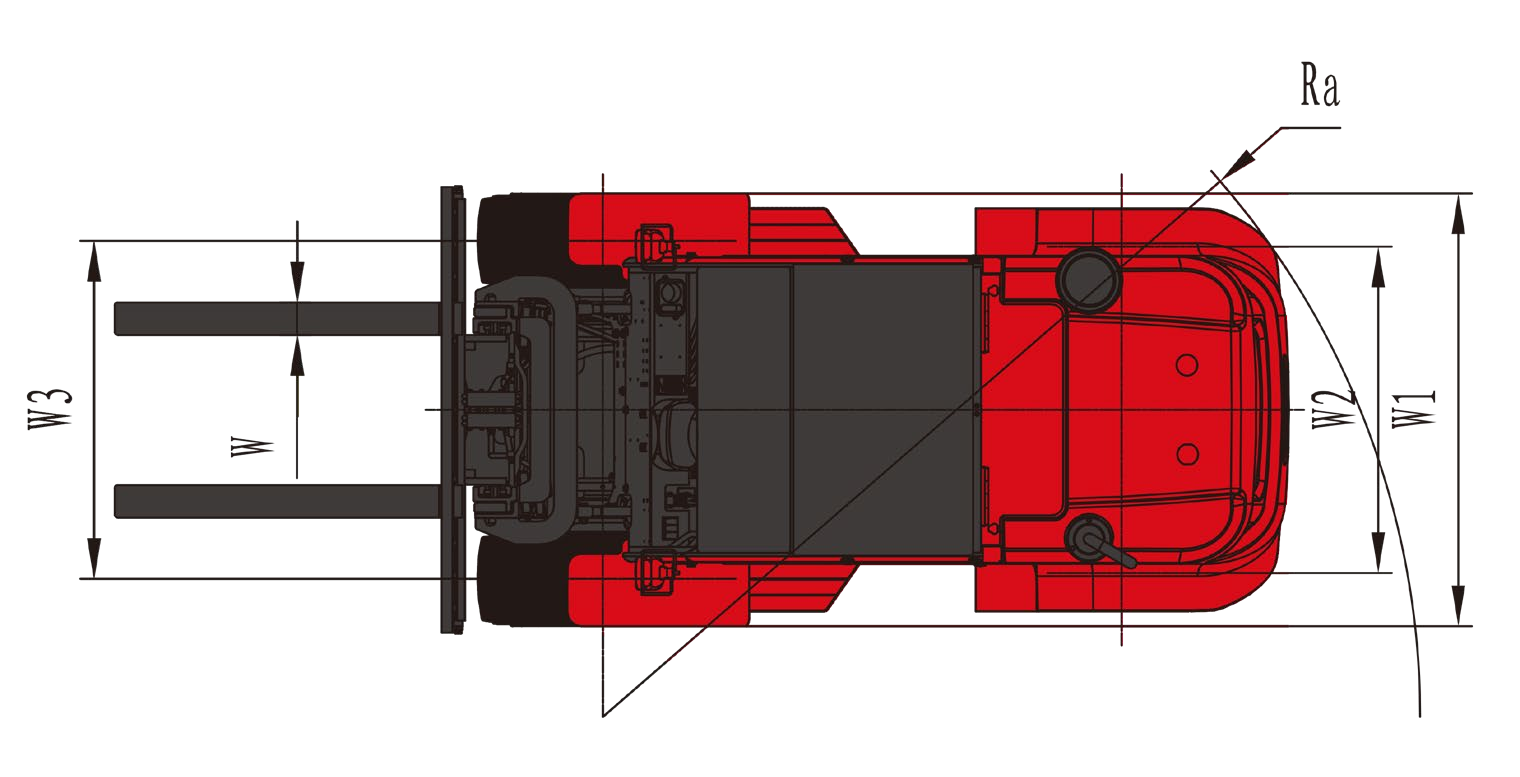

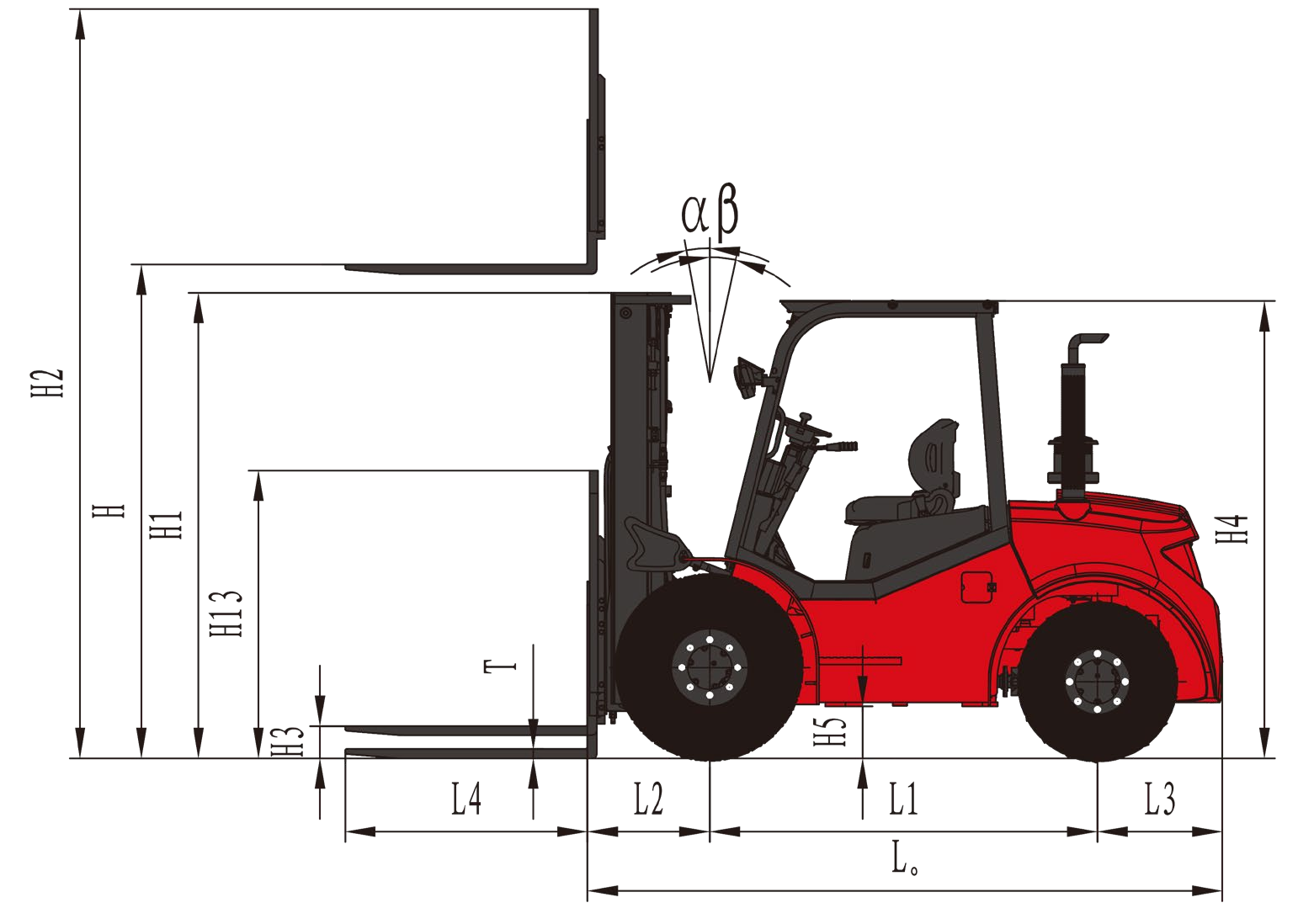

3页-13 3页-12
Model

CPCD-S25B(2WD)CPCD-S25A(4WD)CPCD-S30B(2WD)CPCD-S30A(4WD)CPCD-S35B(2WD)CPCD-S35A(4WD)
Power Type

DieselDieselDieselDieselDieselDiesel
Rated Lifting Capacity
(kg)2500 2500 3000 3000 3500 3500
Load Center Distance
(mm)500 500 500 500 500 500
Battery (Voltage/Capacity)
(V/Ah)12/10012/10012/10012/10012/10012/100
Maximum Lifting HeightH(mm)3000 3000 3000 3000 3000 3000
Free Lifting HeightH3(mm)140 140 145 145 150 150
Mast Tilt Angle (Front/Rear)a/β(°)10-1210-1210-1210-1210-1210-12
Maximum Lifting Speed(FullLoad/No Load)
(mm/s)560/600560/600455/480455/480455/480455/480
Maximum Lowering Speed(Full Load/No Load)
(mm/s)540/450540/450450/410450/410450/410450/410
Maximum Travel Speed(FullLoad/No Load)
(km/h)20/2020/2020/2020/2020/2020/20
Minimum Turning RadiusRa(mm)3300 3300 3300 3300 3300 3300
Gradeability (FullLoad/No Load)
(%)15/2040/15/2035/15/2030/
Self Weight
(kg)4490 4840 4740 5090 5040 5390
Length (w/o forks)L。(mm)3120 3120 3125 3125 3130 3130
Body WidthW1(mm)1600 1600 1600 1600 1600 1600
Mast HeightH1(mm)2290 2290 2290 2290 2290 2290
Overhead Guard HeightH4(mm)2260 2260 2260 2260 2260 2260
Load BackrestHeightH13(mm)1085 1085 1310 1310 1310 1310
Overall Height(maxlift)H2(mm)4075 4075 4300 4300 4300 4300
Min.Ground ClearanceH5(mm)270 270 270 270 270 270
WheelbaseL1(mm)1920 1920 1920 1920 1920 1920
Front WheelW3(mm)1250 1250 1250 1250 1250 1250
Rear WheelW2(mm)1206 1206 1206 1206 1206 1206
Front OverhangL2(mm)580 580 585 585 590 590
Rear OverhangL3(mm)620 620 620 620 620 620
Front Wheel

14-17.5-14PR14-17.5-14PR14-17.5-14PR14-17.5-14PR14-17.5-14PR14-17.5-14PR
Rear Wheel

10.0/75-15.3-14PR10.0/75-15.3-14PR10.0/75-15.3-14PR10.0/75-15.3-14PR10.0/75-15.3-14PR10.0/75-15.3-14PR
Fork(L×W×H)L4×W×T  (mm)1220×122×401220×122×401220×122×451220×122×451220×122×501220×122×50
Model

QuanchaiV29-50V42QuanchaiV29-50V42QuanchaiV32-50V42QuanchaiV32-50V42QuanchaiV32-50V42QuanchaiV32-50V42
Rated Power
(kW/rpm)36.8/250036.8/250036.8/250036.8/250036.8/250036.8/2500
Max Torque
(N.m/rpm)170/1800170/1800200/1600-1800200/1600-1800200/1600-1800200/1600-1800
Number of Cylinders

4 4 4 4 4 4
Displacement
(L)2.9 2.9 3.2 3.2 3.2 3.2
