The ATLAPEX Self-Propelled Single Mast Aluminum Lift is a lightweight, maneuverable aerial work platform designed for precise indoor and outdoor operations. It features a single aluminum mast, non-marking tires, and full-height drivability. With a maximum working height of 8m–9.5m and load capacities of 125kg–160kg, it is ideal for facility maintenance, lighting installation, and light industrial tasks requiring reliable elevation in tight spaces.
Max. Working Height
Max. Platform Height
Rated Load
The ATLAPEX Self-Propelled Single Mast Aluminum Lift is a compact vertical lift engineered for efficient access in narrow environments. Its lightweight aluminum mast and slim chassis ensure easy maneuverability through doorways and corridors, while full-height drivability maximizes productivity—perfect for facility maintenance, lighting installation, and light industrial applications.
Lightweight Aluminum Mast: Single aluminum mast design provides smooth, stable elevation with minimal sway.
Compact Maneuverability: Slim dimensions (1.40m length × 0.78m width) and 0.3m turning radius enable access through narrow spaces.
Full-Height Drivability: Can be driven at full elevation to reduce repositioning time.
Non-Marking Tires: Protects indoor flooring from scuffs and damage.
Comprehensive Safety Systems: Equipped with automatic braking, emergency lowering, pothole protection, and onboard diagnostic systems for operator safety.
Explosion-proof charging plug

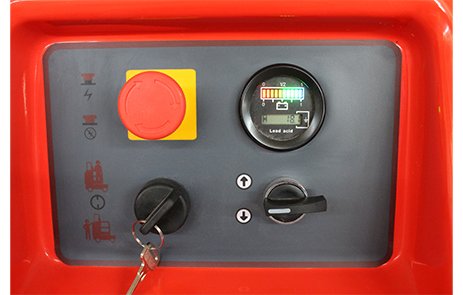

Ground control

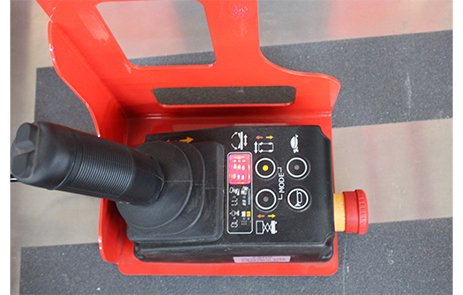

Platform control

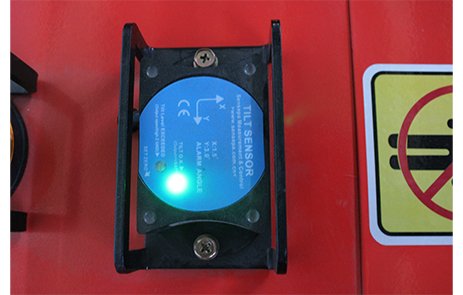

Horizontal sensor: Equipment stops when inclination angle > 2°.
| Model | AMWP6-1100 | AMWP7.5-1100 |
| Max.Working Height | 8.00m | 9.50m |
| Max.Platform Height | 6.00m | 7.50m |
| Loading Capacity | 160kg | 125kg |
| Occupants | 1 | 1 |
| Overall Length | 1.40m | 1.40m |
| Overall Width | 0.78m | 0.78m |
| Overall Height | 1.99m | 1.99m |
| Platform Dimension | 0.66m×0.67m | 0.66m×0.67m |
| Wheel Base | 1.075m | 1.075m |
| Turning Radius | 0.3m | 0.3m |
| Travel Speed(Stowed) | 3km/h | 3km/h |
| Travel Speed(Raised) | 0.8km/h | 0.8km/h |
| Up/Down Speed | 22/20sec | 28/22sec |
| Gradeability | 25% | 25% |
| Drive Tyres | φ305×100mm | φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/2kW | 24VDC/2kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A |
| Weight | 1160kg | 1280kg |
