SPECIFICATIONS

  • Max. Working Height

    6.7M~14M

  • Max. Platform Height

    4.7M~12M

  • Rated Load

    120KG~150KG

DESCRIPTIONS

Single mast aluminum lift is a kind of small aerial work platform, which can go through the doors and use in room. The lifting height of it is 4-10m, and it can load 100-150kg. It’s small, light and easy to operate. It has universal wheels for easy movement.


High-strength high-quality aluminum alloy material.


Beautiful appearance, small sae and light weight, one person can drag and walk.


The platform itself wears safety steel ropes and safety protection devices.


The equipment is equipped with a remote control box,and the lifting can be controlled by the remote control.


The equipment adopts polyurethane tires, which has low walking resistance,low sound and doesn’t hut the ground.


Fixed pin

1-Used for fix the angle when outriggers are stowed or unfolded.

Limited switch

2-It is a key part of interlocking system, to ensure stable operation.

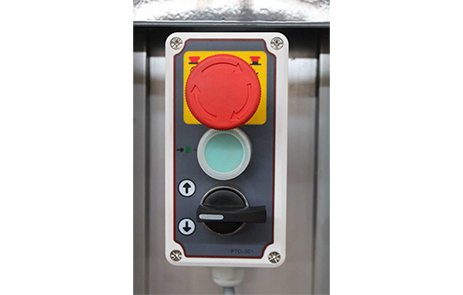

Control box

3-Include up, down, emergency stop button.

Chain

4-Plate type chain, long using time and more reliable.

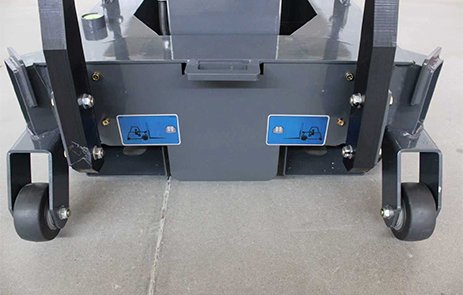

Tires

5-Adopts non-marking tires, reliable quality and long using time.

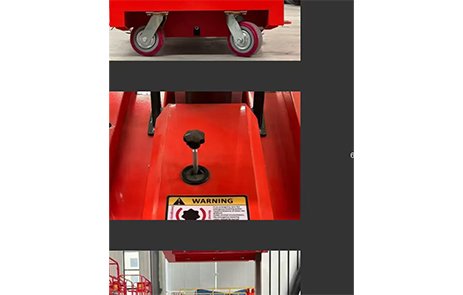

Pressure relief valve

6-Manually operate pressure relief valve for landing when the power is off.

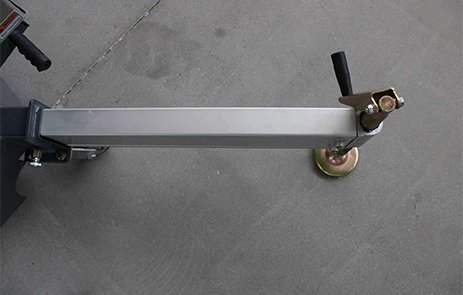

Supporting outriggers

7-Adjusting supporting outriggers, easy to get balance.

TECHNICAL PARAMETERS


  ModelGTWY1-5GTWY1-6GTWY1-8GTWY1-9GTWY1-10GTWY1-12

Max.Working Height
6.7m8.1m9.6m11m12.4m14m
Max.Platform Height4.7m6.1m7.6m9m10.4m12m
Loading Capacity150kg150kg150kg150kg136kg120kg
Occupants
Platform Dimension0.67mx0.66m0.67mx0.66m0.67mx0.66m0.67mx 0.66m0.67m×0.66m0.67mx0.66m
OVERALL DIMENSION
Overall Height1.99m1.99m1.99m1.99m1.99m2.78m
Overall Width0.76m0.76m0.76m0.76m0.76m0.76m
Overall Length1.26m1.26m1.3m1.35m1.4m1.42m
Outrigger coverage1.9m×1.8m1.90m×1.8m1.90m×1.8m2.1m×2m2.1m×2m2.4m*^2.2m
WEIGHT
AC330kg345kg385kg410kg430kg520kg
DC380kg395kg435kg460kg480kg572kg
POWER
AC220V/110V220V/110V220V/110V220V/110V220V/110V220V/110V
AC Motor1.5KW1.5KW1.5KW1.5KW1.5KW1.5KW
DC(optional)12V12V12V12V12V12V
DC motor1.5KW1.5KW1.5KW1.5KW1.5KW1.5KW
Charger12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A
