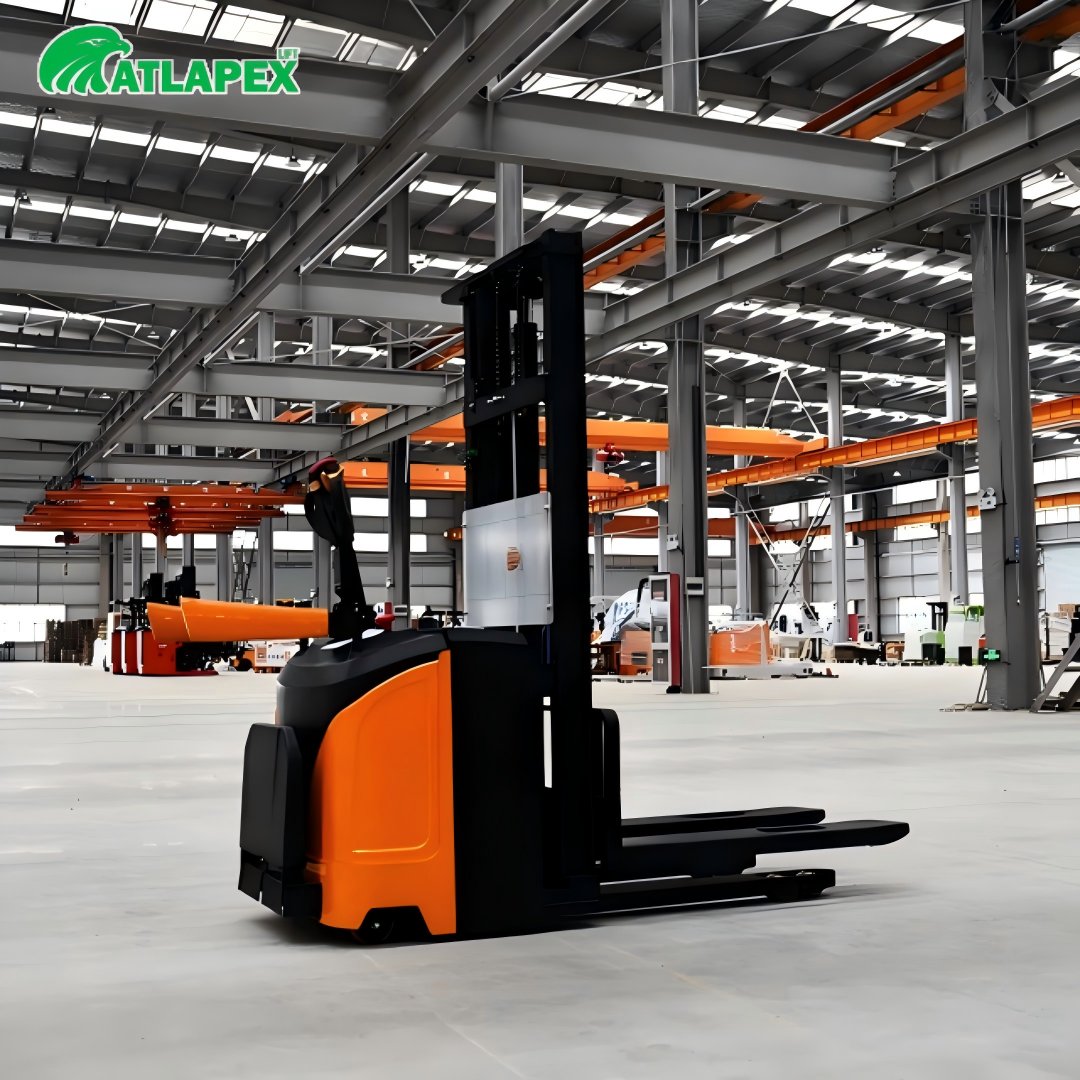

As a mature core material handling product line of ATLAPEX Machinery, the CDD Series stand-on electric pallet stacker adopts scientific and forward-looking design concepts, standing out among similar warehouse equipment. Designed for operators to stand and operate, this stacker helps enterprises fully exploit vertical warehouse space and drastically boost daily stacking operation efficiency, widely favored by logistics, manufacturing and retail storage operators globally.

Premium Safety Protection & Intelligent Control System

Safety design runs through every detail of the CDD stand-on stacker. The unit is fitted with an imported CURTIS controller equipped with multiple built-in self-protection functions to deliver comprehensive safety guarantees during operation. Operators can easily manipulate the accelerator lever to control fork lifting, lowering as well as mast extension and retraction for precise load positioning.

The whole series is equipped with an advanced AC driving system, which features compact size, light weight, high efficiency and maintenance-free operation. It eliminates the trouble of regular carbon brush replacement required by traditional DC drive equipment, cutting maintenance costs and machine downtime effectively. Matched with low-noise gear meshing gearbox, the stacker operates quietly to create a comfortable indoor working environment. Electromagnetic service brake is standard for all models to ensure stable and reliable braking under empty and loaded conditions.

Humanized Adjustable Structure & Stable Chassis Layout

Tailored for long-time stand-on operation, the CDD series comes with multiple adjustable structures to adapt to various working conditions and pallet specifications:

• Adjustable forged forks support flexible width adjustment to fit different pallets

• Adjustable pedal design relieves operator fatigue during long shifts

• Wear-resistant PU wheels are adopted as standard configuration; front wheel sizes cover 230×75mm and 254×104mm, rear wheels 80×70mm and 85×90mm, providing stable load bearing on concrete warehouse floors




All models feature a uniform 500mm load center, with wheelbase options from 1430mm to 1577mm. The total machine weight including the standard battery ranges from 1075kg to 1632kg to satisfy different load demands. The standard maximum lifting height reaches 3000mm, while the fully extended mast height ranges from 3541mm to 3571mm, greatly lifting warehouse vertical storage capacity and avoiding extra warehouse expansion investment. The minimum ground clearance of 30mm prevents chassis collision on uneven ground.

Broad Application Scenarios & Core Product Advantages

The ATLAPEX CDD stand-on electric pallet stacker is widely used in e-commerce fulfillment centers, food storage warehouses, auto parts workshops and retail storage areas. With zero emission, low noise and compact body, it is perfectly suitable for indoor closed working environments where internal combustion forklifts are prohibited.

The core competitiveness of the CDD series lies in its balance of reliable performance and low long-term operation cost. From imported intelligent control components and maintenance-free AC drive system to customizable structural sizes, this stand-on stacker acts as an economical long-term handling solution for medium and small enterprises worldwide.

Customers can download full technical datasheets, inquire about customized configurations and obtain global after-sales support via ATLAPEX official website: WWW.ATLAPEXLIFT.COM. The CDD series accepts flexible OEM and parameter customization orders to meet unique on-site operational demands.
