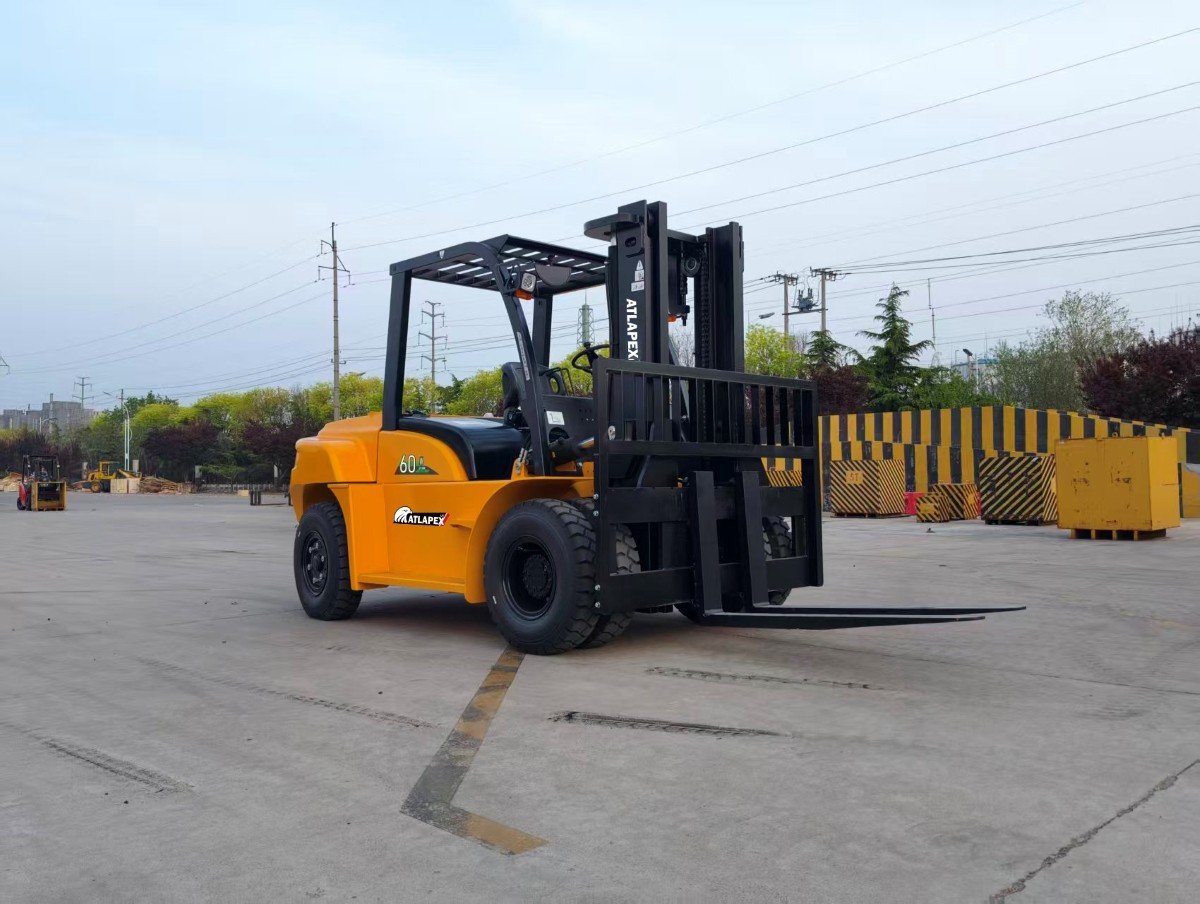

ATLAPEX proudly presents the GW60 model within its premium GW Series high-voltage lithium electric forklift lineup, a powerful 6-ton capacity workhorse engineered to replace heavy-duty internal combustion forklifts with zero-emission, cost-efficient electric performance for industrial material handling.

Core Performance & Reliable Loading Capacity

Built with a rated load of 6000kg, the GW60 delivers stable lifting performance across diverse warehouse, port, factory and logistics yard applications. It adopts a high-strength cast steel axle paired with a wide-view reinforced mast structure, offering robust load-bearing capability and excellent ground clearance. Even under full-load lifting up to a standard 3000mm maximum lift height, the machine maintains outstanding stability, with optimized front/rear overhang and wheelbase dimensions to prevent tipping during stacking, loading and long-distance transport tasks.

Powered by a 326.4V high-voltage lithium battery pack, the GW60 integrates high-efficiency permanent magnet synchronous traction and hydraulic motors. Compared with traditional fuel forklifts, it cuts daily operating costs drastically while eliminating exhaust emissions. The high-voltage platform supports fast charging and charge-and-go operation: operators can perform quick top-ups during shift breaks without waiting for full cycles, drastically boosting multi-shift working efficiency and extending continuous service life for all-day heavy workloads.

Intelligent & Human-Centered Design

The GW60 is equipped with an intelligent CAN-bus controller paired with a full-color LCD dashboard, enabling real-time monitoring of battery status, motor temperature, fault codes and operating data. All critical vehicle information is displayed intuitively to help operators track equipment health and reduce unexpected downtime.

Ergonomics are fully optimized for long-hour operation:

• Spacious suspended luxury seat with OPS power-off protection, automatically cutting power to stop lifting/travel when the operator leaves the seat for maximum site safety

• Advanced ergonomic layout with simplified control levers, low entry step and wide open hood design for easy daily inspection and component maintenance

• IP67 waterproof electrical cabin and three-proof electrical core components, fully adaptable to wet, dusty, indoor and outdoor working environments across a wide temperature range of -30°C to +60°C

A dual-pump confluence hydraulic system sits at the heart of its lifting functionality. It delivers smooth, low-noise lifting and tilting actions while reducing hydraulic energy loss, lowering heat generation and extending the service life of hydraulic pipelines and seals. The whole machine features maintenance-free brake and motor systems, slashing routine maintenance frequency and long-term service expenses.

Key GW60 Model Spec Snapshot

• Rated Load: 6000kg

• Voltage Platform: 326.4V lithium battery system

• Drive Motor: 63kW permanent magnet synchronous motor

• Max Lift Height: 3000mm (customizable mast heights available)

• Tire Type: Pneumatic tires for rough outdoor ground

• Brake Type: Hydraulic service brake + mechanical parking brake

• Protection Class: IP67 core electrical components

• Working Temperature Range: -30°C ~ +60°C

•


The ATLAPEX GW60 high voltage electric forklift balances powerful heavy-load performance, intelligent control, all-weather adaptability and sustainable operation, delivering a safer, greener and more cost-effective alternative to fossil fuel forklifts for modern heavy material handling operations.
