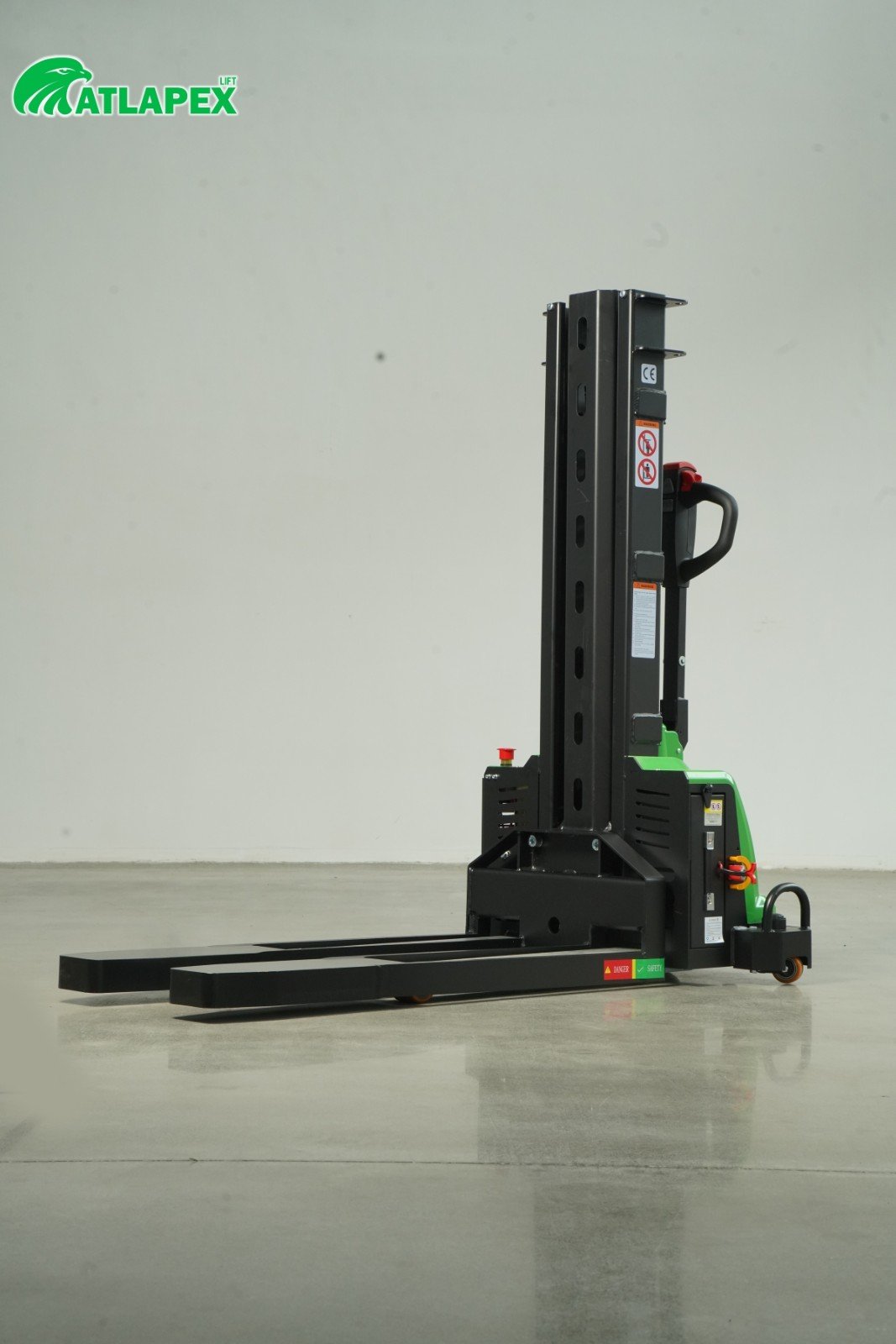

ATLAPEX officially releases the brand-new SES10, SES12 and SES15 self-lifting electric stacker models, covering 1.0t, 1.2t and 1.5t load capacities, tailored for flexible indoor cargo stacking, short-distance warehouse loading and unloading operations.

Product Core Advantages

1. Flexible Load & Lifting Range

The SES lineup provides three rated load options: 1000kg (SES10), 1200kg (SES12), 1500kg (SES15). Its lifting height spans from 900mm up to 3500mm, with multi-stage mast configurations including two-stage full-free lift and three-stage full-free lift to satisfy different rack storage height requirements for small-to-medium warehouses, retail storage and factory production lines.

2. Humanized Safety & Component Design

Magnetic removable control key: Effectively prevents equipment misoperation and key loss, convenient for fleet management;

Easy-access emergency stop button: Arranged on the control handle for instant power cut to protect operators and trucks amid emergencies;

Quick-replace side-mounted battery: The battery pack is installed on vehicle side frame, enabling easy disassembly, replacement and off-board charging to cut downtime;

Solid solid-iron outrigger legs: Adopts thick solid flat iron fabrication to strengthen load-bearing stability during stacking work.

The optimized control handle integrates turtle-speed travelling, battery level indicator, emergency reverse function and horn, with optional PIN-code anti-theft handle to avoid unauthorized vehicle usage.

3. Robust Chassis & Intelligent Hydraulic System

Built with high-strength welded chassis via precise metal bending and welding craft, the compact chassis balances long service life and space flexibility. Its oil-free hydraulic lifting structure eliminates hidden troubles of pipeline oil leakage at joints, greatly boosting hydraulic system stability. Equipped with mature CAN-BUS intelligent control system, the truck realizes real-time running status auto-monitoring and automatic fault diagnosis for easy daily maintenance.

4. Customizable Battery Configuration

Multiple battery capacity specifications are optional for SES series, matching different continuous working hour demands from half-day shift to full-day shift; supporting matched dedicated chargers to improve charging efficiency. All models adopt PU wear-resistant drive & load wheels, stable driving performance with low ground abrasion.

Application Prospect

With lightweight body design and diversified mast height options, ATLAPEX SES self-lifting stacker fits multi-scenario applications: supermarket back storage, small e-commerce warehouses, production workshop raw material handling, logistics transit stations.
