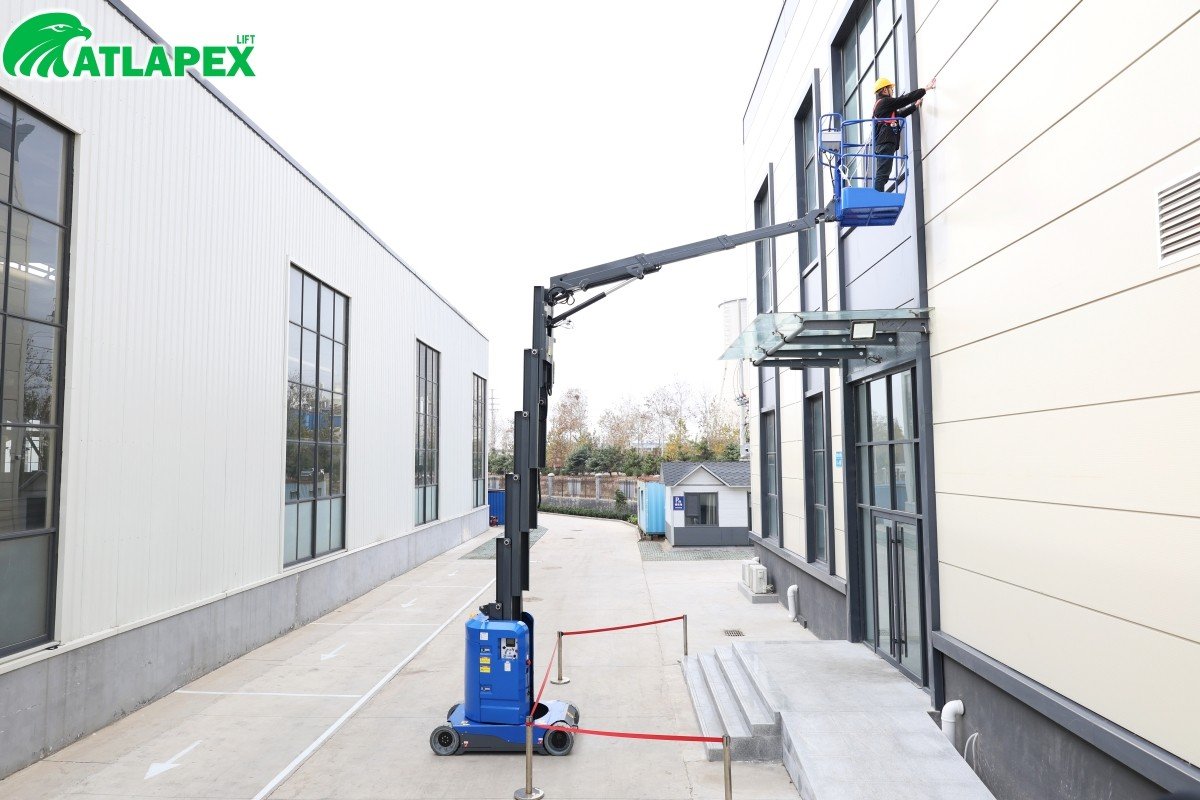

ATLAPEX AMWP12N-7100 Forklift Style Vertical Mast Lift with Jib, a new-generation aerial work platform engineered to deliver exceptional performance in tight spaces while offering extended reach capabilities. Designed for both indoor and outdoor maintenance, installation, and construction tasks, this machine redefines versatility in its class.

Unmatched Performance Specifications

Built to tackle challenging jobs with precision, the AMWP12N-7100 features robust specifications tailored for demanding applications:

• Max. Working Height: 12m (39.4 ft)

• Max. Platform Height: 10m (32.8 ft)

• Max. Working Outreach: 5.6m (18.4 ft)

• Platform Capacity: 200kg (441 lbs) for up to 2 operators

• Jib Articulation: 130° horizontal movement for enhanced positioning flexibility

• Turret Rotation: Continuous 360° rotation for full site access

• Compact Dimensions: 3.75m (L) × 0.99m (W) × 1.99m (stowed height) for maneuvering in narrow aisles and congested work areas

• Battery System: 48V/220Ah lead-acid battery paired with a 48V/35A charger, ensuring reliable, emission-free operation

• Dual Drive Motors: 48V/2.5kW (drive) + 48V/3kW (lift) for powerful, efficient performance

Key Advantages for Modern Work Sites

The AMWP12N-7100 combines a compact footprint with powerful capabilities, making it ideal for environments where space is at a premium:

1. Extended Reach with Precision

2. The articulating jib and 360° turret rotation allow operators to easily access hard-to-reach areas, even when obstacles are in the way. With a 7.2m up-and-over height capability, the lift can navigate over barriers and place workers exactly where they need to be.

3. Exceptional Maneuverability

4. At just 0.99m wide and with zero tail swing, the lift is designed to operate in confined spaces, including hallways, elevators, and production floors. The non-marking tires protect sensitive flooring surfaces, making it suitable for indoor use in finished buildings.

5. Safety at Every Level

6. Built with a comprehensive suite of safety features, the AMWP12N-7100 prioritizes operator well-being:

• Emergency descent and stop systems

• Tilt sensor alarm and automatic pothole protection

• Load sensing and fault diagnosis systems

• Proportional joystick controls for smooth, precise operation

• Platform and ground control stations for dual-operation safety

7. Reliable, Low-Maintenance Operation

8. Powered by a durable 48V battery system, the lift offers quiet, emission-free performance ideal for indoor and environmentally sensitive work sites. The heavy-duty forklift-style mast design ensures long-term durability, while the on-board fault diagnosis system simplifies maintenance and reduces downtime.

Versatile Applications

The AMWP12N-7100 is perfectly suited for a wide range of industries and tasks:

Facility maintenance (HVAC, electrical, and lighting work)

Retail and commercial building upkeep

Warehouse and logistics center operations

Airport and transit station maintenance

Construction and renovation projects

For more information about the AMWP12N-7100 Forklift Style Vertical Mast Lift with Jib, visit www.atlapexlift.com or contact our sales team at info@atlapexlift.com.
