Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T

Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T

Four-way Driving for VNA operations and long material handling.

Easy and safe operation with high efficiency and low failure.

Intelligent HD display for real-time information and fault display.

Full AC drive system for faster response and precise control.

EPS system for convenient and flexible operation and improved high-speed stability.

Real-time display of Driving Wheel Angle for precise direction adjustments and accurate identification.

Large capacity battery for strong power, reliable operation, and convenient charging, Long cvcle life and lowmaintenance cost.

Side-pull battery for multi-shift operation, with standard battery trolley for easy replacement.


Get Free Quote
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T
Electric Muti-directional Forklift (Sit-on) — 1.5T, 2T, 2.5T

SPECIFICATIONS

  • Model

    CQD-S

  • Rated Load

    1.5T, 2T, 2.5T

  • Lifting Height

    4500MM

DESCRIPTIONS

ATLAPEX  Electric Muti-directional Forklift  — 1.5T,2T,2.5T adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatly improve your warehouse space and improve your efficiency.

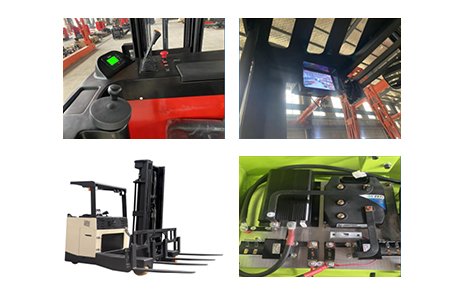

_20260313131151_1882_48

TECHNICAL PARAMETERS

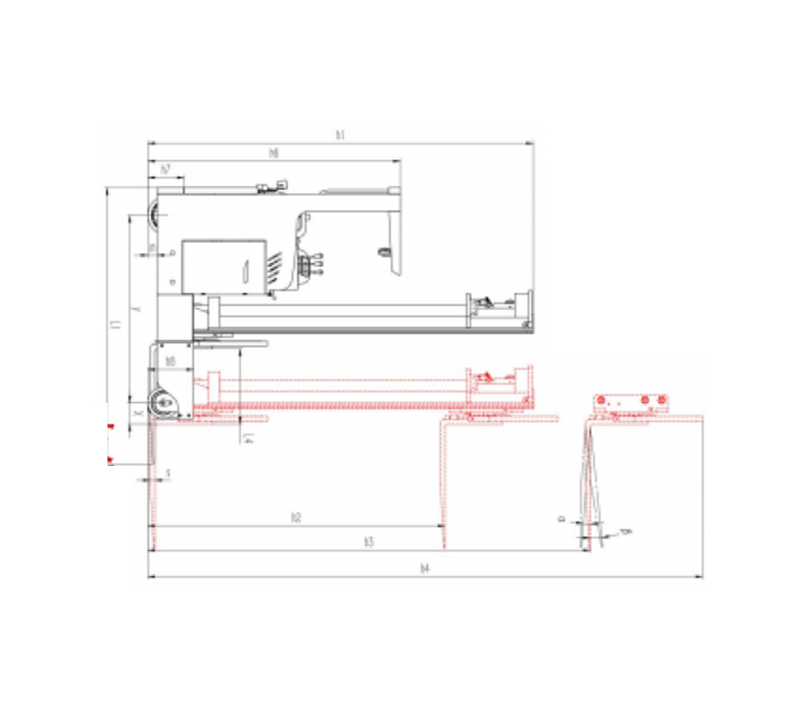

_20260313131155_1883_48 _20260313131155_1884_48
ModelCQD15SCQD20SCQD25S
PowerElectricElectricElectric
Operating TypeSit-on TypeSit-on TypeSit-on Type
Load Capacity1500kg2000kg2500kg
Load Center500mm500mm500mm
Front Overhang200mm200mm200mm
Wheelbase1622mm1722mm1822mm
Self-weight With Battery3400kg3500kg3800kg
Wheel TypePUPUPU
Front Wheelφ267*114mmφ267*114mmφ267*114mm
Driving wheelφ382*142mmφ382*142mmφ382*142mm
Balance Wheelφ180*76mmφ180*76mmφ180*76mm
Wheel Tread (Front Wheel)1430mm1430mm1430mm
Wheel Tread (Rear Wheel)703mm703mm703mm
Mast Height After Mast Fall2110mm2110mm2360mm
Free Lift1500mm1500mm1500mm
Lift Height4500mm4500mm4500mm
Height,mast entended5480mm5480mm5480mm
Height of overhead guards2280mm2280mm2280mm
Fork Height When last Lowdered35mm40mm45mm
Fork tilting angle Front/Rear3/5°3/5°3/5°
Overall length with fork   retracted2505mm2585mm2700mm
Overall Length2046mm2146mm2246mm
Overall Width1680mm1680mm1680mm
Fork Size1070/100/35mm1070/122/40mm1070/125/45mm
Fork Spread210-705mm260-705mm270-840mm
Reach Distance655mm700mm640mm
Min.Ground clearace80mm80mm80mm
Min, Turning Radius1905mm2000mm2105mm
Travel Speed(Unload/Load)8/7km/h8/7km/h8/7km/h
Lifting Speed(Unload/Load)0.250/0.240m/s0.240/0.220m/s0.240/0.220m/s
Lowering Speed(Unload/Load)0.240/0.260m/s0.240/0.260m/s0.240/0.260m/s
Max.gradeability(Unload/Load)10%10%10%
Service BrakeElectromagneticElectromagneticElectromagnetic
Drive Motor6.5kw6.5kw6.5kw
Lift Motor8.6kw8.6kw8.6kw
Battery TypeLead AcidLead AcidLead Acid
Battery voltage/nominal   capacity48V/300AH48V/400AH48V/400AH
Charger48V/40AH48V/50AH48V/50AH
Type of Drive ControlACACAC
Sound level at the driwer's   ear acc.75dB75dB75dB
