QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Model

    CDMS

  • Rated Load

    3T

  • Max. Lifting Height

    15000MM

DESCRIPTIONS

This seated-on electric three-way forklift has a rated load of 1500kg and a maximum lifting height of 9000mm, powered by an AC drive system and 48V high-capacity lead-acid battery. It features a wide-angle shock-absorption mast, USA CURTIS drive control system, and electronic steering for quiet, portable operation. Key advantages include 180° fork rotation with side shift, integrated low-noise hydraulics, multi-functional instrument display, and circuit fault detection with error code diagnosis. Safety systems cover stepless speed regulation, multiple controller protection, a casual safety seat, and automatic corner deceleration. It supports optional lithium batteries, thumb switches, height preselection, and wireless monitoring, alongside non-standard OEM customization for narrow-aisle stacking operations.

TECHNICAL PARAMETERS

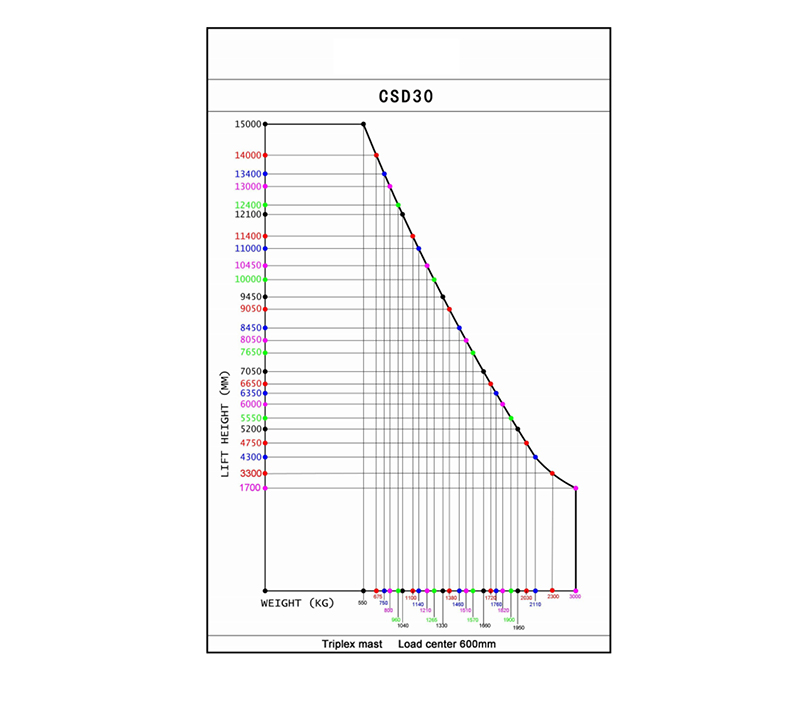

111
  Model
CDMS30
  Type of power
Lead-acid battery
  Driving type
Sit on type
  Rated loadKg3000
  Lifting heightmm15000
  Overall lengthmm2780
  Fork dimensionsL(mm)1150
  Free lifting heightmm5986
  Mast lean forward/backward1/3
  Mast rotate angle (left/right)220
  Mast closed heightmm6815
  Extended heightmm16389
  Height of overhead guard heightmm2270
  Height of vehicle off the groundmm50
  Load centermm600
  Chassis width rearmm1600
  Chassis width frontmm980
  Wheel basemm1735
  Seat heightmm1220
  Front tyre dimensionmm413*178
  Rear tyre dimensionmm457*229
  Stacking channel width (1t pallet 1000x1000)(1.5t
  pallet 1200×1200)
mm2200
  BatteryW/AH80/400
  Grade ability(load/unload)%18/20
  Traction motorAC19.5KW
  Lifting motorAC15KW
  Driving speedKm/h16
  Lifting speed,full load/no loadm/s0.55/0.70
  Net 90 °Transfer aisle widthmm2700
