SPECIFICATIONS

  • Model

    QDD-B

  • Rated Load

    3T,4T

DESCRIPTIONS

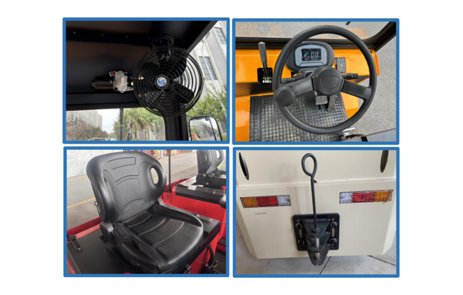

This seated-on towing tractor offers a rated traction capacity of 3000–4000kg, powered by an AC drive system and USA CURTIS controller. It features electronic power steering, an axle drive unit, and carbon-brush-free, maintenance-free motors, paired with electromagnetic regenerative braking and a casual safety seat. Key advantages include simple operation, flexible steering, and forward/backward fine tuning. Safety systems cover stepless speed regulation, multiple controller protection, emergency braking, automatic corner deceleration, a walking warning light, and hydraulic braking. It supports optional semi/fully enclosed cabs, lithium batteries, side-pull battery structures, and non-standard OEM customization for heavy-duty towing operations.

_20260313140709_1938_48

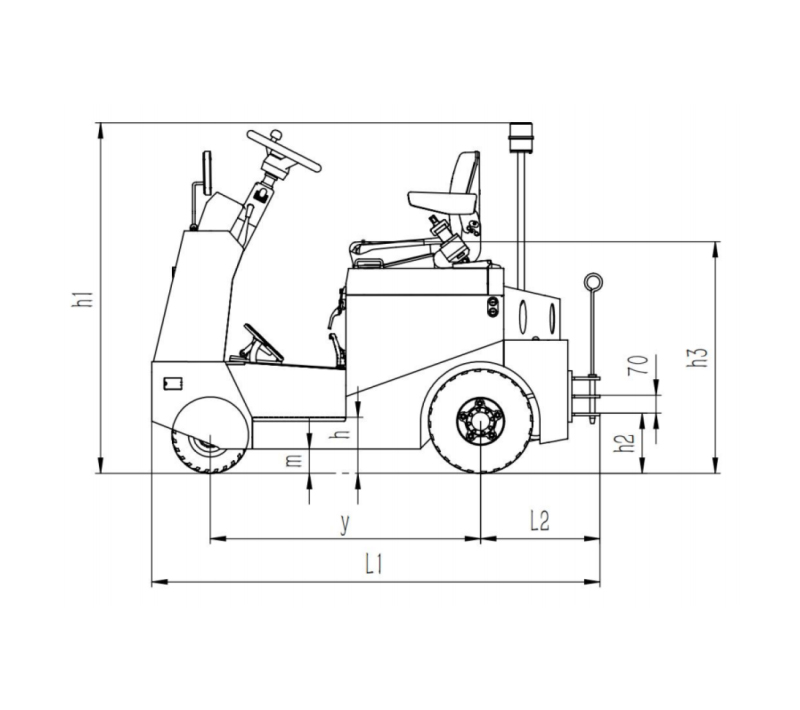

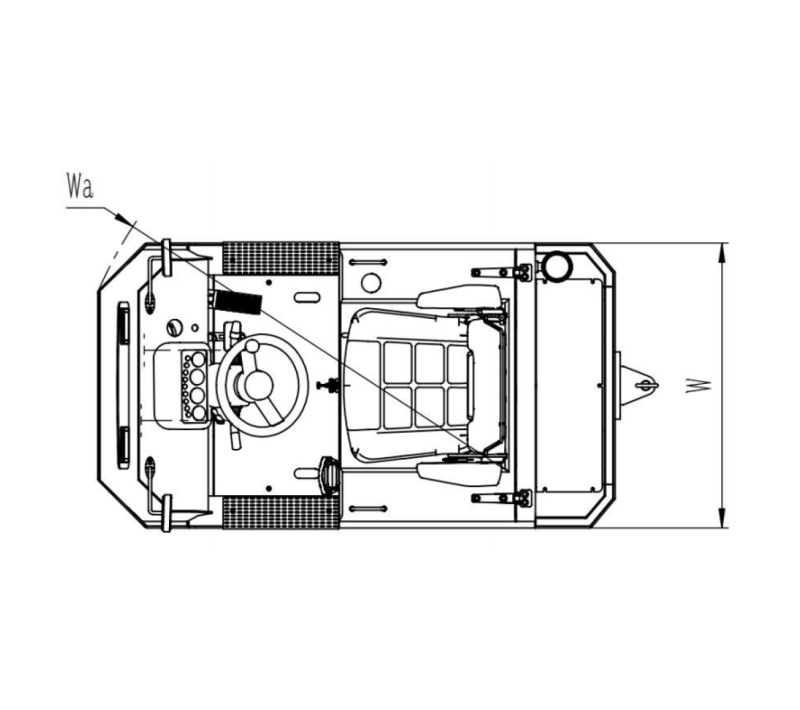

TECHNICAL PARAMETERS

_20260313140713_1939_48 _20260313140714_1940_48
Model
QDD30BQDD40B  QDD40BG
Type of power
Lead-acid battery
Driving type
Seated-on type
Rated traction capacitykg3000 4000 4000
Overall lengthL1(mm)1748 1748 1794
Overall widthW(mm)890 890 890
Overall heighth1(mm)1367 1367 1367
Seat heighth3(mm)905 905 905
Height of station boardh(mm)218 218 218
Hook height adjustment rangeh2(mm)205-265205-265205-265
Height ofvehicle off the ground(min)m(mm)95 95 95
Battery.voltage/capacityV/Ah24/21024/24024/350
Weight of batterykg190 220 290
Vehicle weight(including battery)kg820 850 930
Driving motor powerkw3.6
Number of wheels(front/back)(x=drive wheel)
2/2x2/2x2/2x
Tire dimensions,steering sideSolid rubber tire3.50-53.50-53.50-5
Tire dimensions,drive side4.00-84.00-84.00-8
Rear overhangL2(mm)466 466 466
Wheel track,steering sidemm220 220 220
Wheel track,drive Sidemm776 776 776
Wheelbasey(mm)1054 1054 1100
Turn radiusWa(mm)1397 1397 1443
Driving speed,full load/no loadkm/h6-75-77-10
Maximum climb,full load/no load%6-144-145-14
Control mode
Transistor stepless speed regulation
Vehicle noisedB(A)≤70≤70≤70
Traction bolts
Latch
