QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Model

    QDD

  • Rated Load

    6T

DESCRIPTIONS

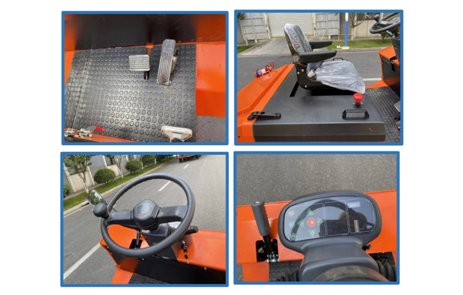

This seated-on towing tractor has a rated traction capacity of 6000kg, powered by an AC drive system and USA CURTIS controller. It features electronic power steering, an axle drive unit, and carbon-brush-free, maintenance-free motors, paired with electromagnetic regenerative braking and a casual safety seat. Key advantages include simple operation, flexible steering, and forward/backward fine tuning. Safety systems cover stepless speed regulation, multiple controller protection, emergency braking, automatic corner deceleration, a walking warning light, and hydraulic braking. It supports optional semi/fully enclosed cabs, lithium batteries, side-pull battery structures, and non-standard OEM customization for heavy-duty towing operations.

_20260313134601_1926_48

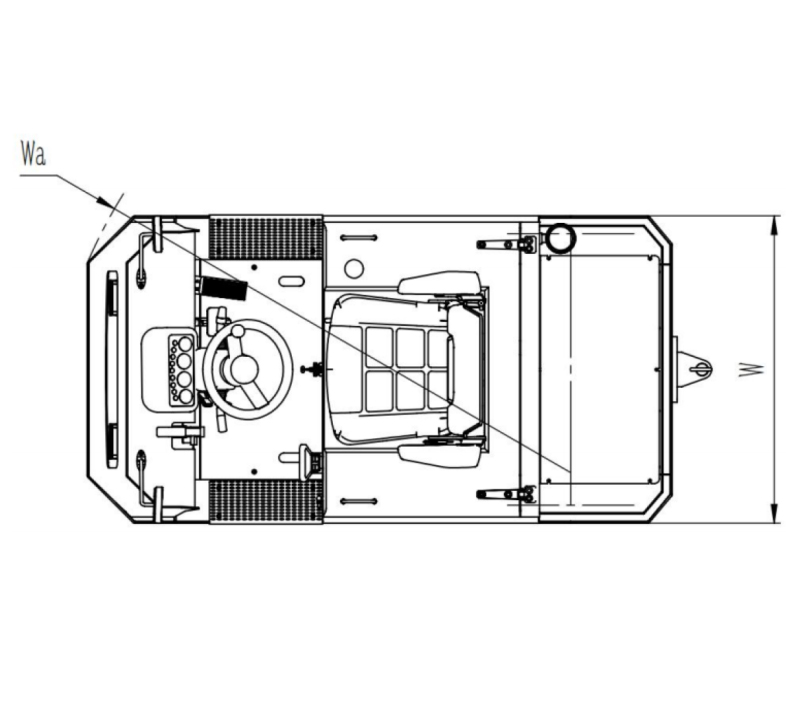

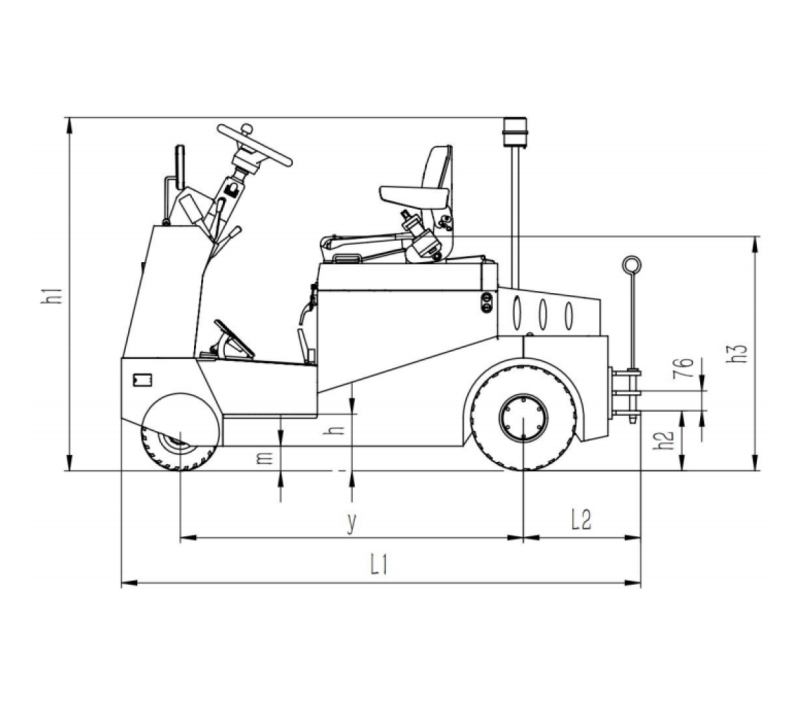

TECHNICAL PARAMETERS

_20260313142146_1959_48 _20260313142147_1960_48
Model
QDD60
Type of power
Lead-acid battery
Driving type
Seated-on type
Rated traction capacitykg6000
Overall lengthL1(mm)2004
Overall widthW(mm)985
Overall heighth1(mm)1365
Seat heighth3(mm)905
Height of station boardh(mm)218
Hook height adjustment rangeh2(mm)200-260
Height of vehicle off the ground(min)m(mm)95
Battery,voltage/capacityV/Ah48/280
Weight of batterykg450
Vehicle weight(including battery)kg1150
Driving motor powerkw
Number of wheels(front/back)(x=drive wheel)
2/2x
Tire dimensions,steering side
Solid rubber tire
3.50-5
Tire dimensions,drive side4.00-8
Wheel track,steering sidemm220
Wheel track,drive Sidemm776
Wheelbasey(mm)1324
Rear overhangL2(mm)452
Turn radiusWa(mm)1690
Driving speed,full load/no loadkm/h7-11
Maximum climb,full load/no load%5-16
Control mode
Transistor stepless speed regulation
Vehicle noisedB(A)≤70
Traction bolts
Latch
