QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Model

    QDD

  • Rated Load

    8T, 10T, 12T, 15T

DESCRIPTIONS

Equipped with AC drive and USA CURTIS controller, this tractor delivers 8000–15000kg traction. It boasts electronic power steering, axle drive, and maintenance-free operation. Features include electromagnetic braking, flexible steering, and fine tuning. Safety systems cover speed regulation, emergency brake, corner deceleration, and warning lights. Customizable with cabs, lithium batteries, and non-standard OEM for heavy-duty towing.

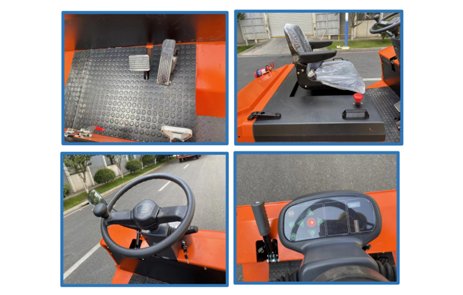

_20260313134601_1926_48

TECHNICAL PARAMETERS

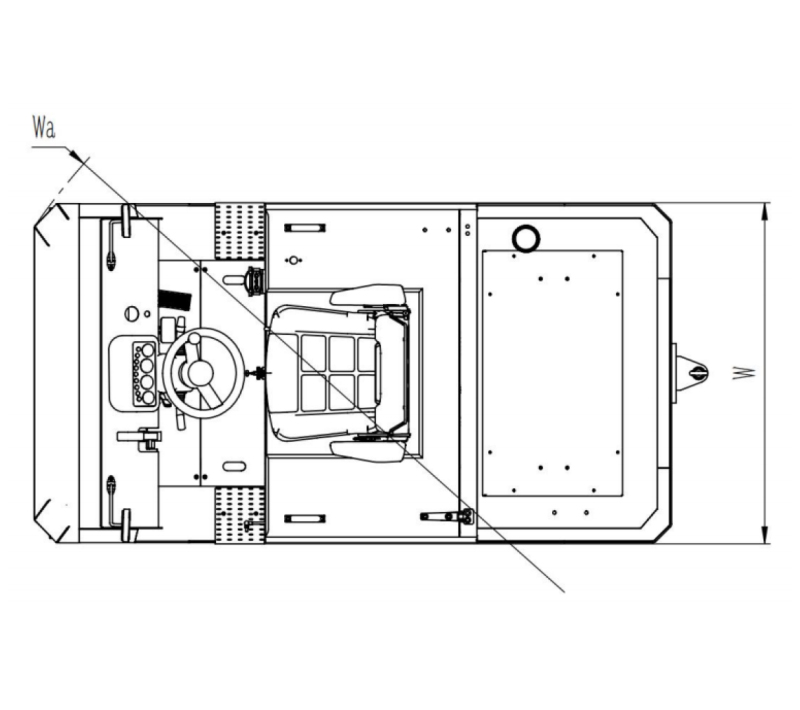

_20260313134615_1927_48 _20260313134615_1928_48
Model
QDD80QDD100  QDD120 QDD150
Type of power
Lead-acid battery
Driving type
Seated-on type
Rated traction capacitykg8000 10000 12000 15000
Overall lengthL1(mm)2390 2390 2390 2390
Overall widthW(mm)1200 1200 1200 1200
Overall heighth1(mm)1498 1498 1498 1498
Seat heighth3(mm)1055 1055 1055 1055
Height of station boardh(mm)365 365 365 365
Height of hook(min)h2(mm)393 393 393 393
Height of vehicle off the ground(min)m(mm)140 140 140 140
Battery,voltage/capacityV/Ah48/30048/40048/40048/400
Weight of batterykg480 650 650 650
Vehicle weight(including battery)kg2690 2860 2860 2860
Driving motor powerkw11 13
Number of wheels(front/back)(x =drive
wheel)

2/2x2/2x2/2x2/2x
Tire dimensions,steering side
Solid rubber tire
5.00-85.00-85.00-85.00-8
Tire dimensions,driving side6.50-106.50-106.50-106.50-10
Wheel track,steering sidemm932 932 932 932
Wheel track,driving Sidemm960 960 960 960
Wheelbasey(mm)1531 1531 1531 1531
Rear overhangL2(mm)509 509 509 509
Tum radiusWa(mm)2260 2260 2260 2260
Driving speed,full load/no loadkm/h7-107-117-127-14
Maximum climb,fll load/no load%6-156-154-154-15
Control mode
Transistor stepless speed regulation
Vehicle noisedB(A)≤70≤70≤70≤70
Traction bolts
Latch
