SPECIFICATIONS

  • Model

    QDD-A

  • Rated Load

    2T, 3T, 5T

DESCRIPTIONS

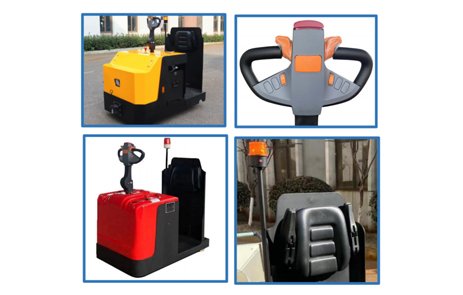

This stand-on towing tractor delivers a rated traction capacity of 2000–5000kg, powered by an AC drive system and USA CURTIS controller. It features electronic power steering, a shock-absorber drive unit, and carbon-brush-free, maintenance-free motors, paired with electromagnetic regenerative braking and Omron inductive micro switches. Key advantages include a soft cushion with protective armrests and quiet operation. Safety systems cover stepless speed regulation, multiple controller protection, emergency reverse/braking, automatic corner deceleration, and a walking warning light. It supports optional LED headlights, lithium batteries, side-pull batteries, and non-standard OEM customization for efficient material towing.

_20260313134946_1931_48

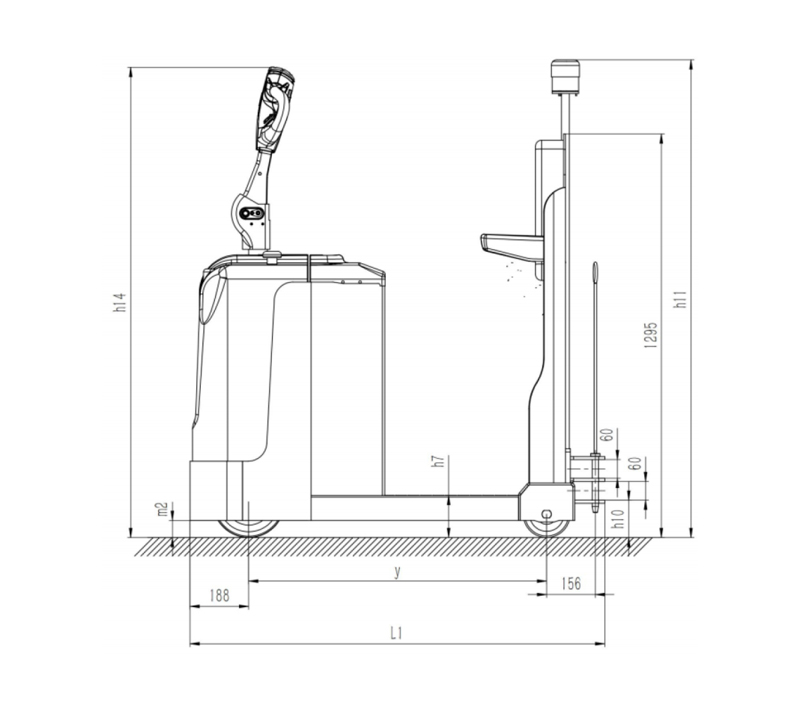

TECHNICAL PARAMETERS

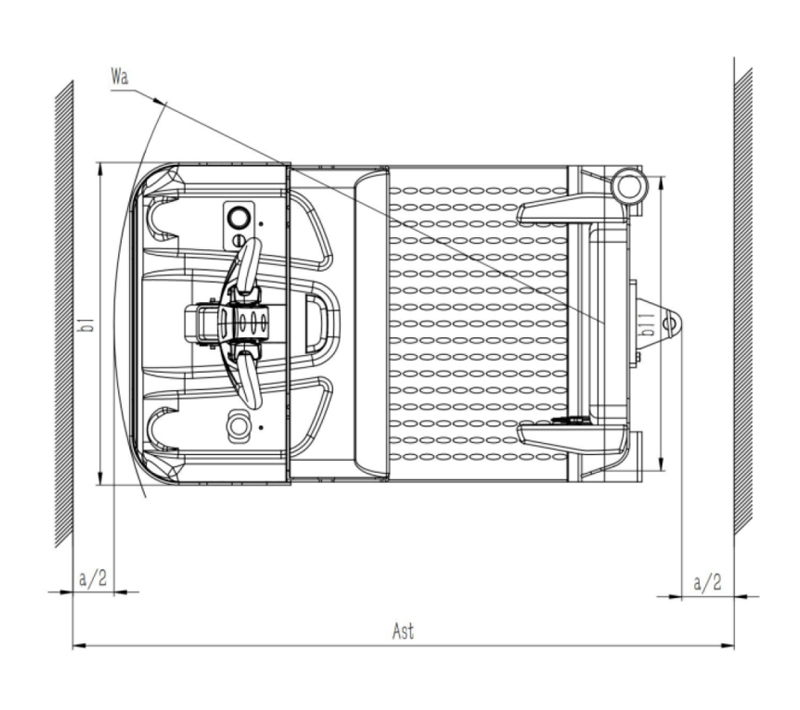

_20260313134953_1933_48 _20260313134953_1932_48
Model
QDD20AQDD30AQDD50A
Type of power
Lead-acid battery
Driving type
Stand-on type
Rated traction capacityQ(kg)2000 3000 5000
Overall lengthL1(mm)1330 1330 1350
Overall widthb1(mm)780 780 780
Overall heighth11(mm)1540 1540 1615
Height of traction baseh10(mm)60/12060/120194/274
Height of operation handleh14(mm)1510 1510 1510
Height of vehicle off the ground(min)m2(mm)55 55 55
Battery,voltage/capacityV/Ah24V/210A24V/210A24V/280A
Weight of batterykg190 190 245
Vehicle weight(including battery)kg630 630 1130
Driving Motor Power (S2-60MIN)KW24V/1.6KW24V/1.6KW24V/2.2KW
Tire
Polyurethane
Wheel dimensions,front wheel
φ230×75φ230×75φ230×75
Wheel dimensions,rear wheel
φ150x50φ150×50φ210x85
Number of wheels,front and rear(x=
driving wheel)

1x/21x/21x/2
Rear wheel trackb11(mm)662 662 622
Wheelbasey(mm)955 955 990
Turn radiusWa(mm)1182 1182 1215
Axle full load,/no load front/rearkg213/417213/417311/819
Driving speed,full load/no loadKm/h4.0/5.04.0/5.04.0/5.0
Maximum climb,full load/no load
(S2-5MIN)
%3.0/8.03.0/8.03.0/8.0
Braking type
Electromagnetic brake
