QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Model

    QDD-E

  • Rated Load

    25T

DESCRIPTIONS

With 25000kg traction capacity, this AC-driven tractor uses USA CURTIS control. It has electronic steering, electromagnetic braking, and shock absorption systems. Safety features include speed regulation, emergency brake, corner deceleration, and shut-off valves. Customizable with traction seats, lithium batteries, and OEM options for heavy-duty use.

_20260313133641_1909_48

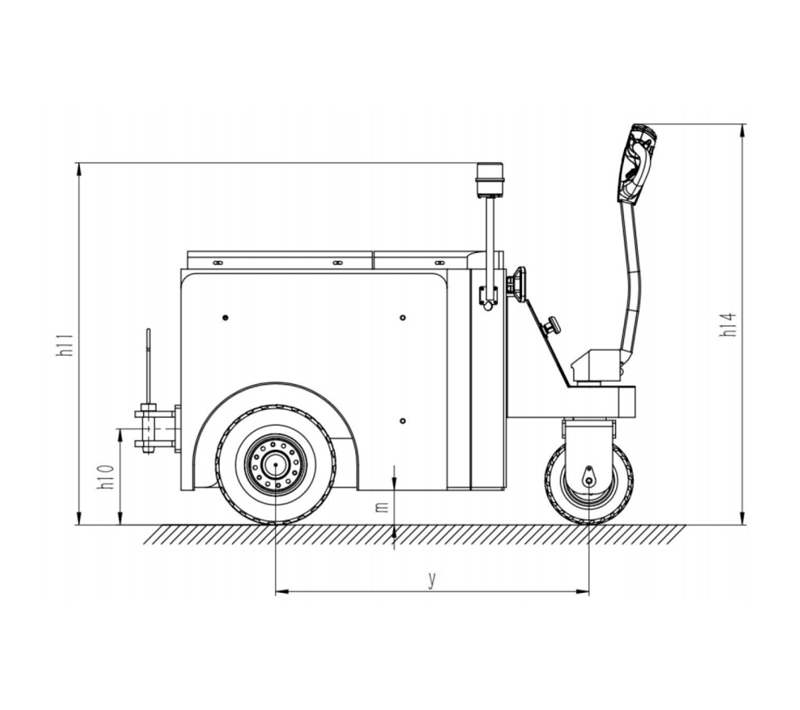

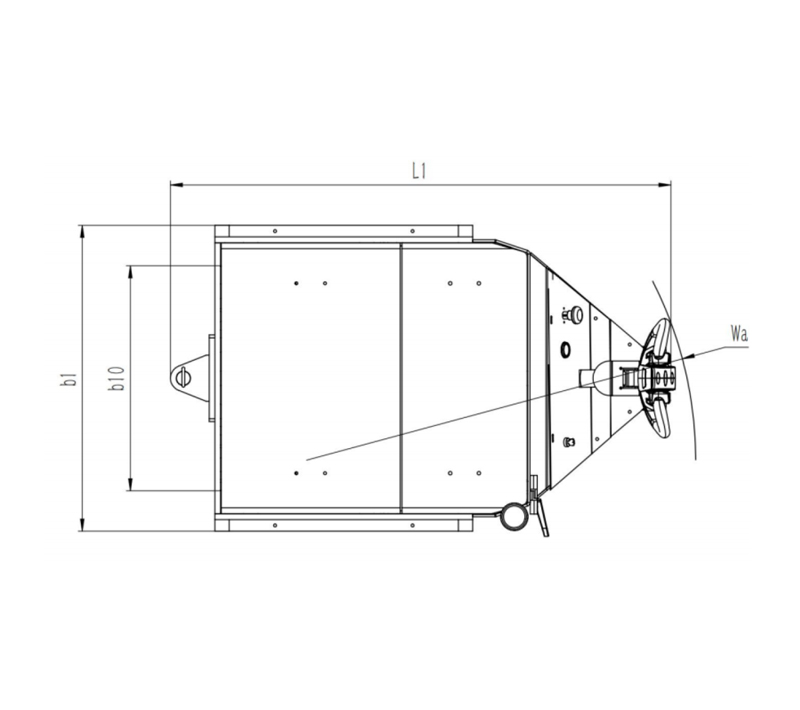

TECHNICAL PARAMETERS

_20260313133649_1911_48 _20260313133649_1910_48
Model
QDD250E
Type of power
Lead-acid battery
Driving type
Walkie type
Rated traction capacityQ(kg)25000
Overall lengthL1(mm)2270
Overall widthb1(mm)1060
Overall heighth11(mm)1235
Height of traction baseh10(mm)305/325/345
Height of operating handleb11(mm)1380
Height of vehicle off the ground(min)m(mm)118
Battery,voltage/capacityV/Ah36V/240A
Weight of batterykg216
Vehicle weight(including battery)kg2170
Driving Motor Power(S2-60MIN)KW36V/4KW
TireRubber solid tire
Wheel dimensions,front wheel
3.50-5
Wheel dimensions,rear wheel
4.00-8
Number of wheels,front and rear(x=driving wheel)
2/2x
Rear wheel trackb10(mm)907
Wheelbasey(mm)1060
Turn radiusWa(mm)1370
Axle full load,/no load front/rearkg443/1727
Driving speed,full load/no loadKm/h2.5/4.0
Maximum climb,full load/no load (S2-5MIN)%2.0/12.0
Braking typeElectromagnetic brake
