This stand-on electric vehicle mover is engineered for efficient material handling, featuring an AC drive system for maintenance-free operation and powerful performance. It is equipped with a 24V/210Ah lead-acid battery (lithium-ion optional) with a side-pull structure for easy replacement.
Model
Rated Load
This stand-on electric vehicle mover is engineered for efficient material handling, featuring an AC drive system for maintenance-free operation and powerful performance. It is equipped with a 24V/210Ah lead-acid battery (lithium-ion optional) with a side-pull structure for easy replacement.

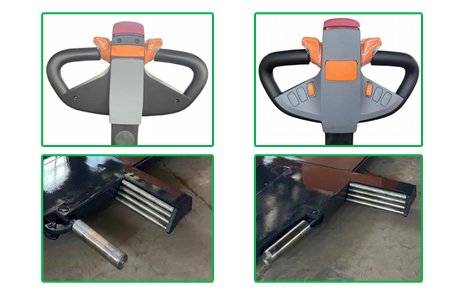

Key advantages include: USA Curtis AC drive control system Multi-function integrated handle with electronic steering Electromagnetic regenerative braking and drive shock absorption Front wheel multi-point universal load bearing Safety features: Stepless speed regulation Multiple automatic protection systems Emergency reverse and brake devices Automatic corner deceleration Cylinder safety shut-off valve This unit delivers reliable, safe, and efficient operation for heavy-duty material transport tasks.
| Model | CBD30Z | |||
| Type of power | Lead-acid battery | |||
| Driving type | (Stand-on Pedal model) | |||
| Rated traction capacity | Q(kg) | 3000 | ||

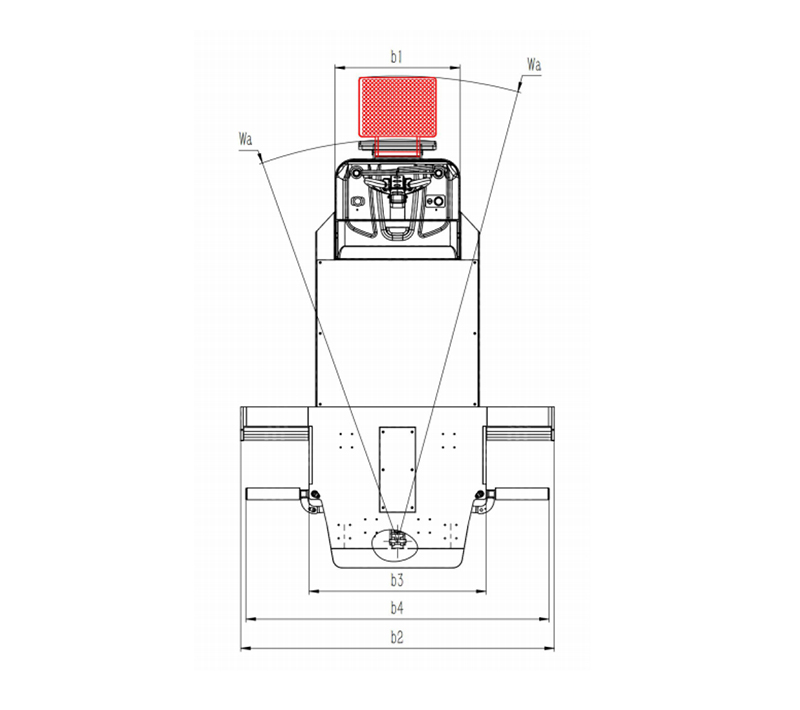

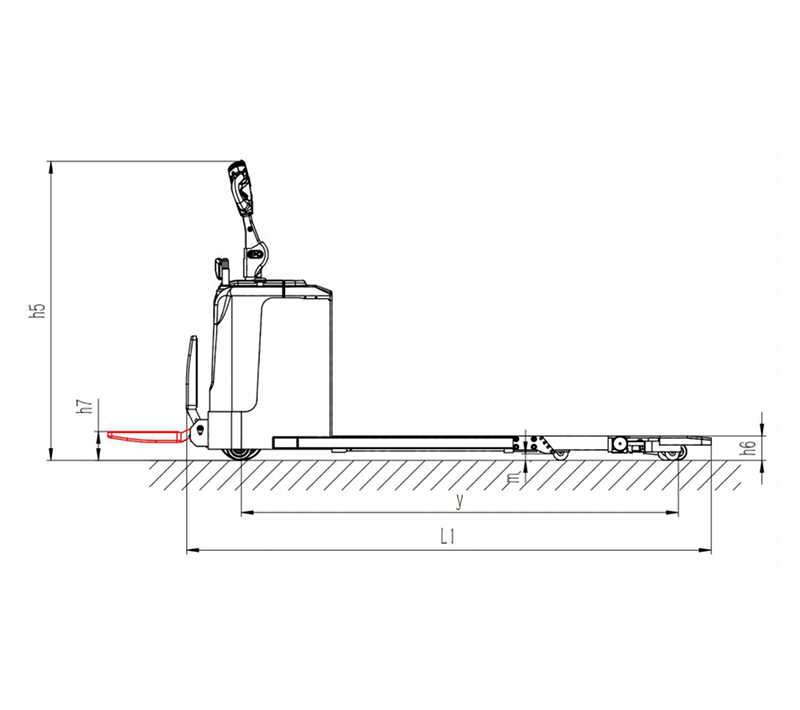

| Overall length(Pedal retracted/down) | L1(mm) | 2650/3050 | ||
| Overall width | b1 | 776 | ||
| Load-bear platform height | h6(mm) | 125 | ||
| Pedal height | h7(mm) | 140 | ||
| Load-bear platform width Inner width/outer width | b2/b3 | 1950/1100 | ||
| The hydraulic gear width when deployed | b4(mm) | 1885 | ||
| Hydraulic gear rotation angle | 90 | |||
| Height of operating handle(max/min) | h5(mm) | 1510 | ||
| Height of vehicle off the ground | m(mm) | 34 | ||
| Battery,voltage/capacity | V/Ah | 24/210 | ||
| Battery weight | kg | 190 | ||
| Vehicle weight(including battery) | kg | 900 | ||
| Driving motor power(S2-60min) | kw | 1.6(AC) | ||
| Hydraulic motor power | kw | 2.2 | ||
| Tire | Polyurethane | |||
| Tire dimensions,bear side directional wheels/universal wheels | mm | φ85×70/φ76x52 | ||
| Tire dimensions,drive side | mm | φ230×75 | ||
| Dimension of balance wheel | mm | φ130X55 | ||
| Number of wheels,front(universal wheels/directional wheels)/rear(x =drive wheel) | 7(6/1)/1X-2 | |||
| Wheel track,drive side | mm | 544 | ||
| Wheel track,bear side(maximum) | mm | 660 | ||
| Wheelbase | Y(mm) | 2205 | ||
| Turning radius(pedal retracted/down) | Wa(mm) | 2495/2890 | ||
| Drive speed,full load/no load | km/h | 4.0/5.0 | ||
| Maximum climbing full load/no load (S2-5min) | 6 | 2/5. | ||
| Braking type | Electromagnetic brake | |||
| Steering type | Electronic steering | |||
| Battery replacement method | Lifting type | |||
