Engineered for heavy-duty vehicle moving, this 3T stand-on electric pallet truck features a high-performance AC drive system and USA CURTIS control system for seamless, low-maintenance operation. It comes standard with a 24V/210Ah lead-acid battery (lithium battery optional) with a side-pull structure for quick replacement, plus OEM customization support.
Model
Rated Load
Engineered for heavy-duty vehicle moving, this 3T stand-on electric pallet truck features a high-performance AC drive system and USA CURTIS control system for seamless, low-maintenance operation. It comes standard with a 24V/210Ah lead-acid battery (lithium battery optional) with a side-pull structure for quick replacement, plus OEM customization support.

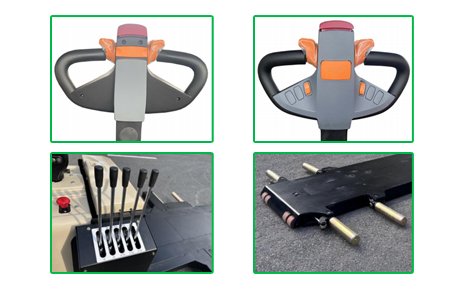

Core highlights include 5-way hydraulic valves, variable wheelbase front levers, and front-wheel multi-point universal load-bearing for enhanced adaptability. The electromagnetic regenerative braking and drive shock absorption system ensure stability, while electronic steering delivers portability. Safety is prioritized with stepless speed regulation, multiple automatic controller protections, emergency reverse/brake devices, automatic corner deceleration, and cylinder safety shut-off valves—making it ideal for efficient and secure industrial vehicle relocation.
| Model | CBD30ZQ | |
| Type of power | Electric | |
| Driving type | (Stand-on Pedal model) | |
| Rated load | Q(kg) | 3000 |
| Front end distance | X(mm) | 1165~2085 |
| Wheel base | Y(mm) | 3290 |
| Self-weight(including batteries) | kg | 1800 |
| Tires | Polyurethane | |
| Dimensions of drive wheels | mm | φ230×75 |
| Dimensions of bearing wheels | mm | φ85*70 |
| Dimensions of balance wheel | mm | φ130×55 |
| Number of wheels(front/back)(x=drive wheels) | mm | 10/4-1x |

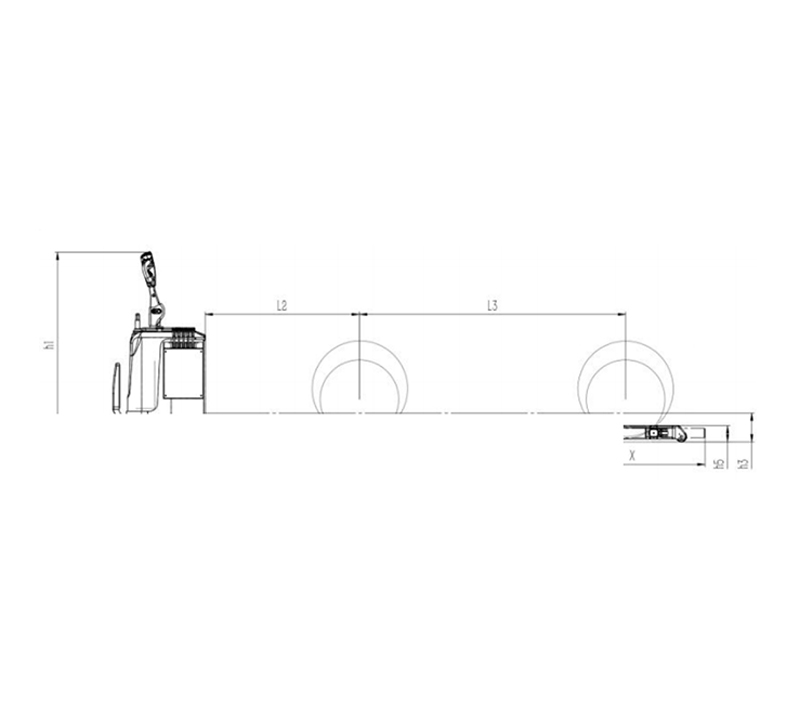

| Ground height of operation handle(max/min) | h1(mm) | 1530/1140 |
| Elevation | h3(mm) | 230 |
| Platform height off the ground(minimum) | h5(mm) | 130 |
| Total length(pedals retracted) | L0(mm) | 4720～5640 |
| Total length (pedals down) | L1(mm) | 5120～6040 |
| Distance from vehicle wheel to front plate | L2(mm) | 1230 |
| The wheel base of the vehicle being transferred | L3(mm) | 2120～3040 |

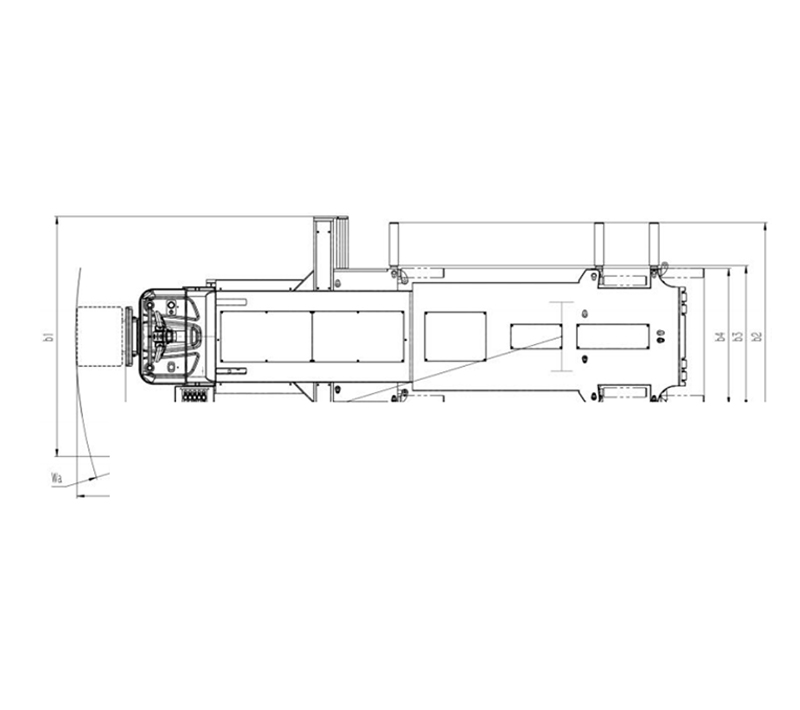

| Total width | b1(mm) | 1950 |
| The lever extends out wide | b2(mm) | 1850 |
| The lever extends out the inner width | b3(mm) | 1150 |
| Shift lever retracted to outer width | b4(mm) | 1110 |
| Ground clearance | m(mm) | 20 |
| Turn radius (pedals up/down) | Wa(mm) | 3570/3965 |
| Speed,full load/no load | km/h | 4.0/5.0 |
| Speed up,full load/no load | mm/s | 25/30 |
| Rate of descent,full load/no load | mm/s | 29/16 |
| Maximum climbing capacity,full load/no load | % | 3-8 |
| Braking mode | Electromagnetic | |
| Drive motor power | kw | 1.6 |
| Increase motor power | kw | 2.2 |
| Battery voltage/capacity | V/Ah | 24/210 |
| Weight of battery | kg | 190 |
| Control mode | Mosfet control | |
| Vehicle Noise | dB(A) | ≤70 |
