QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    5000KG,6000KG,7000KG

  • Operating Weight

    8380KG,8850KG,9600KG

  • Voltage Platform

    326.4V

DESCRIPTIONS

ATLAPEX CPD-GW series 5-7t high-voltage electric counterweight forklift adopts 326.4V automotive-grade voltage platform and permanent magnet synchronous motor technology, delivering powerful performance that exceeds "Double 20". It features rapid charging, maintenance-free operation, IP67 high protection level, ultra-long 5-year/10,000-hour warranty and intelligent temperature control system, adapting to harsh working conditions such as low/high temperature, dust and rain. With reinforced mast, high-strength cast steel axle, advanced ergonomic layout and OPS power-off protection, it achieves zero emission, high safety and comfort, and can fully replace internal combustion forklifts for various medium and heavy-duty outdoor operations.

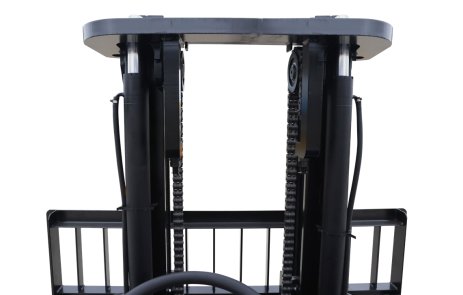

1

The new-generation wide-view mast with concealed rubber-wheel pulley design provides a broader forward vision. Made of reinforced C-channel steel, it offers a sturdier structure and higher load capacity. The optimized pulley design automatically reduces noise and eliminates rigid impacts during lifting, protecting both cargo and enhancing operational comfort.

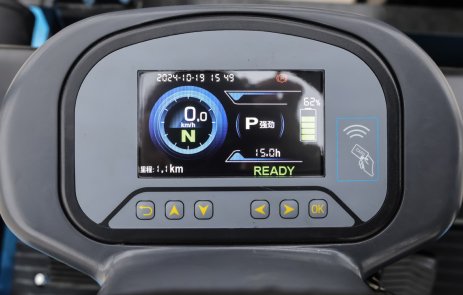

2

The CAN bus enables cloud-based monitoring of power batteries, motors, and electronic control components. It detects faults such as leakage, overloading, and fire, restricts vehicle operations, and provides fault alerts via the display for enhanced safety and reliability.

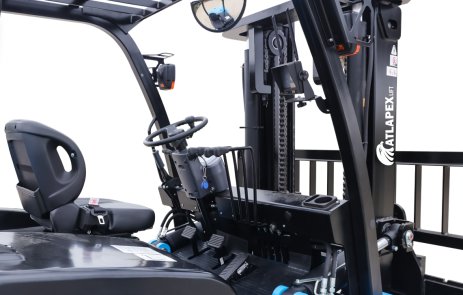

3

The low-position tilt steering gear and adjustable steering wheel ensure effortless steering. The anti-slip pedals and telescopic enlarged handles guarantee safe and reliable entry. Dual USB fast-charging ports are standard, allowing convenient on-the-go charging for mobile devices for a smart and enjoyable experience.

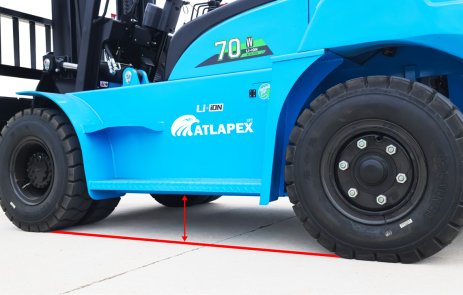

4

Featuring an internal combustion-style body, it boasts a robust structure, high overload capacity, and smoother operation. With a higher ground clearance, it delivers superior off-road performance.

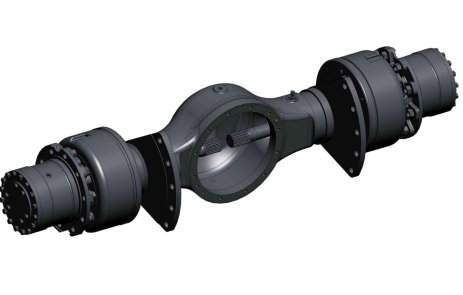

5

The axle housing is manufactured using cast steel technology, resulting in a stronger structure and higher load-bearing capacity. Equipped with dual front wheels as standard, it enables higher load capacity and more stable operation.

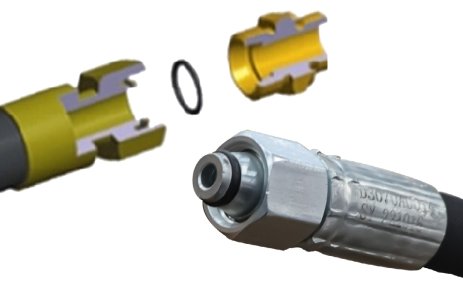

6

Equipped with load-sensing and dual-pump confluence hydraulic system, it features priority steering, light operation and low energy consumption. The whole vehicle's hydraulic pipelines adopt 24° cone + O-ring sealing, which ensures more reliable sealing and reduces oil leakage faults.

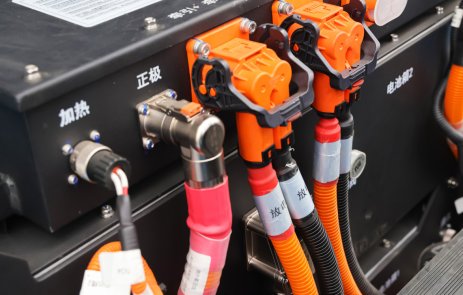

7

The special high-voltage orange cables comply with new energy vehicle standards, with multi-layer protection, wear resistance and high visibility. The power battery is equipped with an external MSD maintenance switch, which is easy to operate and effectively prevents live misoperation.

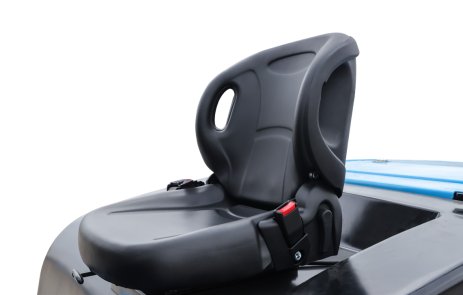

8

The semi-enclosed national standard luxury seat is standard, with good shock absorption performance for more comfortable driving and riding; the seat is equipped with sensing function, which automatically cuts off the mast lifting and traveling functions when leaving the seat, making driving and riding safer.

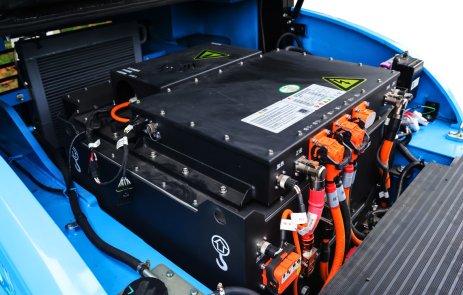

9

Adopts 326.4V high-voltage lithium battery and high-voltage fast charging technology to meet the needs of continuous operation; it can share the national standard charging pile for automobiles, making charging more economical and convenient.

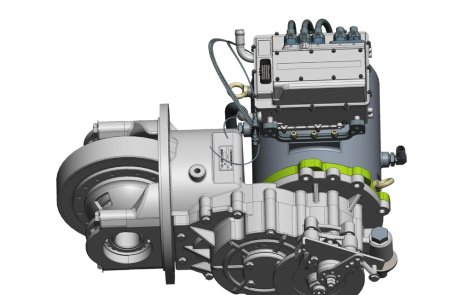

10

The high-speed permanent magnet synchronous motor is matched with a large speed ratio reducer, featuring large torque, fast lifting and traveling speed. It can easily handle various working conditions such as long-distance and large-slope transportation, with working capacity and efficiency comparable to internal combustion forklifts.

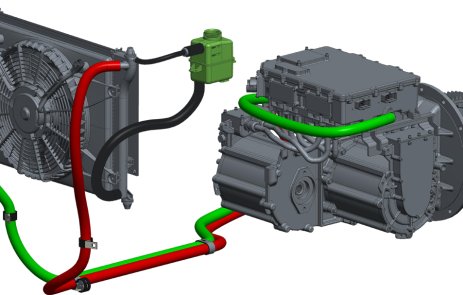

11

The whole vehicle is equipped with water-cooled heat dissipation, hydraulic oil air-cooled heat dissipation and stack electric heating modules, ensuring the whole machine always works in the optimal state to meet low and high temperature operation requirements. Charging: -30℃-60℃, Discharging: -30℃-65℃.

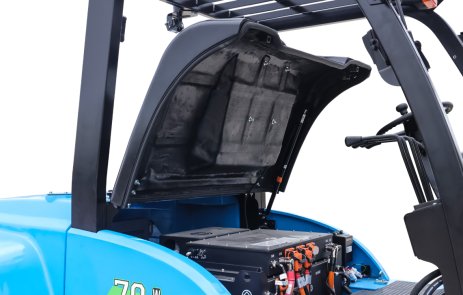

12

The layout inside the engine compartment is optimized. The battery, oil pump motor, electrical components and hydraulic oil tank are all placed in the compartment. The hood has a large opening angle, making daily maintenance more convenient.

TECHNICAL PARAMETERS

Model
CPD-GW50CPD-GW60CPD-GW70
Power Type
ElectricElectricElectric
Voltage PlatformV326.4V326.4V326.4V
Operation Type
SeatedSeatedSeated
Rated Load Capacitykg5000 6000 7000
Rated Load Center Distancemm600 600 600
Front Overhangmm585 585 590
Rear Overhangmm640 640 740
Wheelbasemm2250 2250 2250
Weight (with/without battery)kg8380/77608850/82309600/8980
Axle Load (Full Load, Front/Rear)kg11620/176013250/160014770/1890
Axle Load (No Load, Front/Rear)kg3910/44703875/49753720/5880
Tire Type
Pneumatic TiresPneumatic TiresPneumatic Tires
Number of Wheels (x = drive wheels)
4x/24x/24x/2
Front Tire Specification
8.25-15-14PR8.25-15-14PR8.25-15-14PR
Rear Tire Specification
8.25-15-14PR8.25-15-14PR8.25-15-14PR
Front Trackmm1470 1470 1470
Rear Trackmm1710 1710 1710
Mast Tilt Angle (Forward/Backward)
6-126-126-12
Mast Retracted Heightmm2490 2490 2490
Free Lift Heightmm195 195 195
Maximum Lift Heightmm3000 3000 3000
Maximum Height During Operationmm4430 4430 4430
Overhead Guard Heightmm2450 2450 2450
Body Length (to Fork Vertical Surface)mm3475 3475 3580
Body Widthmm2000 2000 2000
Fork Dimensions (Thickness × Width × Length)mm1220×150×601220×150×601220×150×65
Outside Distance Between Forks (Min/Max)mm310-1845310-1845310-1845
Mast Ground Clearance (Full Load)mm190 190 190
Minimum Frame Ground Clearancemm215 215 215
Minimum Turning Radiusmm3430 3430 3530
Maximum Travel Speed (Full Load/No Load)km/h23/2423/2423/24
Maximum Lifting Speed (Full Load/No Load)mm/s400/440400/440400/440
Lowering Speed (Full Load/No Load)mm/s540/500540/500540/500
Maximum Drawbar Pull (Full Load/No Load)N55000 55000 55000
Gradeability (Full Load/No Load)%30/2530/2528/25
Service Brake (Mechanical, Electronic, Hydraulic)
HydraulicHydraulicHydraulic
Parking Brake (Mechanical, Electronic, Hydraulic)
MechanicalMechanicalMechanical
Traction Motor Rated Power, S2 60min Duty CyclekW58 58 58
Oil Pump Motor Rated Power, S3 15min Duty CyclekW56.9 56.9 56.9
Motor Type \ Protection Class
Permanent Magnet Synchronous\IP67Permanent Magnet Synchronous\IP67Permanent Magnet Synchronous\IP67
Battery Type
Lithium BatteryLithium BatteryLithium Battery
Standard Battery Voltage/CapacityV/Ah326.4/150(202/250)326.4/150(202/250)326.4/150(202/250)
Standard Battery Weightkg620 620 620
Battery Heating Method \ Protection Class
Low-temperature electric heating\IP67Low-temperature electric heating\IP67Low-temperature electric heating\IP67
MCU Motor Controller Type
MOSFET/ACMOSFET/ACMOSFET/AC
MCU Motor Controller Manufacturer
HaiTianHaiTianHaiTian
Hydraulic System Working PressureMpa21.6 21.6 21.6
